| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | 35-1,000 Hz |
| Resonant frequency (fs) | 34.8 Hz |
| Power rating (RMS) | 1,200 W |
| Peak music power output (MAX) | 2,400 W |
| SPL | 97 dB/W/m |

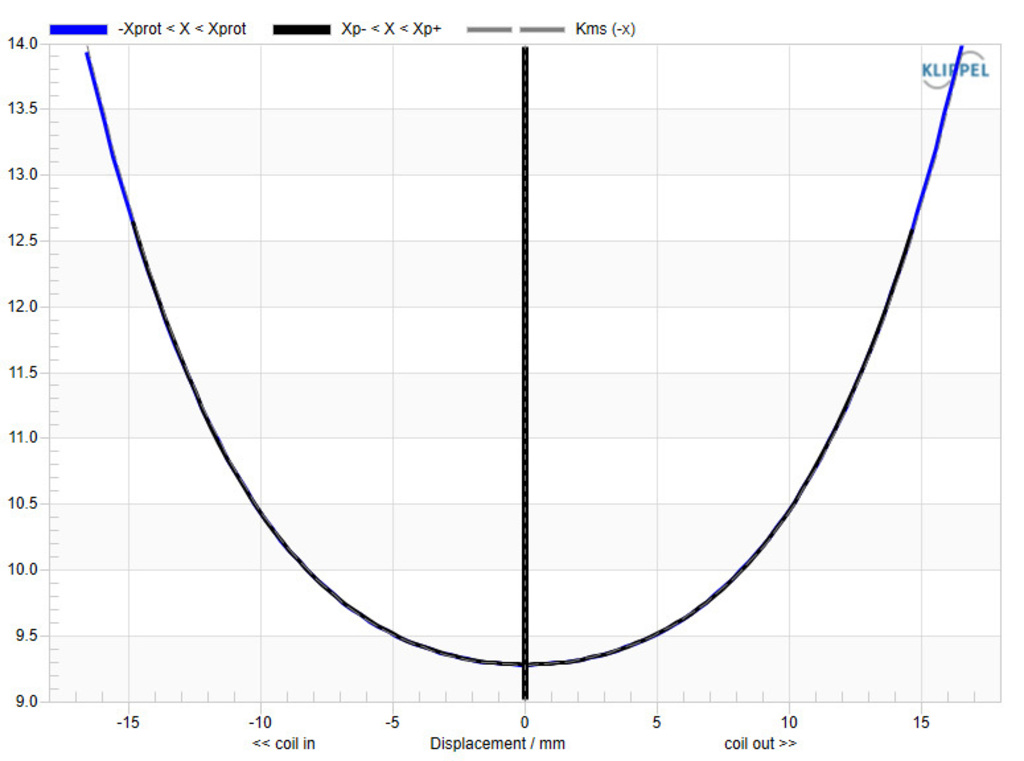

| Suspension compl. (Cms) | 0.091 mm/N |
| Moving mass (Mms) | 229.985 g |
| Mech. Q factor (Qms) | 3.147 |
| Electr. Q factor (Qes) | 0.431 |
| Total Q factor (Qts) | 0.379 |
| Equivalent volume (Vas) | 189.0 l |
| DC resistance (Re) | 5.1 Ω |

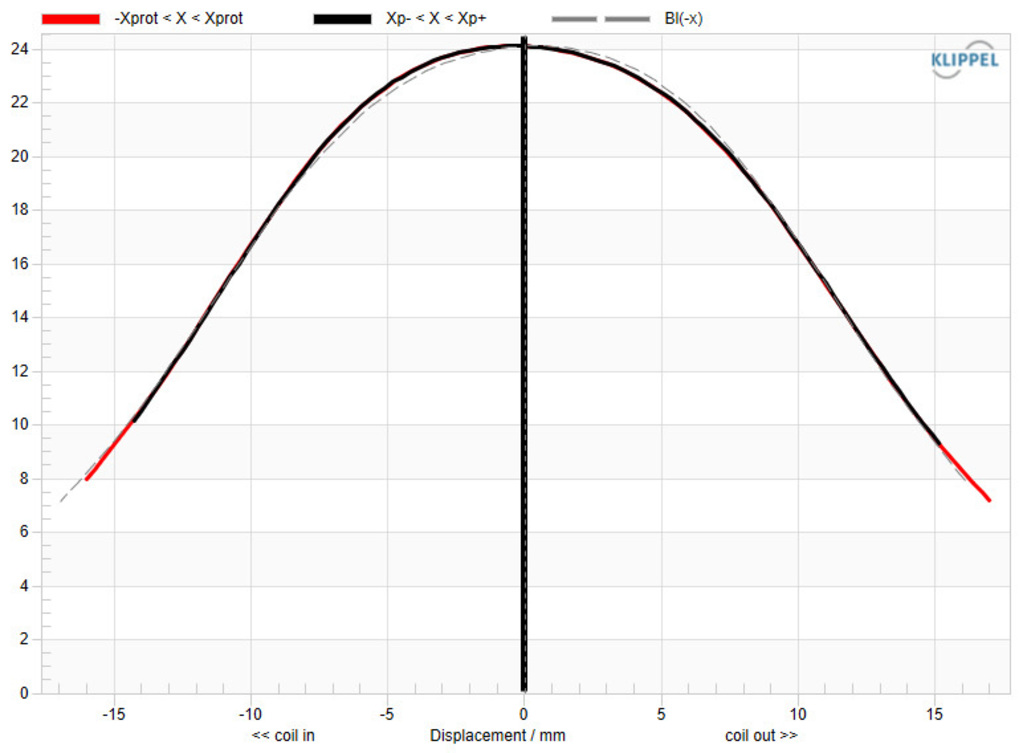

| Force factor (BxL) | 24.38 Tm |
| Voice coil induct. (Le) | 1.61 mH |
| Voice coil diameter | Ø 100 mm |
| Voice coil winding height | 25 mm |
| Voice coil material | copper wire |
| Voice coil former | glass fibre |
| Linear excursion (XMAX) | ± 9.6 mm |
| Eff. cone area (Sd) | 1,210 cm2 |
| Magnet weight | 3.5 kg |
| Mounting cutout | Ø 414 mm |
| Mounting depth | 225 mm |
| Mounting hole diameter | Ø 441-432 mm |
| Dimensions | Ø 460 mm x 225 mm |
| Outside diameter | Ø 460 mm |
| Width | Ø 460 mm |
| Height | Ø 460 mm |
| Depth | 225 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 13 kg |
| Packing unit | 1 |
| Type of speaker | 18" |
| Packaging dimensions (W x H x L) | 0.49 x 0.27 x 0.49 m |
| Gross weight | 15 kg |
| Net weight | 13 kg |
| EAN code | 739894660556 |
| Net weight | 13 kg |
