Order no.: 0254310

PSUB-12AKA

Order no.: 0254310

PSUB-12AKA

The high-performance subwoofers of compact size with integrated 2.1 active modules are suitable for a wide range of applications. They are the basis for setting up a small or medium-sized compact PA system without the need for transporting additional amplifier systems. The microphone and line inputs can be mixed and the crossover frequency of the subwoofer to the passive satellite speakers can be adjusted over a wide range. The mixed signal can then be passed on to further systems via stereo pre out. Active 2.1 PA subwoofer, 1,200 W Active bass-reflex subwoofer system with wooden cabinet Integrated 2.1. active module Power rating: SUB: 500 W, SAT: 2 x 150 W 30 cm (12") bass speaker of high power capability and long excursion Stereo line + mic input with gain control Adjustable crossover frequency: 80-250 Hz 2-way tone control for bass and treble, balance Integrated limiter, clipping display High-quality workmanship, incorporated carrying handles Metal front grille, stand sleeve, rubber feet tastenwelt 03/2013 “The small active system (PSUB-12AKA and 2 x PAB-306/SW) can be used for general applications, suitable for entertainers, smaller DJ events or piano bars. Beside its transparent sound, the system impresses by a good workmanship and its features.”+ Good price-performance ratio tools4music 01/2014 “Provides a highly appealing sound. The PSUB-12AKA delivers a performance which perfectly matches the top parts of the MOVE-06. Very compact size yet of a high power capability with a well-tuned sound. In a word: enjoyable!”

About

The high-performance subwoofers of compact size with integrated 2.1 active modules are suitable for a wide range of applications.
They are the basis for setting up a small or medium-sized compact PA system without the need for transporting additional amplifier systems. The microphone and line inputs can be mixed and the crossover frequency of the subwoofer to the passive satellite speakers can be adjusted over a wide range. The mixed signal can then be passed on to further systems via stereo pre out.
Active 2.1 PA subwoofer, 1,200 W
  • Active bass-reflex subwoofer system with wooden cabinet
  • Integrated 2.1. active module
  • Power rating: SUB: 500 W, SAT: 2 x 150 W
  • 30 cm (12") bass speaker of high power capability and long excursion

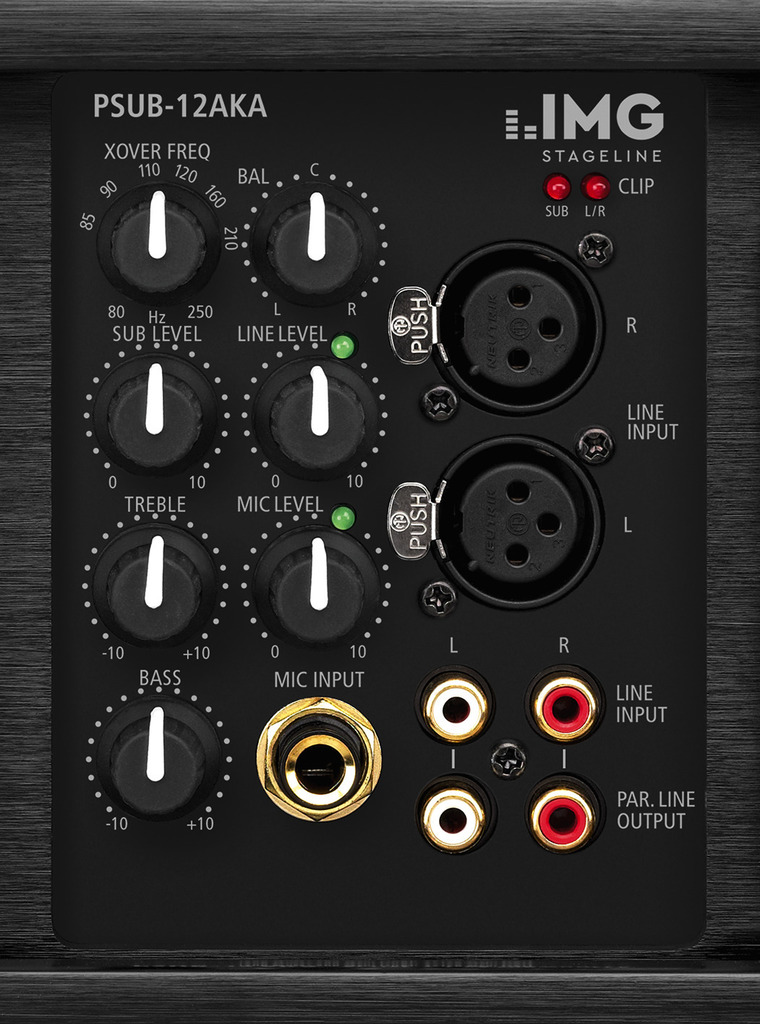

  • Stereo line + mic input with gain control
  • Adjustable crossover frequency: 80-250 Hz
  • 2-way tone control for bass and treble, balance
  • Integrated limiter, clipping display
  • High-quality workmanship, incorporated carrying handles

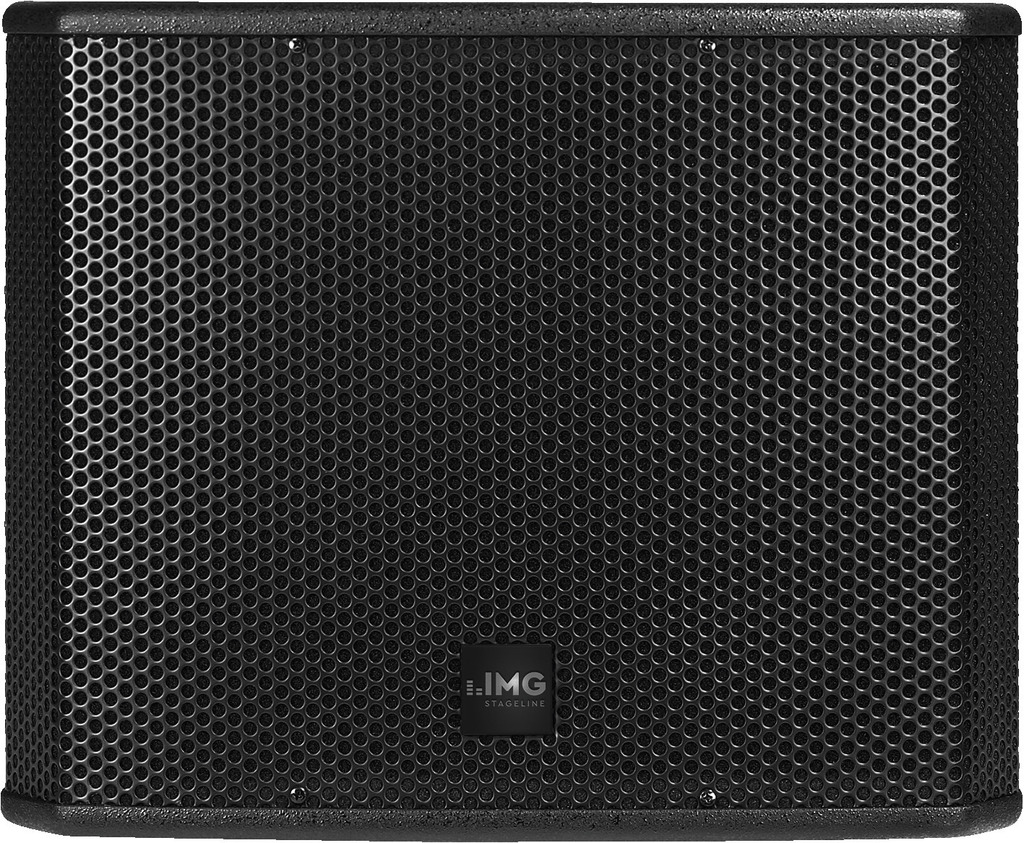

  • Metal front grille, stand sleeve, rubber feet
tastenwelt 03/2013

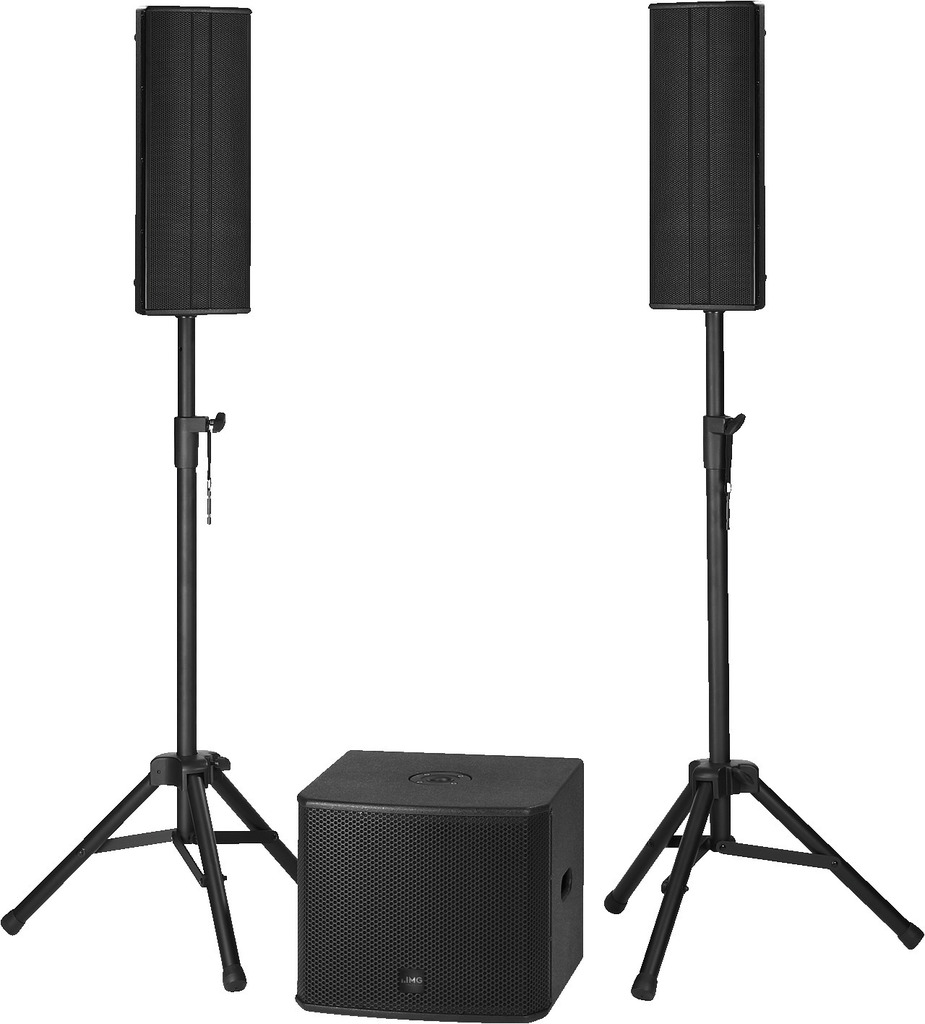

“The small active system (PSUB-12AKA and 2 x PAB-306/SW) can be used for general applications, suitable for entertainers, smaller DJ events or piano bars. Beside its transparent sound, the system impresses by a good workmanship and its features.”
+ Good price-performance ratio
tools4music 01/2014
“Provides a highly appealing sound. The PSUB-12AKA delivers a performance which perfectly matches the top parts of the MOVE-06. Very compact size yet of a high power capability with a well-tuned sound. In a word: enjoyable!”

Specifications

Active/passive active
Transmission technology cable
Total output power 1,200 W
Power rating (RMS) 500 W (SUB),

2 x 150 W (SAT)

Frequency range 30-250 Hz
S/N ratio > 74 dB
Input signal 880 mV-7 V (line)

30 mV (mic)

System bass-reflex
Bass speaker 30 cm (12") bass speaker
Number of speakers 1
Speaker size 30 cm (12")
Max. rated SPL 123 dB
Housing material wood
Colour black

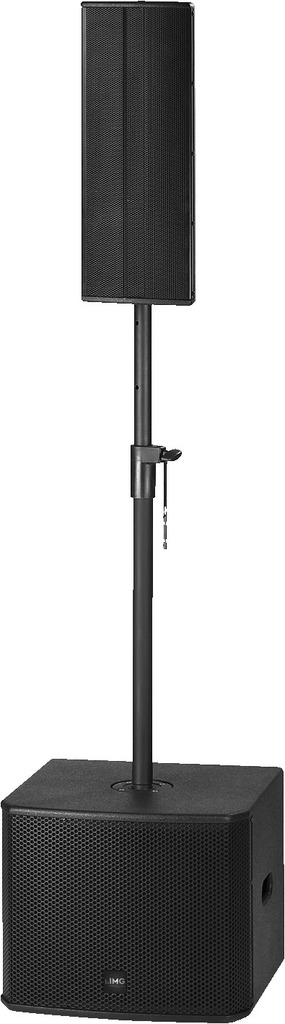

Mounting device stand sleeve
Admiss. ambient temp. 0-40 °C
Power supply ˜ 230 V/50 Hz/1,870 VA
Dimensions 460 x 380 x 455 mm
Width 460 mm
Height 380 mm
Depth 455 mm
Weight 28 kg

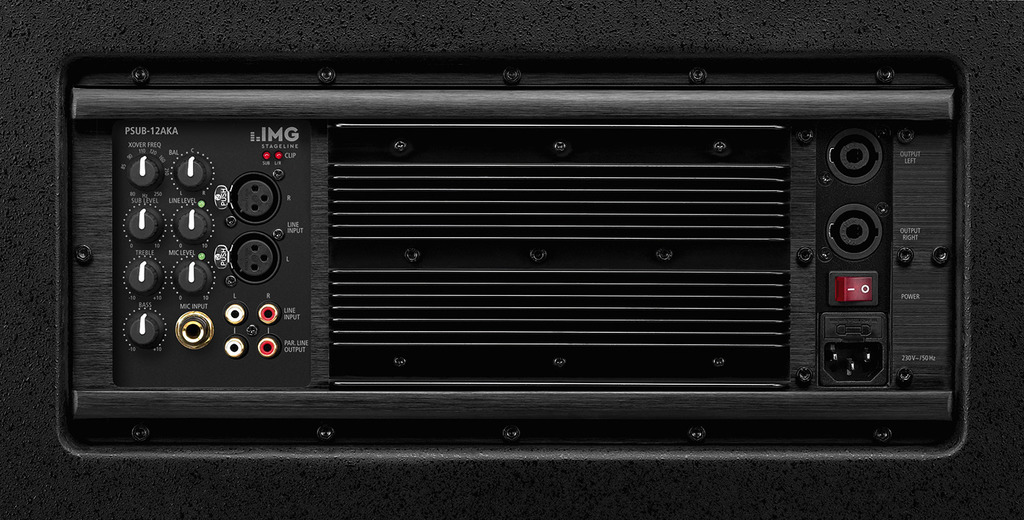

Inputs XLR L/R, bal.

RCA L/R, unbal.

6.3 mm jack, unbal.

Outputs RCA L/R

NEUTRIK SPEAKON L/R (sat > 150 Hz)

Packing dimensions (W x H x L) 0.58 x 0.5 x 0.58 m
Gross weight 32.98 kg
Net weight 28.33 kg
