Order no.: 0259400

R-4/5

Order no.: 0259400

R-4/5

4-channel diversity UHF PLL wideband receiver Bandwidth: 36 MHz 6 groups, each with up to 22 compatible preset channels 1,441 selectable individual frequencies RF output and mains voltage output for easily cascading up to 10 x R-4/5 receiver without additional splitter REMOSET technology for receiver/transmitter synchronisation Auto-scan function Pilot tone squelch and noise mute LED for indicating RF level and AF level Backlit display for indicating battery status of the transmitter, frequency setup, active antenna XLR output per channel, bal. XLR output and 6.3 mm output for mixed signal Switchable mic/line for single outputs and mixed outputs Metal housing There are restrictions or requirements within the EU! Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”! tools4music 02/2019 “The wireless 4-channel diversity UHF system from JTS is a special highlight in MONACOR INTERNATIONAL's portfolio. If you are not fixated on big brands, you should definitely take a closer look at this system and listen to it. Many small but significant features of this system certainly indicate that JTS is also aiming at professionals.” + highly practical features+ sound+ excellent workmanship How many wireless systems can be operated simultaneously? With optimum local conditions, it is possible to operate 18 wireless systems R-4/5, R-4THA/5, JSS-4B/5, R-4TBM/5 simultaneously.

continue

About

4-channel diversity UHF PLL wideband receiver

Bandwidth: 36 MHz
6 groups, each with up to 22 compatible preset channels
1,441 selectable individual frequencies
RF output and mains voltage output for easily cascading up to 10 x R-4/5 receiver without additional splitter
REMOSET technology for receiver/transmitter synchronisation
Auto-scan function
Pilot tone squelch and noise mute
LED for indicating RF level and AF level
Backlit display for indicating battery status of the transmitter, frequency setup, active antenna
XLR output per channel, bal.
XLR output and 6.3 mm output for mixed signal
Switchable mic/line for single outputs and mixed outputs
Metal housing

There are restrictions or requirements within the EU!

Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!

tools4music 02/2019

“The wireless 4-channel diversity UHF system from JTS is a special highlight in MONACOR INTERNATIONAL's portfolio. If you are not fixated on big brands, you should definitely take a closer look at this system and listen to it. Many small but significant features of this system certainly indicate that JTS is also aiming at professionals.”

+ highly practical features
+ sound
+ excellent workmanship

How many wireless systems can be operated simultaneously?

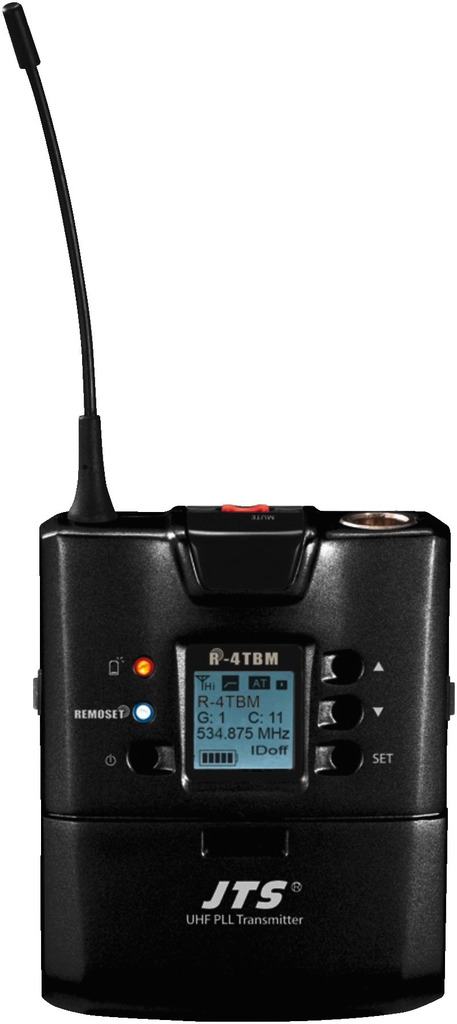

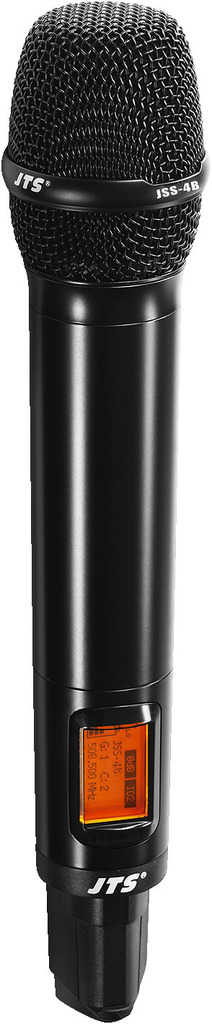

With optimum local conditions, it is possible to operate 18 wireless systems R-4/5, R-4THA/5, JSS-4B/5, R-4TBM/5 simultaneously.

Specifications

Description	wireless receiver
Carrier frequency range	506-542 MHz
Audio frequency range	50-18,000 Hz
Channels	4
THD	< 0.6%
Dynamic range	> 105 dB
Admiss. ambient temp.	0-40 °C
Audio signal receiver	630 mV/600 Ω XLR (line), 63 mV/600 Ω XLR (mic), 320 mV/600 Ω jack
Power supply receiver	˜ 100-240 V/50-60 Hz
Width receiver	485 mm
Height receiver	44 mm
Depth receiver	230 mm
Weight receiver	2.65 kg
Connections receiver	4 x XLR, bal., 1 x XLR, bal.,1 x 6.3 mm jack (mixed out)
