Order no.: 0013210

RBT-56

P410

Order no.: 0013210

RBT-56

Hi-fi ribbon tweeter, 10 W, 4 Ω

Magnetostatic tweeter of compact size
Neodymium magnet system
Fine and brilliant reproduction of the high frequencies
Round cone with Kapton and aluminium film
For use from 5,000 Hz on
Plastic sound diffuser panel (front)

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Hi-fi ribbon tweeter, 10 W, 4 Ω

Magnetostatic tweeter of compact size
Neodymium magnet system
Fine and brilliant reproduction of the high frequencies
Round cone with Kapton and aluminium film
For use from 5,000 Hz on
Plastic sound diffuser panel (front)

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	4 Ω
Transmission technology	cable

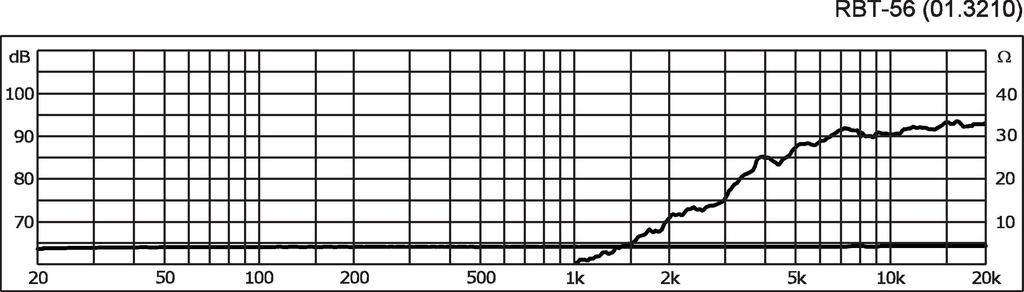

Frequency range	5,000-40,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	5,000 Hz
Power rating (RMS)	10 W
Peak music power output (MAX)	20 W
SPL	90 dB/W/m
DC resistance (Re)	3.5 Ω
Magnet diameter	magnetostatic speaker

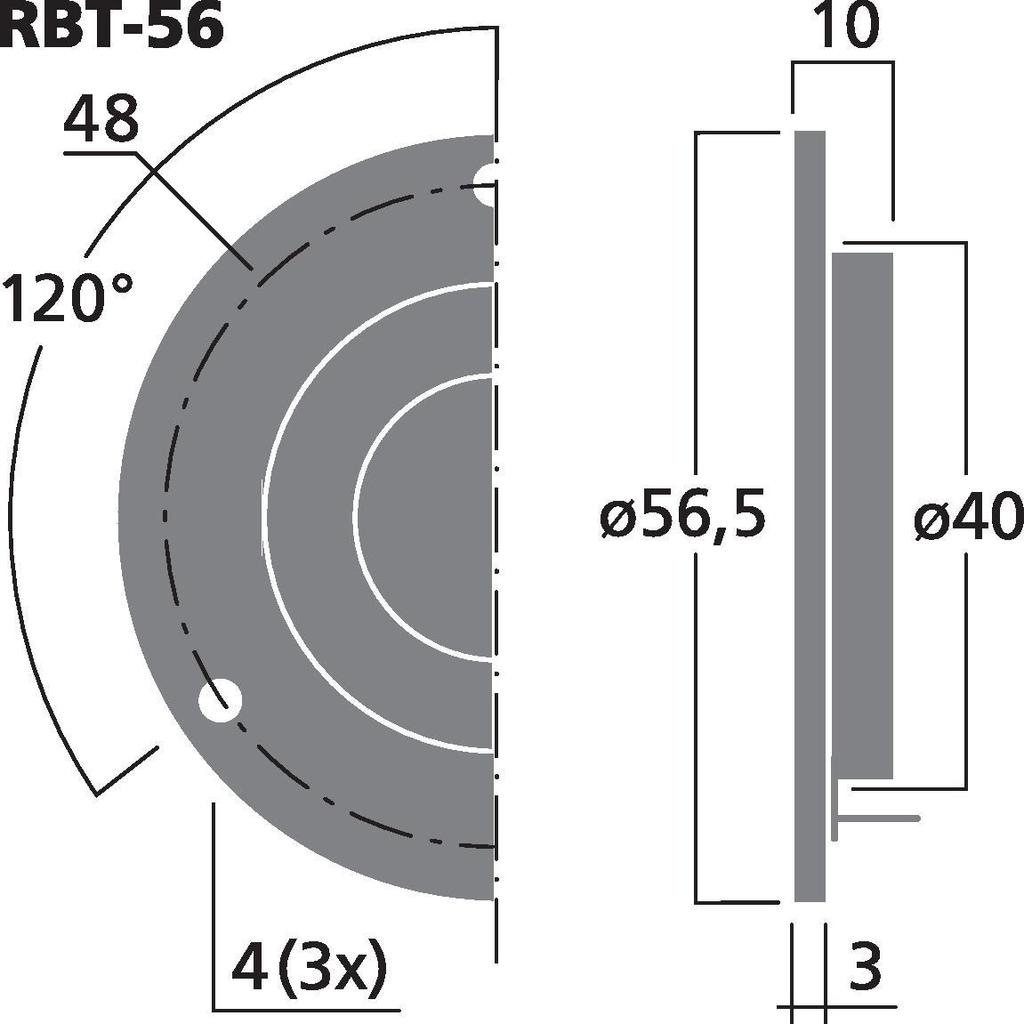

Mounting cutout	Ø 40 mm
Mounting depth	10 mm
Mounting hole diameter	Ø 48 mm
Dimensions	56.5 mm
Outside diameter	Ø 56.5 mm
Width	Ø 56.5 mm
Height	Ø 56.5 mm
Depth	10 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	0.035 kg
Packing unit	1
Packaging dimensions (W x H x L)	0.065 x 0.015 x 0.075 m
Gross weight	0.045 kg
Net weight	0.035 kg

EAN code	4007754250275
Net weight	0.035 kg
