Order no.: 0102250

RBT-95

Order no.: 0102250

RBT-95

Ribbon tweeter, 30 W, 8 Ω Magnetostatic speakers of a high efficiency Perfectly fine dynamic reproduction of the high frequencies and the brilliance frequency range Power capability of the system can considerably be increased by voltage dividers and maybe higher crossover frequencies (level attenuations which take tweeters to the level of normal hi-fi systems) Very light sound of low distortion which particularly improves the stereophony in applications from 5 kHz on By adding a super tweeter above 8-10 kHz, e.g. even high-quality full range systems can be further improved

continue

About

Ribbon tweeter, 30 W, 8 Ω

Magnetostatic speakers of a high efficiency
Perfectly fine dynamic reproduction of the high frequencies and the brilliance frequency range
Power capability of the system can considerably be increased by voltage dividers and maybe higher crossover frequencies (level attenuations which take tweeters to the level of normal hi-fi systems)
Very light sound of low distortion which particularly improves the stereophony in applications from 5 kHz on
By adding a super tweeter above 8-10 kHz, e.g. even high-quality full range systems can be further improved

Specifications

Impedance (Z)	8 Ω

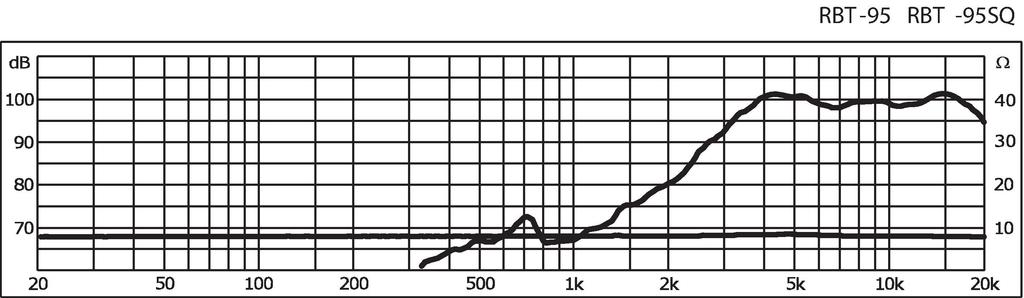

Frequency range	fx-22,000 Hz
Resonant frequency (fs)	4,500 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.)	5,000 Hz
Power rating (RMS)	30 W
Peak music power output (MAX)	60 W
SPL	98 dB/W/m
Magnet diameter	magnetostatic speaker

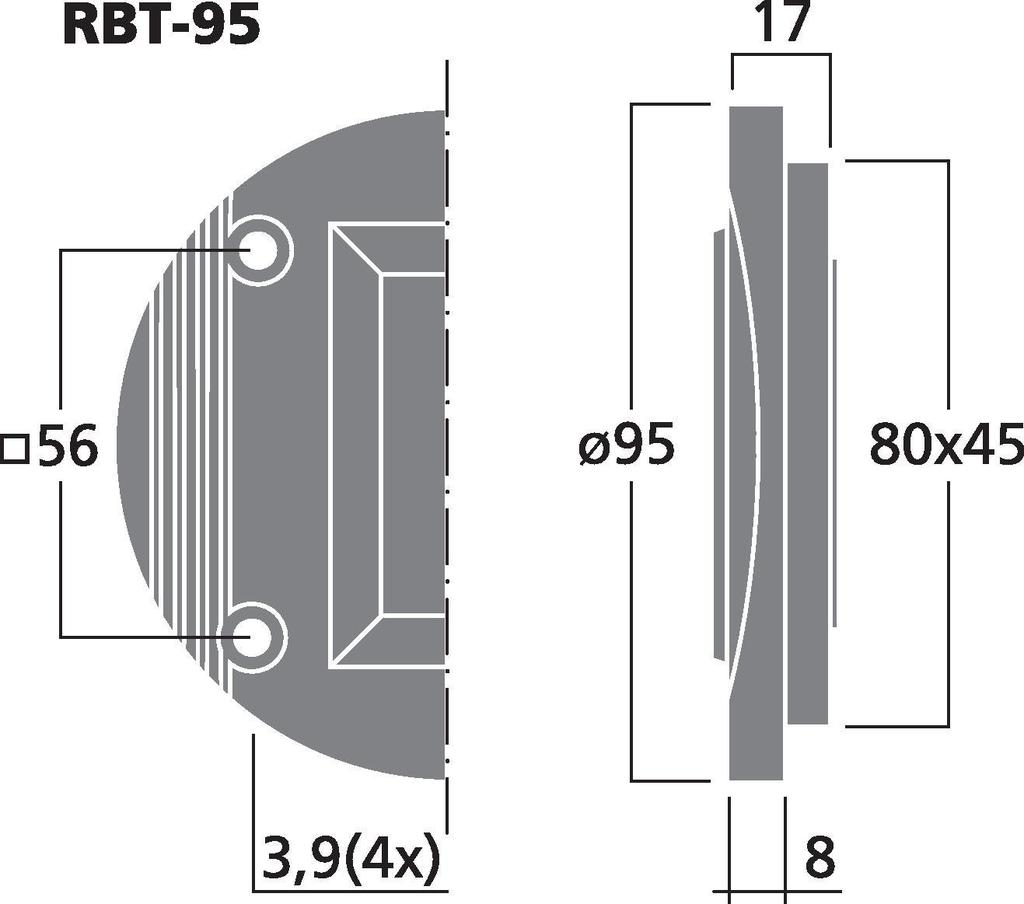

Mounting cutout	80 x 45 mm
Mounting depth	17 mm
Hole spacing X-axis	56 mm
Hole spacing Y-axis	56 mm
Dimensions	Ø 95 x 17 mm
Outside diameter	Ø 95 mm
Width	Ø 95 mm
Depth	17 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	0.11 kg
Packing unit	1
Packing dimensions (W x H x L)	0.105 x 0.045 x 0.105 m
Gross weight	0.141 kg
Net weight	0.11 kg
