Order no.: 1001172

RDA20

P910 P1557 P_DANTE P1544 P10
Order no.: 1001172

RDA20

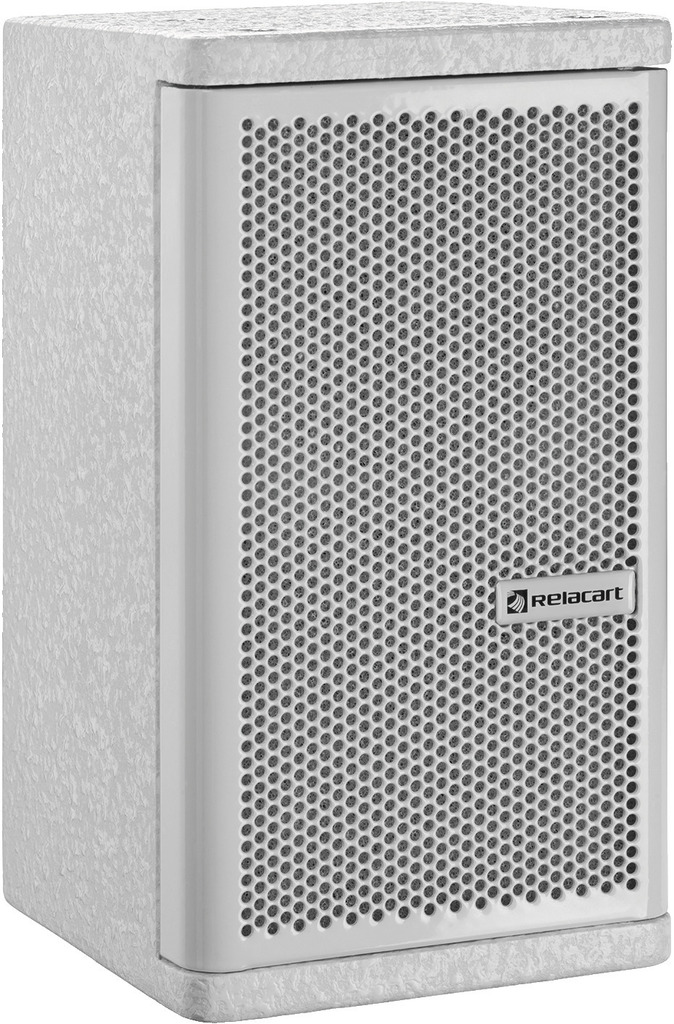

Active speaker with integrated Dante® module
  • Self-amplified speaker system, addressable via Dante® audio network
  • Supports PoE/PoE+ Ethernet audio connection and power supply via RJ45 connection
  • Output power: 10 W with PoE, 20 W with PoE+
  • Supplied with 2 wall brackets
  • Automatic assignment of an IP address via DHCP router
  • Relacart speaker management software for easy setup and remote management

System requirements Dante®: Windows 7/8.1/10/11 or MacOS 10.9.5/10.10.5/10.11

The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd
Please note: RELACART products are distributed by MONACOR INTERNATIONAL exclusively in the following countries: Germany, Austria, Switzerland, Netherlands, Belgium, Luxembourg, Denmark, Portugal, Malta. Orders from other countries cannot be fulfilled.
Manufacturer information:
Relacart Electronics Co., Ltd.
1408 Room, B Building
Fengxing Plaza
No. 242, Tianhe Road
Tianhe District
Guangzhou, Guangdong
China
info@relacart.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never adjust the speakers to a very high volume. Permanent high volumes may damage your hearing!
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
continue

About

Active speaker with integrated Dante® module
  • Self-amplified speaker system, addressable via Dante® audio network
  • Supports PoE/PoE+ Ethernet audio connection and power supply via RJ45 connection
  • Output power: 10 W with PoE, 20 W with PoE+
  • Supplied with 2 wall brackets
  • Automatic assignment of an IP address via DHCP router
  • Relacart speaker management software for easy setup and remote management

System requirements Dante®: Windows 7/8.1/10/11 or MacOS 10.9.5/10.10.5/10.11

The brand Dante® as well as the Dante® software which may have been integrated into these products are licenced by Audinate Pty Ltd
Please note: RELACART products are distributed by MONACOR INTERNATIONAL exclusively in the following countries: Germany, Austria, Switzerland, Netherlands, Belgium, Luxembourg, Denmark, Portugal, Malta. Orders from other countries cannot be fulfilled.
Manufacturer information:
Relacart Electronics Co., Ltd.
1408 Room, B Building
Fengxing Plaza
No. 242, Tianhe Road
Tianhe District
Guangzhou, Guangdong
China
info@relacart.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never adjust the speakers to a very high volume. Permanent high volumes may damage your hearing!
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Specifications

Active/passive active
Transmission technology Dante ®
Total output power 30 W
Power rating (RMS) 10 W (PoE), 20 W (PoE+)
Frequency range 85-17,000 Hz
System 2-way
Bass speaker 10 cm (4") cone speaker
Tweeter 7.6 cm (3") cone tweeter
Number of speakers 2
Speaker size 10 cm (4")
SPL 96 dB/W/m
Max. rated SPL 110 dB
Radiation angle/beam angle 90°
Radiation angle, horizontal 90°
Radiation angle, vertical 90°
Housing material wood, protective metal grille
Colour white
Mounting device wall bracket
Power supply 37-57 V PoE/PoE+ via RJ45
Dimensions 132 x 235 x 142 mm
Width 132 mm
Height 235 mm
Depth 142 mm
Weight 2.36 kg
Inputs 1 x RJ45 (Dante® IN)
Other features integr. DSP for tone control via software
Packaging dimensions (W x H x L) 0.205 x 0.33 x 0.215 m
Gross weight 2.95 kg
Net weight 2.36 kg
EAN code 4007754426700
Net weight 2.36 kg
