Order no.: 0259560

RU-850LTH/5

Order no.: 0259560

RU-850LTH/5

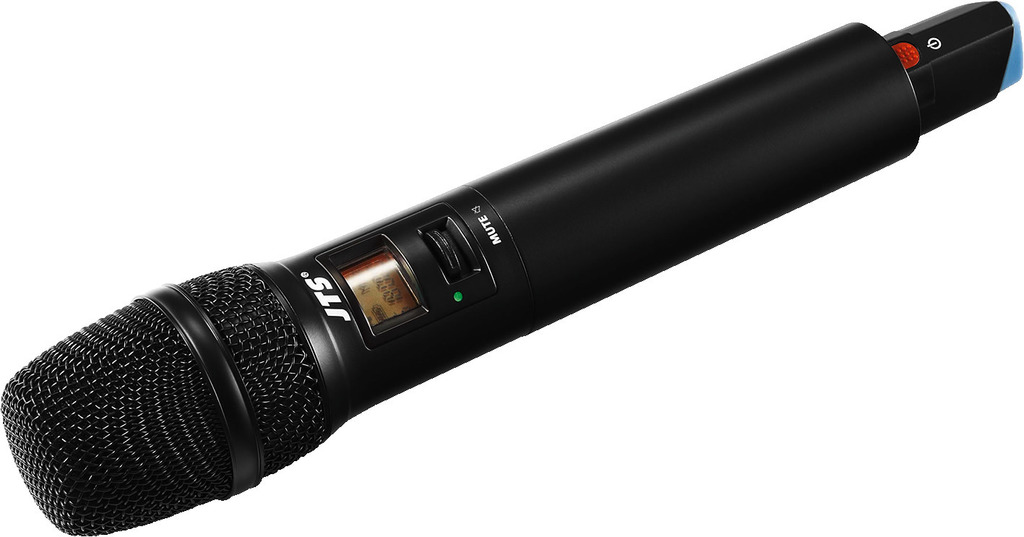

Dynamic hand-held UHF PLL microphone transmitter
  • Bandwidth: 36 MHz
  • 6 groups, each with up to 22 compatible preset channels
  • 1,441 selectable individual frequencies
  • REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
  • Lock function/mute function
  • Special design to reduce handling noise, structure-borne noise and acoustic feedback
  • 5-level display for indicating battery status and low battery alert, backlit LCD
  • Switchable transmitting power

There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.

About

Dynamic hand-held UHF PLL microphone transmitter
  • Bandwidth: 36 MHz
  • 6 groups, each with up to 22 compatible preset channels
  • 1,441 selectable individual frequencies
  • REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
  • Lock function/mute function
  • Special design to reduce handling noise, structure-borne noise and acoustic feedback
  • 5-level display for indicating battery status and low battery alert, backlit LCD
  • Switchable transmitting power

There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!
Manufacturer information:
JTS PROFESSIONAL CO., LTD.
No. 148, Gongye 9th Rd., Dali Dist.
41280 Taichung City
Taiwan
jts@jts.com.tw

EU-Representative:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.

Specifications

Description hand-held microphone
Transmission method wireless
Polar pattern cardioid
System dynamic
Carrier frequency range 506-542 MHz
Transmitting power 10/50 mW
Power supply 2 x batt. AA size,

alkaline (not supplied)

Operating time 30 h
Audio frequency range 50-16,000 Hz
Max. sound pressure 148 dB
Housing material plastic
Admiss. ambient temp. 0-40 °C
Dimensions Ø 51 mm x 269 mm
Weight 242 g
Packaging dimensions (W x H x L) 0.1 x 0.075 x 0.3 m
Gross weight 0.54 kg
Net weight 0.285 kg
EAN code 4007754263107
Net weight 0.285 kg

Accessories for RU-850LTH/5

Order no.: 0259370
Charging station, 2 slots, for RU-850LTH/5, RU-850LTB/5, R-4THA/5
Description:
charging station
Colour:
black
Suitable for:
transmitters RU-850LTH/5, RU-850LTB/5, R-4THA/5
Order no.: 0259370
Charging station, 2 slots, for RU-850LTH/5, RU-850LTB/5, R-4THA/5
General information:
Description:
receiver unit
Carrier frequency range:
506-542 MHz
Order no.: 0259848
Diversity UHF PLL wideband receiver
General information:
Description:
receiver unit
Carrier frequency range:
506-542 MHz
Order no.: 0259200
Diversity UHF PLL wideband receiver
General information:
Description:
receiver unit
Carrier frequency range:
506-542 MHz
Order no.: 0259420
2-channel diversity UHF PLL wideband receiver
