Order no.: 0259844

RU-901G3/5

Order no.: 0259844

RU-901G3/5

True diversity UHF PLL wideband receiver Bandwidth: 36 MHz 6 groups, each with up to 22 compatible preset channels 1,441 selectable individual frequencies REMOSET ULTRASONIC technology for receiver/transmitter synchronisation Removable antennas (BNC connection) Auto-scan Pilot tone squelch and noise mute LED for indicating RF level and AF level Backlit display with status indications, e.g. group/channel, frequency, battery, antenna A/B XLR output (bal.) and 6.3 mm jack output (unbal.) There are restrictions or requirements within the EU! Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!

About

True diversity UHF PLL wideband receiver
  • Bandwidth: 36 MHz
  • 6 groups, each with up to 22 compatible preset channels
  • 1,441 selectable individual frequencies
  • REMOSET ULTRASONIC technology for receiver/transmitter synchronisation
  • Removable antennas (BNC connection)
  • Auto-scan
  • Pilot tone squelch and noise mute
  • LED for indicating RF level and AF level
  • Backlit display with status indications, e.g. group/channel, frequency, battery, antenna A/B
  • XLR output (bal.) and 6.3 mm jack output (unbal.)

There are restrictions or requirements within the EU!
Please read the notes regarding wireless systems in the section “IMPORTANT INFORMATION”!

Specifications

Description receiver unit
Carrier frequency range 506-542 MHz
Audio frequency range 50-18,000 Hz
Channels 1
THD < 0.6%
Dynamic range 105 dB
Admiss. ambient temp. 0-40 °C
Audio signal receiver 630 mV/600 Ω XLR (line),

63 mV/600 Ω XLR (mic),

320 mV/600 Ω jack

Power supply receiver via encl. power supply
Width receiver 212 mm
Height receiver 38 mm
Depth receiver 144 mm
Weight receiver 1.02 kg
Connections receiver 1 x XLR, bal.,

1 x 6.3 mm jack, unbal.

Accessories for RU-901G3/5

Order no.: 0259839

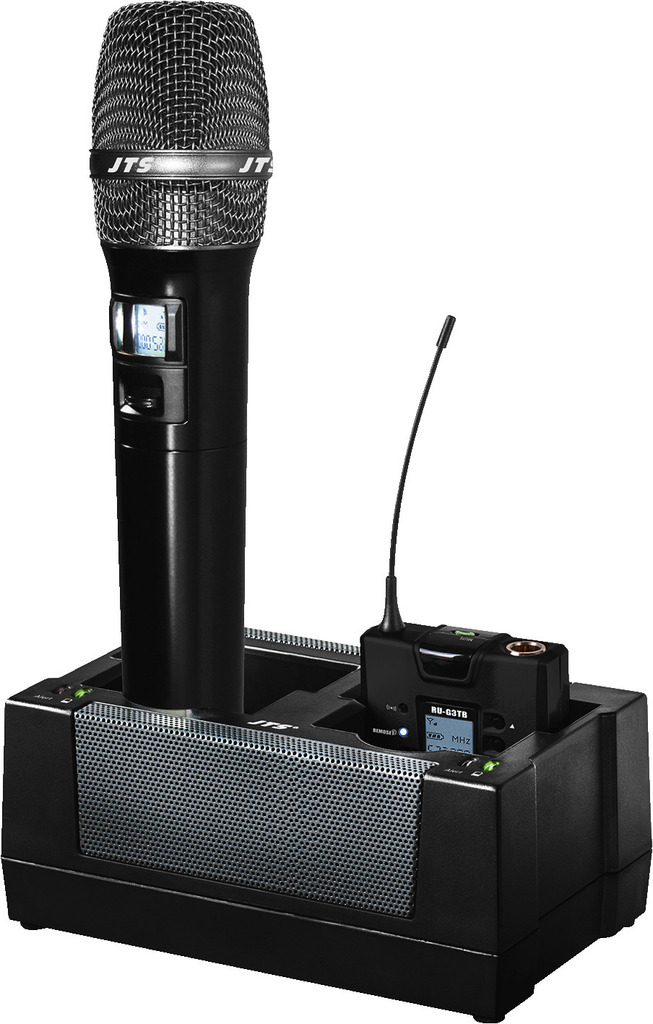

Charging station, 2 slots, for RU-G3TH/5, RU-G3TB/5, R-4TBM/5, UF-20TB...
Order no.: 0259839
Charging station, 2 slots, for RU-G3TH/5, RU-G3TB/5, R-4TBM/5, UF-20TB...
