Order no.: 0254120

SA-100

Order no.: 0254120

SA-100

Compact universal stereo amplifier, 50 W Silent operation due to fanless cooling concept Additional 3.5 mm connection with switchable sensitivity on the front panel USB port on the front panel for power supply and for charging external devices Audio source selector switch Controls for volume, bass and treble 6.3 mm headphone output Robust metal housing

continue

About

Compact universal stereo amplifier, 50 W

Silent operation due to fanless cooling concept
Additional 3.5 mm connection with switchable sensitivity on the front panel
USB port on the front panel for power supply and for charging external devices
Audio source selector switch
Controls for volume, bass and treble
6.3 mm headphone output
Robust metal housing

Specifications

Peak output power	2 x 50 W
Power rating	50 W
Power rating at 4 Ω	2 x 25 W
Power rating at 8 Ω	2 x 20 W
Channels	2
Inputs	140 mV/46 kΩ (PC, CD, aux) 140 mV/12 kΩ, 25 mV/32 kΩ (player)
Frequency range	20-20,000 Hz
Equalizer bass	± 12 dB
Equalizer treble	± 12 dB
S/N ratio	> 70 dB
Power supply	˜ 230 V/50 Hz/150 VA
Mains voltage	~ 230 V
Mains frequency	50 Hz
Power consumption, operation	150 VA
Admiss. ambient temp.	0-40 °C
Width	212 mm
Height	56 mm
Depth	250 mm
Weight	2.6 kg

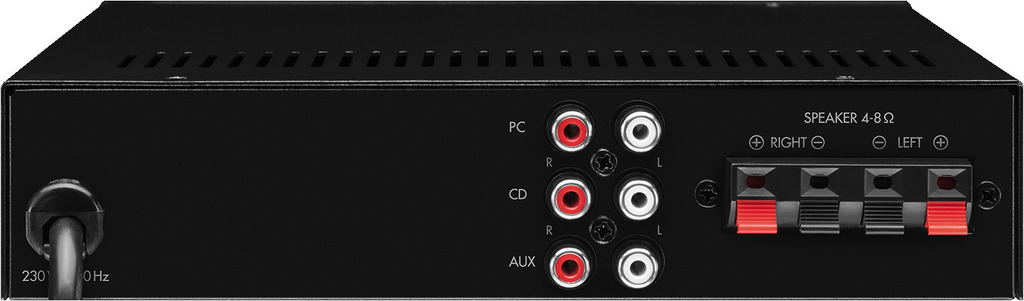

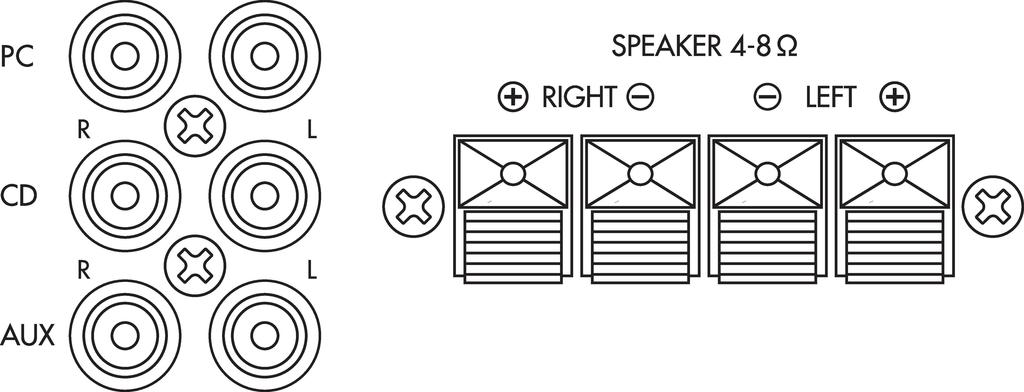

Connections	1 x RCA L/R (PC), 1 x RCA L/R (CD), 1 x RCA L/R (aux), 1 x 3.5 mm jack (player), 4 x spring-load. speaker term. (speakers)
Packing dimensions (W x H x L)	0.315 x 0.105 x 0.315 m
Gross weight	3.11 kg
Net weight	2.6 kg
