Order no.: 0254620

SA-50

Order no.: 0254620

SA-50

Compact universal stereo amplifier, 25 W

Silent operation due to fanless cooling concept
Additional 3.5 mm connection with switchable sensitivity on the front panel
Audio source selector switch
Controls for volume, bass and treble
6.3 mm headphone output
Robust metal housing

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Warning and Safety Instructions

The device is supplied with dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Risk of electric shock!
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.

continue

About

Compact universal stereo amplifier, 25 W

Silent operation due to fanless cooling concept
Additional 3.5 mm connection with switchable sensitivity on the front panel
Audio source selector switch
Controls for volume, bass and treble
6.3 mm headphone output
Robust metal housing

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Warning and Safety Instructions

Specifications

Peak output power	2 x 25 W
Power rating	25 W
Power rating at 4 Ω	2 x 12.5 W
Power rating at 8 Ω	2 x 10 W
Channels	2
Inputs	115 mV/12 kΩ (PC), 115 mV/12 kΩ (CD), 115 mV/12 kΩ (aux), 115 mV/12 kΩ (player, high), 20 mV/32 kΩ (player, low)
Frequency range	20-20,000 Hz
Equalizer bass	± 12 dB
Equalizer treble	± 12 dB
S/N ratio	> 65 dB
Power supply	˜ 230 V/50 Hz/50 VA
Mains voltage	~ 230 V
Mains frequency	50 Hz
Power consumption, operation	50 VA
Admiss. ambient temp.	0-40 °C
Width	212 mm
Height	56 mm
Depth	200 mm
Weight	1.8 kg

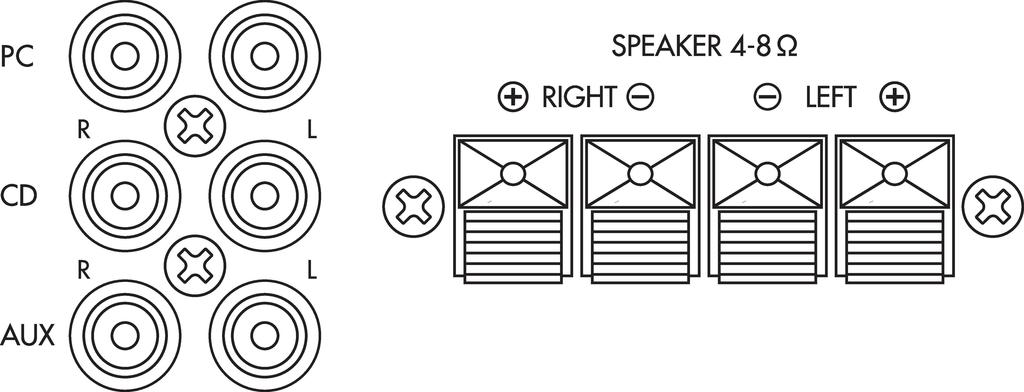

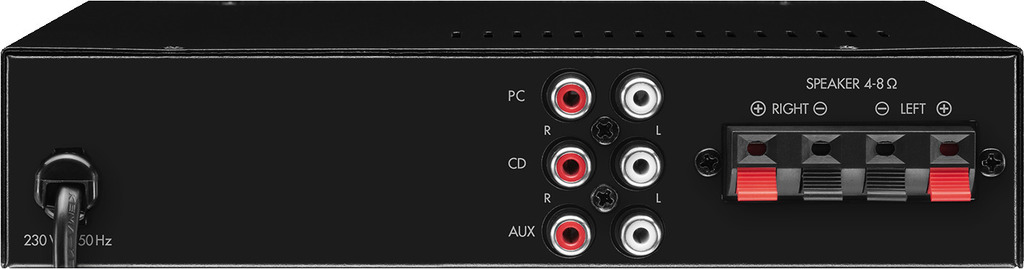

Connections	1 x RCA L/R (PC), 1 x RCA L/R (CD), 1 x RCA L/R (aux), 1 x 3.5 mm jack (player), 4 x spring-load. speaker term. (speakers)
Packaging dimensions (W x H x L)	0.21 x 0.057 x 0.21 m
Gross weight	2.18 kg
Net weight	1.85 kg
