Order no.: 1001270

SK-21

P110

P10

Order no.: 1001270

SK-21

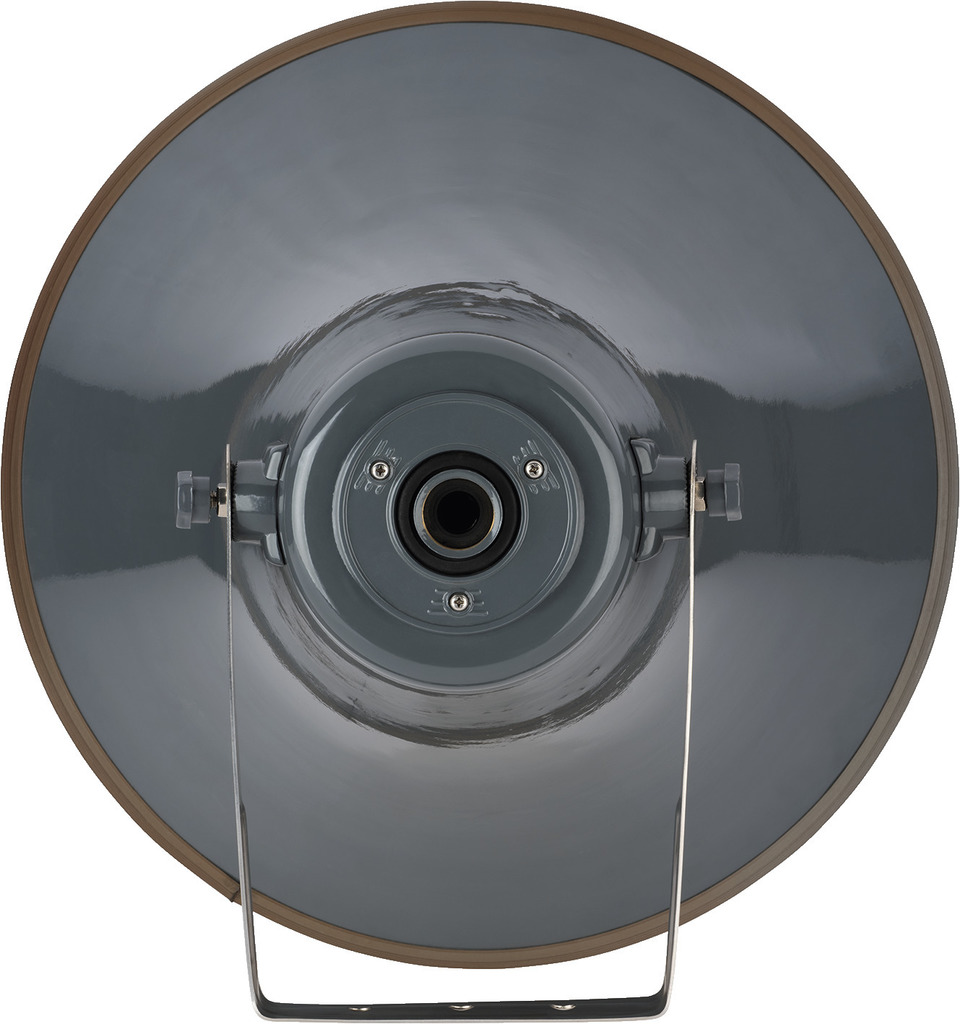

Horn speaker,

for horn drivers.

3.5 mm (1⅜") mounting thread
Aluminium housing
Supplied with stainless steel mounting bracket
Dimensions: Ø 533 mm x 380 mm

Horn speaker for horn drivers

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Horn speaker,

for horn drivers.

3.5 mm (1⅜") mounting thread
Aluminium housing
Supplied with stainless steel mounting bracket
Dimensions: Ø 533 mm x 380 mm

Horn speaker for horn drivers

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive	passive
Frequency range	dep. on driver, approx. 200-10,000 Hz
Radiation angle/beam angle	70°/70°
Radiation angle, horizontal	70°
Radiation angle, vertical	70°
Housing material	aluminium, lacquered
Colour	dark grey
Mounting device	mounting bracket, stainless steel
Dimensions	Ø 533 mm x 380 mm
Width	533 mm
Height	533 mm
Depth	380 mm
Weight	2.8 kg
Other features	limit frequency: 160 Hz
Accessories	KU-516, KU-616T, KU-916T
Packaging dimensions (W x H x L)	0.55 x 0.4 x 0.55 m
Gross weight	5.5 kg
Net weight	2.8 kg

EAN code	4007754427592
Net weight	2.8 kg

Downloads

Datasheet

Accessories for SK-21

Order no.: 0160700

KU-516

Weatherproof horn driver

Active/passive:
passive

Transmission technology:
cable

Total power rating:
75 W

Order no.: 0160700

KU-516

Weatherproof horn driver

Order no.: 0160710

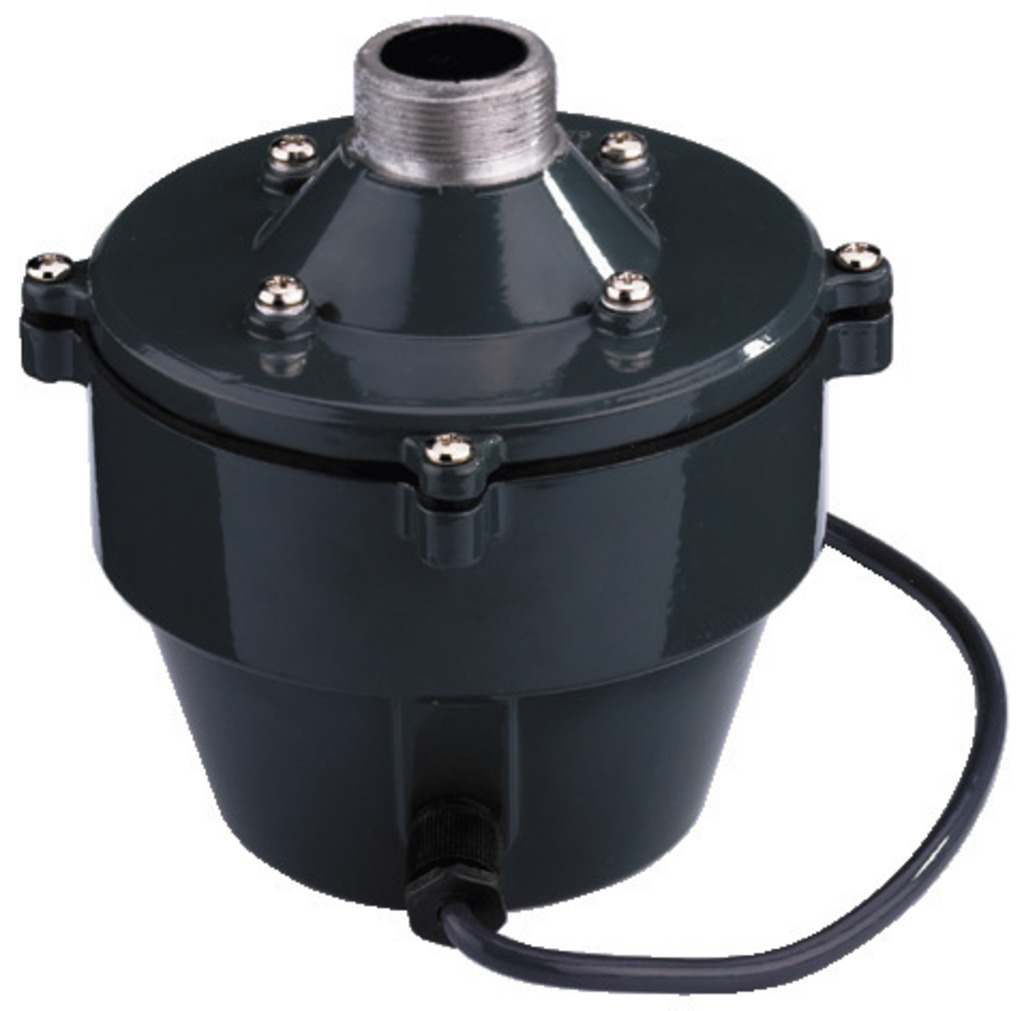

KU-616T

Horn driver, weatherproof

Active/passive:
passive

Transmission technology:
100 V

Total power rating:
40 W

Order no.: 0160710

KU-616T

Horn driver, weatherproof

Order no.: 0161610

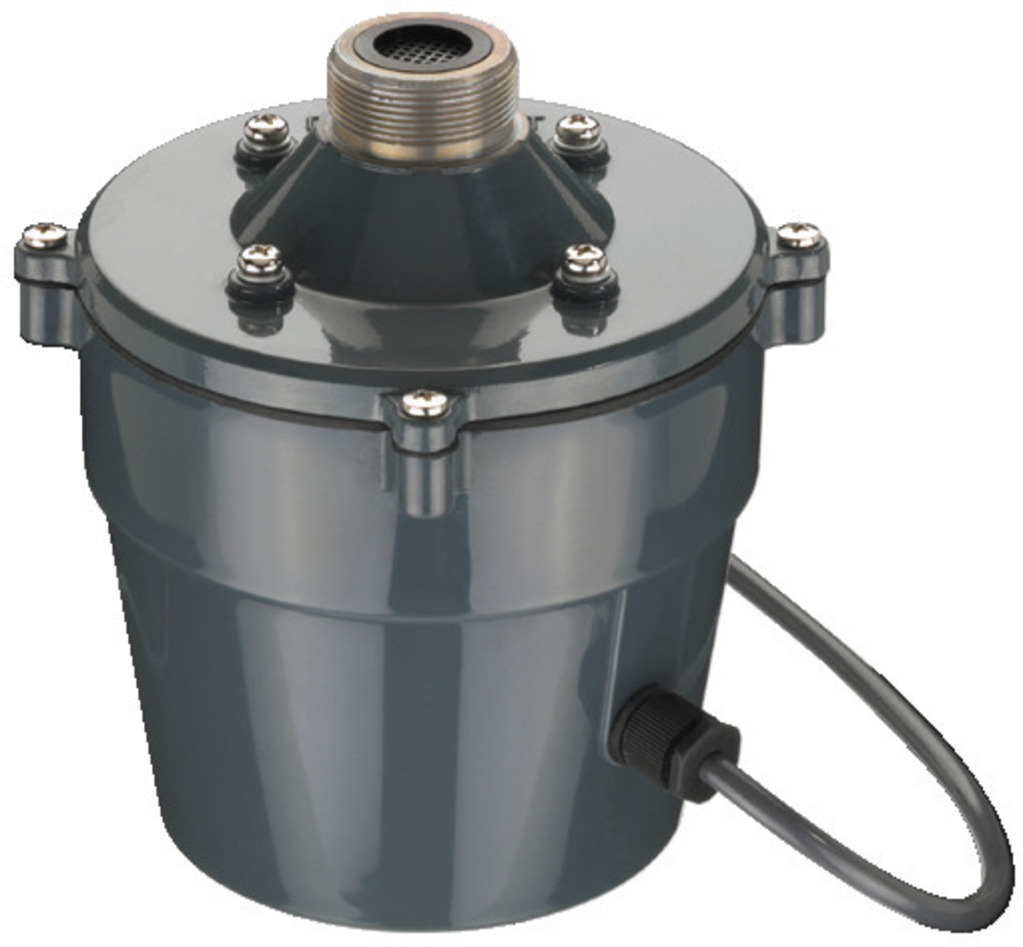

KU-916T

Horn driver, weatherproof

Active/passive:
passive

Transmission technology:
100 V

Total power rating:
60 W

Order no.: 0161610

KU-916T

Horn driver, weatherproof
