Order no.: 1001157

SL-250SW/EN

P2000 P1980 P1516 P1410 P1240 P550 P170 P1468 P10
Order no.: 1001157

SL-250SW/EN

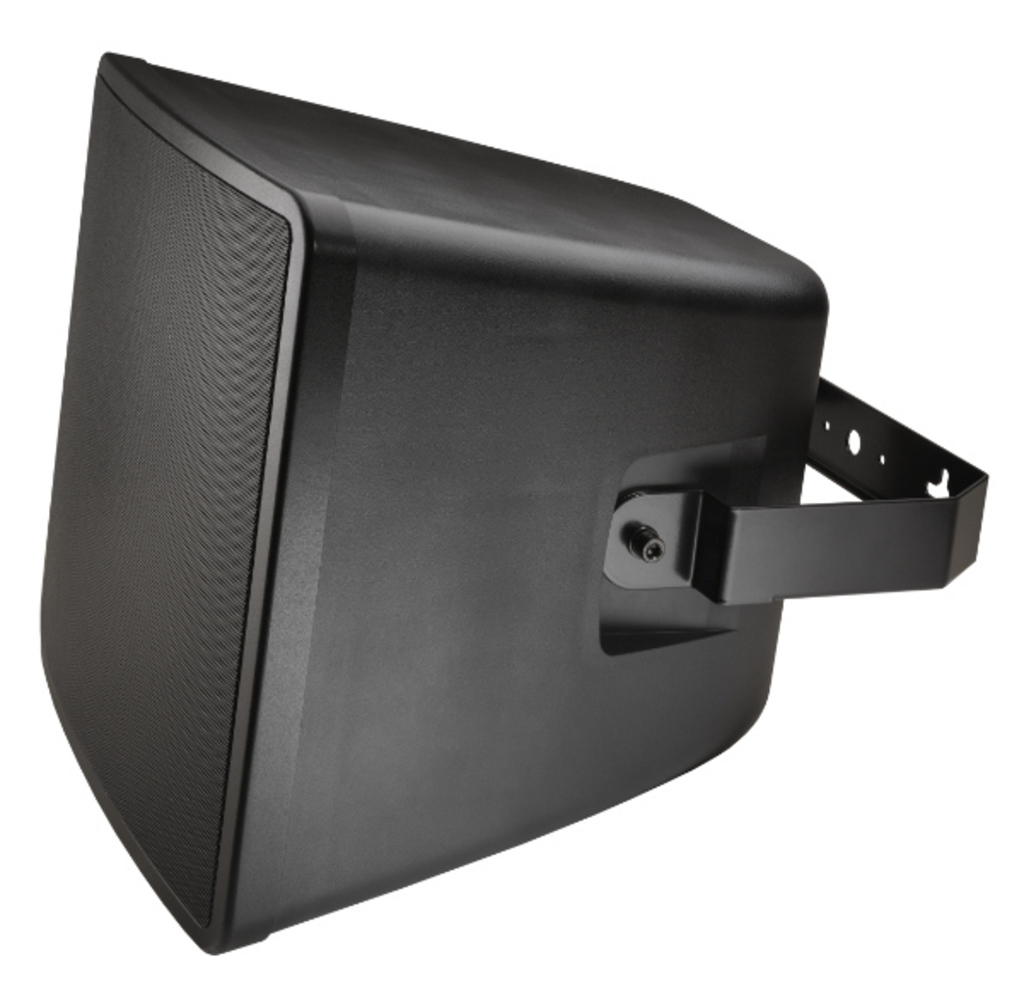

Weatherproof PA speaker system with 30 cm (12") coaxial horn speaker,
developed for outdoor applications, with an excellent sound quality. The SL-250SW/EN is ideally suited for applications at versatile locations, e.g. airports, megastores and stadiums.
Weatherproof PA speaker system, 250 W,
with EN 54-24 certification.
  • 100 V transmission technology or 8 Ω operation
  • 2-way bass-reflex system
  • 30 cm (12") coaxial speaker with tweeter and crossover network
  • Excellent sound
  • IP66 tested
  • ABS cabinet with metal grille
  • Recessed connection terminal with cover plate and high-strength cable gland
  • Supplied with safety rope

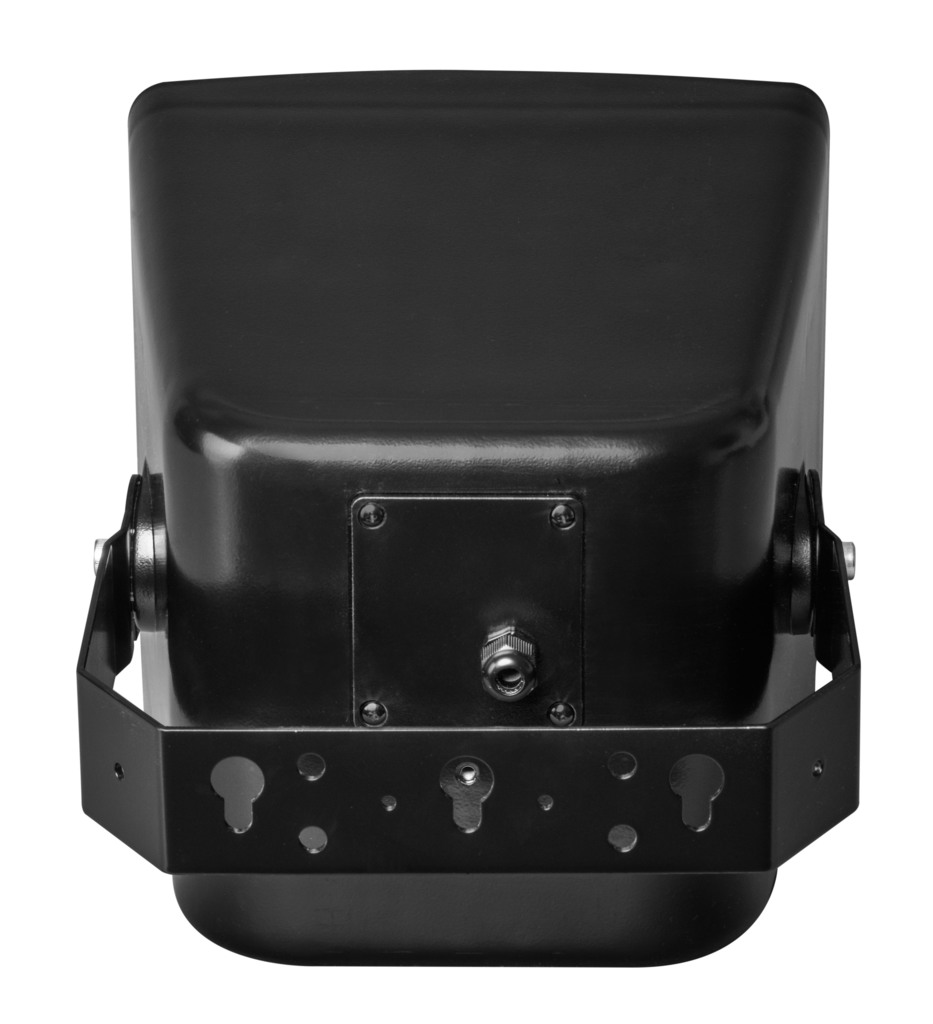

  • Stainless steel wall bracket
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

Weatherproof PA speaker system with 30 cm (12") coaxial horn speaker,
developed for outdoor applications, with an excellent sound quality. The SL-250SW/EN is ideally suited for applications at versatile locations, e.g. airports, megastores and stadiums.
Weatherproof PA speaker system, 250 W,
with EN 54-24 certification.
  • 100 V transmission technology or 8 Ω operation
  • 2-way bass-reflex system
  • 30 cm (12") coaxial speaker with tweeter and crossover network
  • Excellent sound
  • IP66 tested
  • ABS cabinet with metal grille
  • Recessed connection terminal with cover plate and high-strength cable gland
  • Supplied with safety rope
  • Stainless steel wall bracket
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive passive
Transmission technology 100 V or low-impedance
Total power rating 250 W
Power rating (RMS) 250/125/63 W
Impedance 8 Ω
Frequency range 85-19,000 Hz
System 2-way coaxial
Bass speaker 30 cm (12")
Tweeter tweeter
Number of speakers 2
Speaker size 30 cm (12")
SPL 99.6 dB/W/m
Max. rated SPL 122.5 dB
Radiation angle/beam angle H: 60°/V: 70°
Radiation angle, horizontal 60°
Radiation angle, vertical 70°
Housing material ABS
Colour black
Mounting device mounting bracket
Protection class IP66
Admiss. ambient temp. -25 °C to +70 °C
Dimensions 425 x 418 x 390 mm
Width 425 mm
Height 418 mm
Depth 390 mm
Weight 19.7 kg
Inputs screw terminal
Packaging dimensions (W x H x L) 0.52 x 0.44 x 0.54 m
Gross weight 23.5 kg
Net weight 19.7 kg
EAN code 4007754425864
Net weight 19.7 kg
