Order no.: 1001524

SL-60SW/EN

P2000 P1980 P1516 P1410 P1240 P460 P240 P10
Order no.: 1001524

SL-60SW/EN

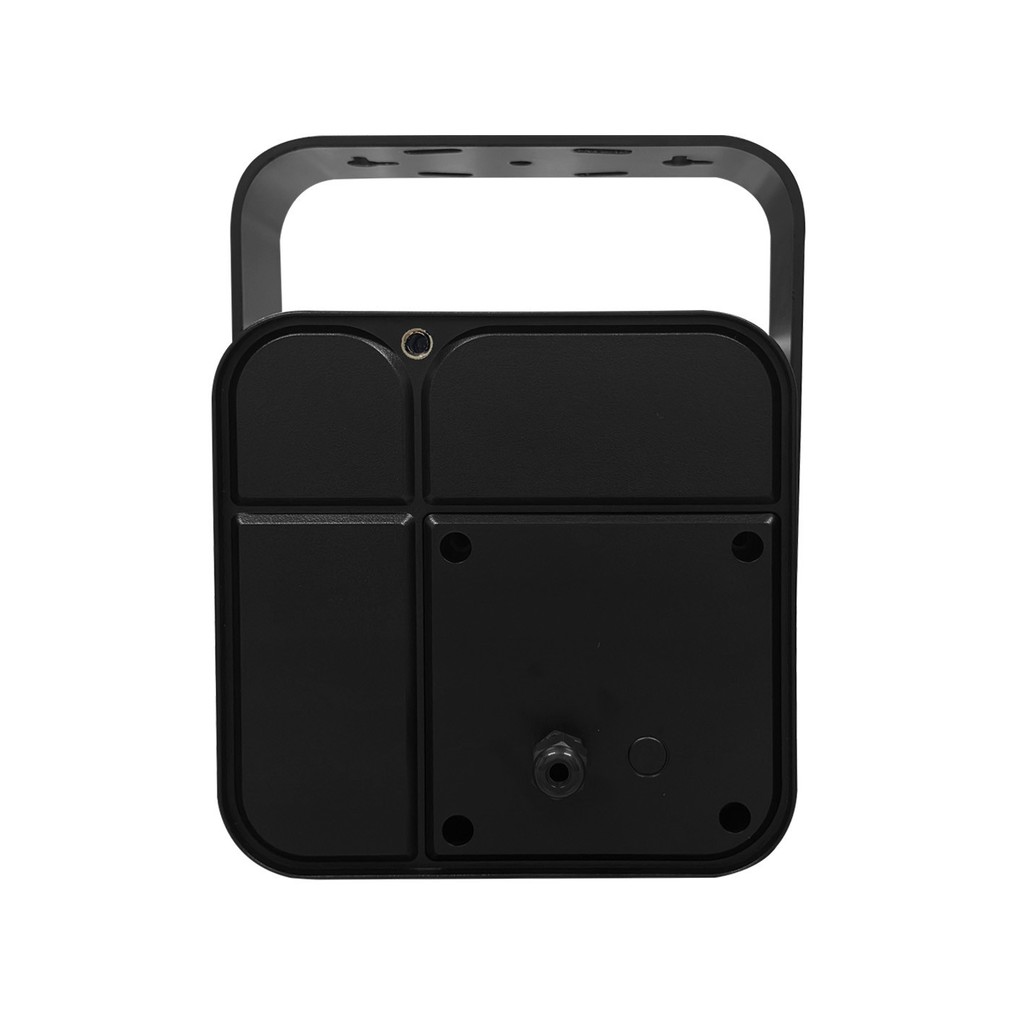

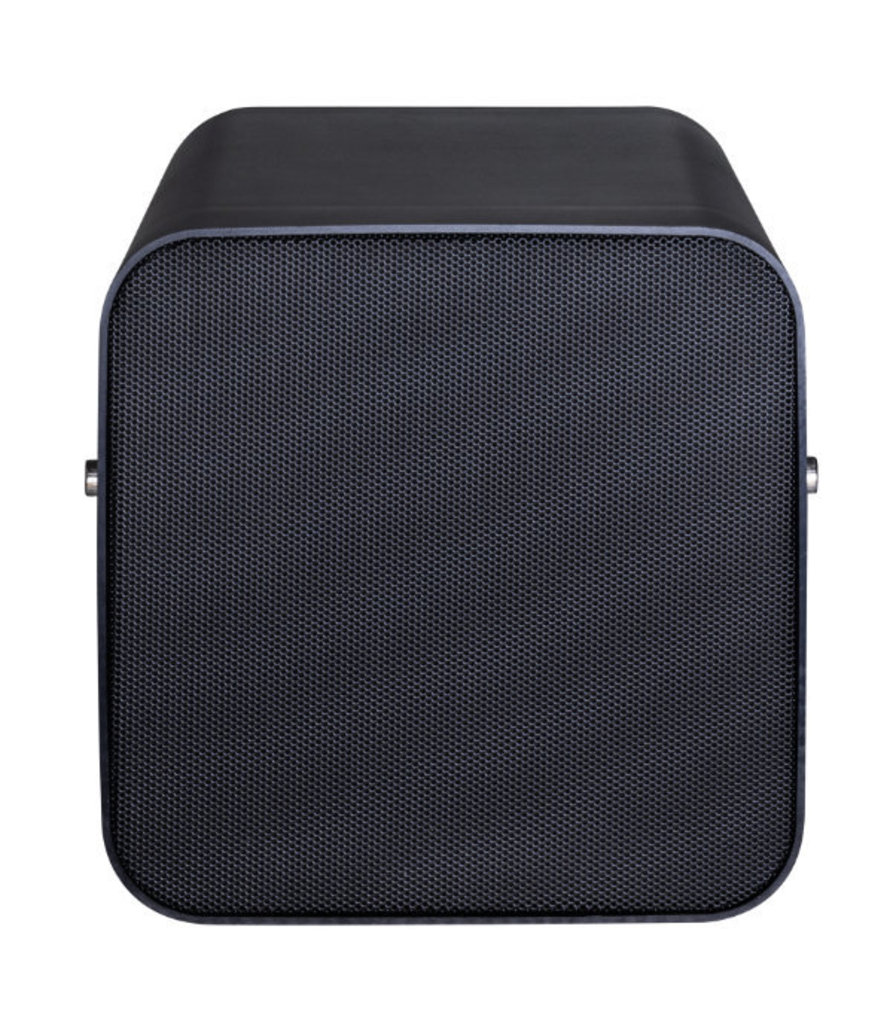

Weatherproof PA speaker system with a 13 cm (5.25") coaxial horn loudspeaker,
designed for outdoor applications and offering excellent music reproduction. The SL-60SW/EN is ideally suited for use in a wide range of venues, including hotels, shopping centres, and amusement parks.
Weatherproof 60 W PA speaker system
with EN 54-24 certification
  • 100 V line operation or 8 Ω operation
  • 2-way bass-reflex system
  • 13 cm (5.25") coaxial loudspeaker with high-frequency driver and crossover network
  • Excellent sound quality
  • Tested in accordance with IP66
  • ABS enclosure with metal protective grille

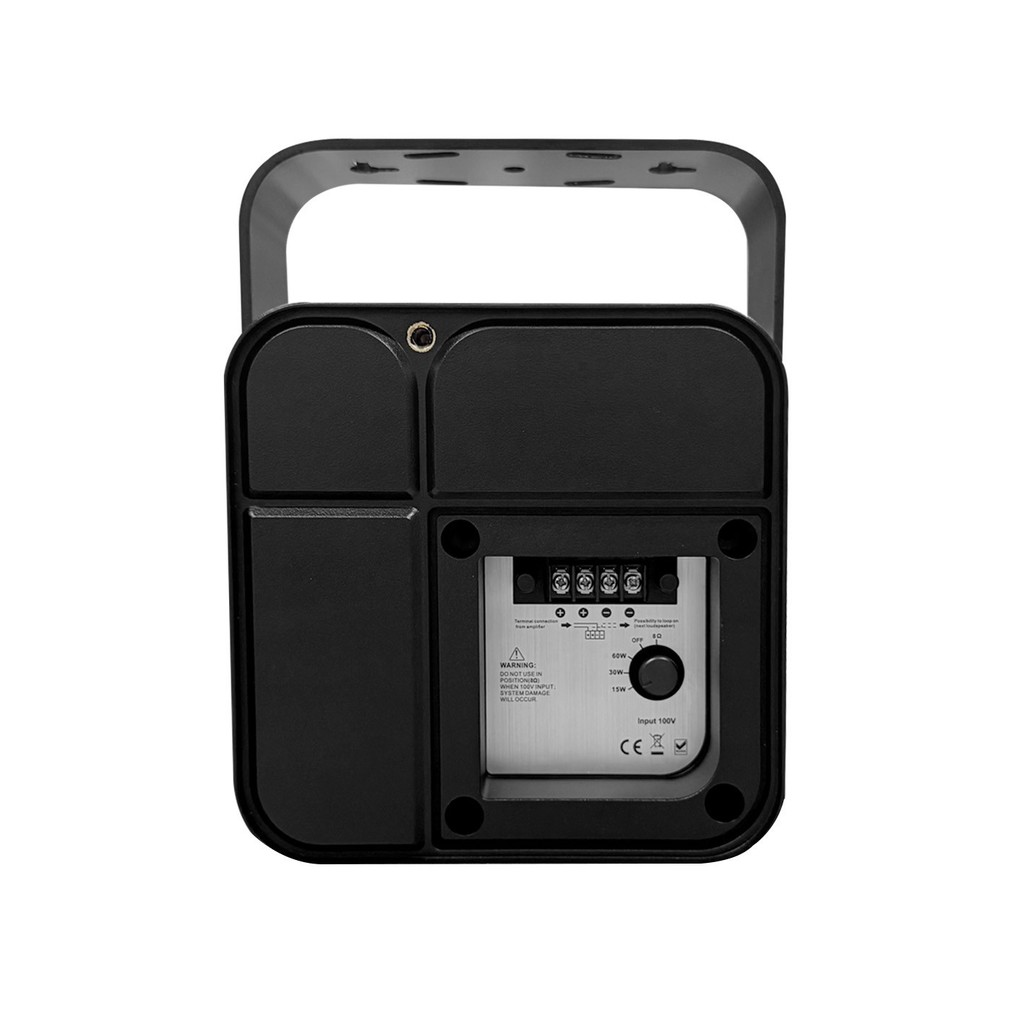

  • Recessed connection terminal with cover plate and PG cable gland
  • Safety cable included
  • Mounting bracket made of corrosion-resistant stainless steel
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

Weatherproof PA speaker system with a 13 cm (5.25") coaxial horn loudspeaker,
designed for outdoor applications and offering excellent music reproduction. The SL-60SW/EN is ideally suited for use in a wide range of venues, including hotels, shopping centres, and amusement parks.
Weatherproof 60 W PA speaker system
with EN 54-24 certification
  • 100 V line operation or 8 Ω operation
  • 2-way bass-reflex system
  • 13 cm (5.25") coaxial loudspeaker with high-frequency driver and crossover network
  • Excellent sound quality
  • Tested in accordance with IP66
  • ABS enclosure with metal protective grille
  • Recessed connection terminal with cover plate and PG cable gland
  • Safety cable included
  • Mounting bracket made of corrosion-resistant stainless steel
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive passive
Transmission technology 100 V or low-impedance
Total power rating 60 W
Power rating (RMS) 60/30/15 W
Impedance 8 Ω
Frequency range 100-24,000 Hz
System 2-way coaxial
Bass speaker 13 cm (5.25")
Tweeter tweeter
Number of speakers 2
Speaker size 13 cm (5.25")
SPL 89 dB/W/m
Max. rated SPL 95.6 dB
Radiation angle/beam angle 360°/360° (500 Hz) 140°/154° (1 kHz) 87°/87° (2 kHz) 103°/94° (4 kHz)
Radiation angle, horizontal 360° (500 Hz) 140° (1 kHz) 87° (2 kHz) 103° (4 kHz)
Radiation angle, vertical 360° (500 Hz) 154° (1 kHz) 87° (2 kHz) 94° (4 kHz)
Housing material ABS
Colour black (RAL 9005)
Mounting device mounting bracket
Protection class IP66
Admiss. ambient temp. -25 °C to +70 °C
Dimensions 180 x 180 x 194 mm
Width 180 mm
Height 180 mm
Depth 194 mm
Weight 2.7 kg
Inputs screw terminal
Packaging dimensions (W x H x L) 0.18 × 0.18 × 0.194 m
Net weight 2.7 kg
EAN code 4007754430530
Net weight 2.7 kg
