Order no.: 0105590

SP-10/250PRO

Order no.: 0105590

SP-10/250PRO

PA bass speaker, subwoofer, 250 W, 8 Ω
  • 25 cm (10") bass speaker and subwoofer of high power capability
  • Heat-resistant voice coil and ventilated drive system
  • Extra long excursion for a deep bass reproduction of high volumes
  • Progressive cone suspension for a high operating reliability
  • Robust diecast aluminium basket
  • Ideally suited for compact subwoofers and 2-way systems with a crossover frequency of approx. 1,500 Hz to the tweeter
HOBBY HiFi 03/2014
“A bass driver of particularly long excursion and high level stability for compact cabinets of about 35 litres (e.g. in the speaker building concept HiFi-PA 10/2). The HiFi-PA 10/2 impressed with a breathtaking power in the audio room. ... tremendous level reserves ... incredibly filigree.”
HOBBY HiFi 02/2014
“A bass driver of particularly long excursion and high level stability for more compact reflex cabinets of about 35 to 40 litres.”

Klang + Ton 03/2013
“Universal bass speaker for powerful applications. Skilfully selected TSP ensure high subwoofer levels from compact cabinets.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

PA bass speaker, subwoofer, 250 W, 8 Ω
  • 25 cm (10") bass speaker and subwoofer of high power capability
  • Heat-resistant voice coil and ventilated drive system
  • Extra long excursion for a deep bass reproduction of high volumes
  • Progressive cone suspension for a high operating reliability
  • Robust diecast aluminium basket
  • Ideally suited for compact subwoofers and 2-way systems with a crossover frequency of approx. 1,500 Hz to the tweeter
HOBBY HiFi 03/2014
“A bass driver of particularly long excursion and high level stability for compact cabinets of about 35 litres (e.g. in the speaker building concept HiFi-PA 10/2). The HiFi-PA 10/2 impressed with a breathtaking power in the audio room. ... tremendous level reserves ... incredibly filigree.”
HOBBY HiFi 02/2014
“A bass driver of particularly long excursion and high level stability for more compact reflex cabinets of about 35 to 40 litres.”

Klang + Ton 03/2013
“Universal bass speaker for powerful applications. Skilfully selected TSP ensure high subwoofer levels from compact cabinets.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z) 8 Ω
Transmission technology cable

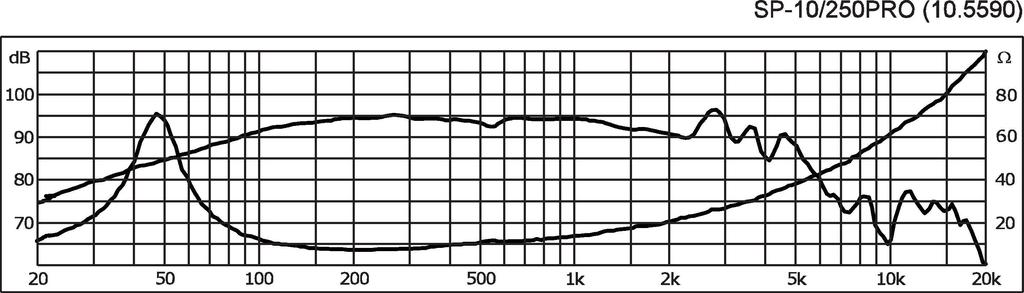

Frequency range f3-2,000 Hz
Resonant frequency (fs) 47 Hz
Power rating (RMS) 250 W
Peak music power output (MAX) 500 W
SPL 94 dB/W/m
Suspension compl. (Cms) 0.20 mm/N
Moving mass (Mms) 51 g
Mech. Q factor (Qms) 6.16
Electr. Q factor (Qes) 0.35
Total Q factor (Qts) 0.33
Equivalent volume (Vas) 40.7 l
DC resistance (Re) 7.1 Ω
Force factor (BxL) 18.30 Tm
Voice coil induct. (Le) 0.83 mH
Voice coil diameter Ø 75 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 7 mm
Eff. cone area (Sd) 380 cm2
Magnet weight 2 kg

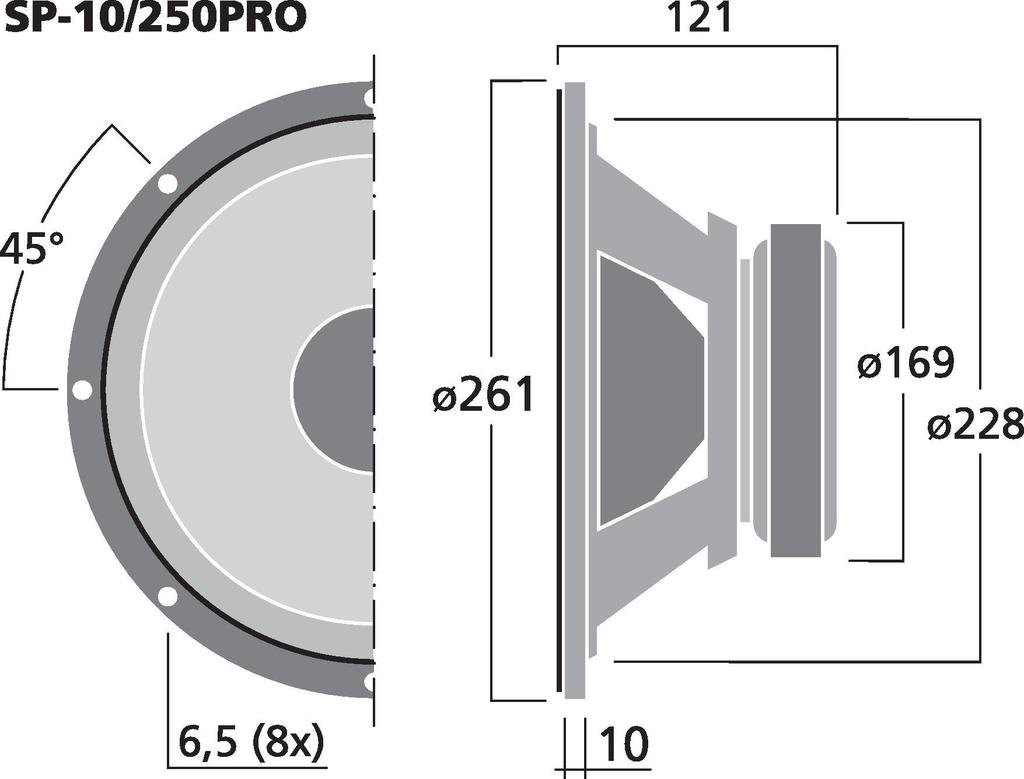

Magnet diameter Ø 169 mm
Mounting cutout Ø 228 mm
Mounting depth 111 mm
Dimensions Ø 261 mm x 121 mm
Outside diameter Ø 261 mm
Width Ø 261 mm
Height Ø 261 mm
Depth 121 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 5 kg
Packing unit 1
Type of speaker 10"
Packaging dimensions (W x H x L) 0.28 x 0.17 x 0.28 m
Gross weight 5.59 kg
Net weight 5 kg
EAN code 4007754232332
Net weight 5 kg
