Order no.: 0103650

SP-10/4S

P260

P415

P1590

Order no.: 0103650

SP-10/4S

Universal speaker, 15 W, 4 Ω

Magnetic shielding
Wide bandwidth speaker of high power capability
Reproduction from approx. 80 Hz on

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Universal speaker, 15 W, 4 Ω

Magnetic shielding
Wide bandwidth speaker of high power capability
Reproduction from approx. 80 Hz on

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	4 Ω
Transmission technology	cable
Frequency range	f3-8,000 Hz
Power rating (RMS)	15 W
Peak music power output (MAX)	25 W
SPL	88 dB/W/m

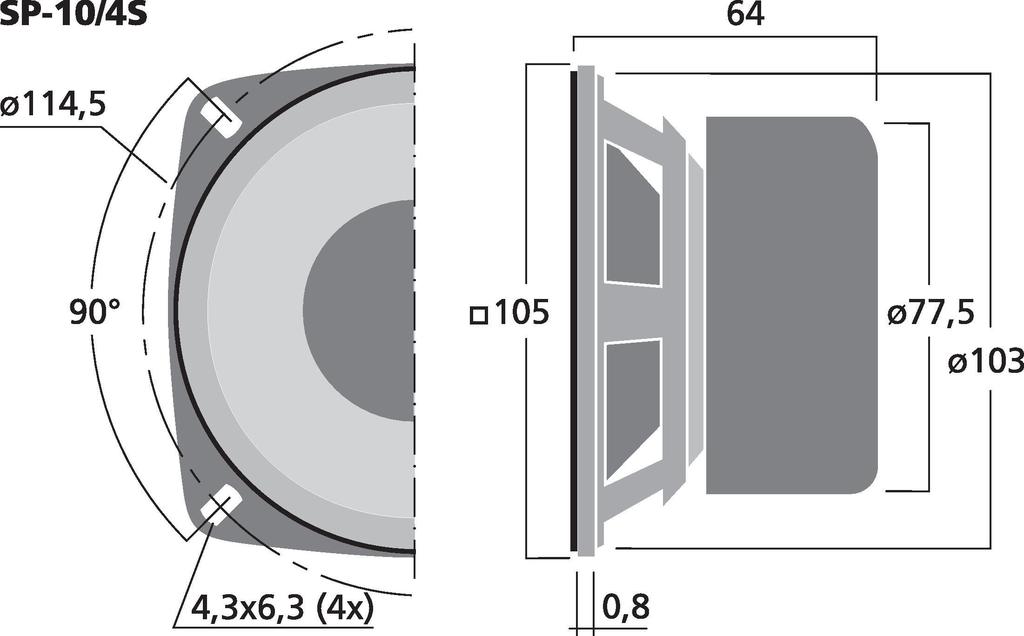

Magnet diameter	Ø 77.5 mm
Mounting cutout	Ø 103 mm
Mounting depth	63.2 mm
Mounting hole diameter	Ø 114.5 mm
Dimensions	105 x 105 x 64 mm
Width	105 mm
Height	105 mm
Depth	64 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	0.59 kg
Packing unit	1
Type of speaker	4"
Packaging dimensions (W x H x L)	0.11 x 0.07 x 0.11 m
Gross weight	0.625 kg
Net weight	0.59 kg

EAN code	4007754137798
Net weight	0.59 kg
