SP-12A/302PA

Order no.: 0104930

SP-12A/302PA

PA bass-midrange speaker, 300 W, 8 Ω Of very high power capability 30 cm (12") professional speaker of long excursion Diecast basket Cone with water-repellent coating Very neat workmanship with front-facing basket Wide frequency response of low distortion High efficiency Excellent bass reproduction Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation For bass-reflex cabinets from 30 litres on already For all kinds of professional and semiprofessional PA applications HOBBY HiFi 05/2013 “With the SP-12A/302PA, IMG Stage Line offers a bass speaker of high power capability for 3-way systems which features an impressively deep bass, a superior level stability and an excellent sound quality.”

About

PA bass-midrange speaker, 300 W, 8 Ω
  • Of very high power capability
  • 30 cm (12") professional speaker of long excursion
  • Diecast basket
  • Cone with water-repellent coating
  • Very neat workmanship with front-facing basket
  • Wide frequency response of low distortion
  • High efficiency
  • Excellent bass reproduction
  • Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation
  • For bass-reflex cabinets from 30 litres on already
  • For all kinds of professional and semiprofessional PA applications
HOBBY HiFi 05/2013
“With the SP-12A/302PA, IMG Stage Line offers a bass speaker of high power capability for 3-way systems which features an impressively deep bass, a superior level stability and an excellent sound quality.”

Specifications

Impedance (Z) 8 Ω

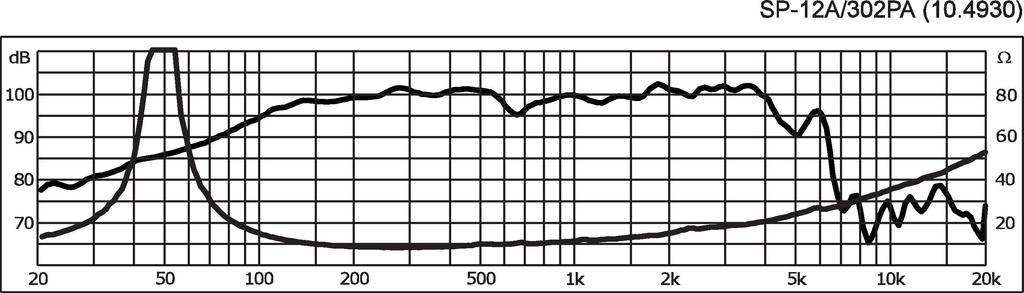

Frequency range f3-4,000 Hz
Resonant frequency (fs) 50 Hz
Power rating (RMS) 300 W
Peak music power output (MAX) 600 W
SPL 99 dB/W/m
Suspension compl. (Cms) 0.19 mm/N
Moving mass (Mms) 50 g
Mech. Q factor (Qms) 7.87
Electr. Q factor (Qes) 0.35
Total Q factor (Qts) 0.34
Equivalent volume (Vas) 77 l
DC resistance (Re) 6.4 Ω
Force factor (BxL) 16.98 Tm
Voice coil induct. (Le) 0.8 mH
Voice coil diameter Ø 66 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 5 mm
Eff. cone area (Sd) 530 cm2
Magnet weight 2 kg

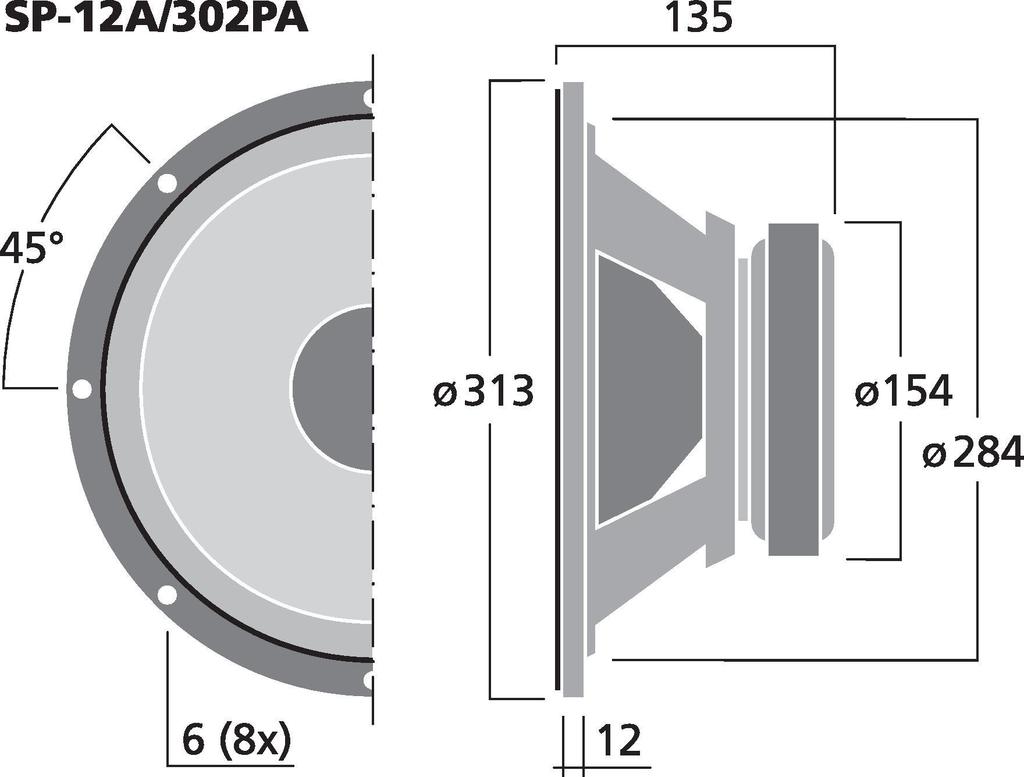

Magnet diameter Ø 154 mm
Mounting cutout Ø 284 mm
Mounting depth 123 mm
Dimensions Ø 313 mm x 135 mm
Outside diameter Ø 313 mm
Width Ø 313 mm
Depth 135 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 5.1 kg
Packing unit 1
Type of speaker 12"
Packing dimensions (W x H x L) 0.345 x 0.165 x 0.345 m
Gross weight 5.8 kg
Net weight 5.1 kg
