Order no.: 0103660

SP-13/4

Order no.: 0103660

SP-13/4

Universal speaker, 20 W, 4 Ω

For general applications up to the PA range
Wide bandwidth radiation

Klang+Ton 02/2018

“Quite respectable. [...] considering the modest use of material, a remarkable performance.” (SP-13/4 and HT-22/8 in the Cheap Trick 296 of Klang+Ton)

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Universal speaker, 20 W, 4 Ω

For general applications up to the PA range
Wide bandwidth radiation

Klang+Ton 02/2018

“Quite respectable. [...] considering the modest use of material, a remarkable performance.” (SP-13/4 and HT-22/8 in the Cheap Trick 296 of Klang+Ton)

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	4 Ω
Transmission technology	cable
Frequency range	f3-8,000 Hz
Power rating (RMS)	20 W
Peak music power output (MAX)	40 W
SPL	88 dB/W/m

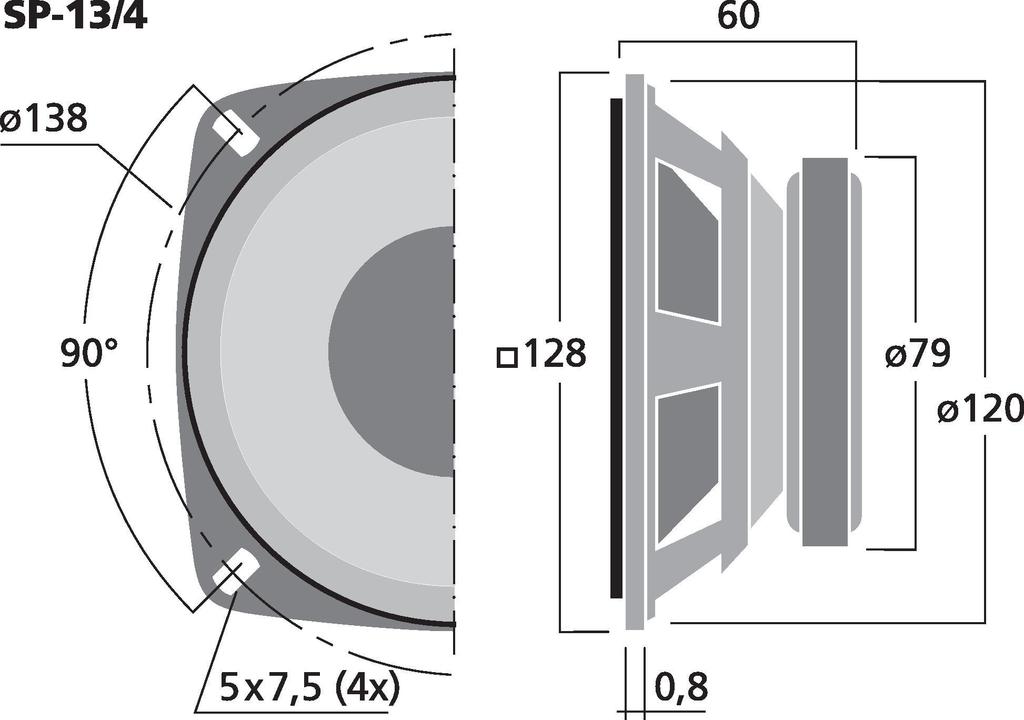

Magnet diameter	Ø 79 mm
Mounting cutout	Ø 120 mm
Mounting depth	59.2 mm
Mounting hole diameter	Ø 138 mm
Dimensions	128x128 mm
Width	128 mm
Height	128 mm
Depth	60 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	605 g
Packing unit	1
Type of speaker	5"
Packaging dimensions (W x H x L)	0.13 x 0.06 x 0.13 m
Gross weight	0.65 kg
Net weight	0.605 kg
