Order no.: 0104940

SP-15A/402PA

P160 P623 P1410
Order no.: 0104940

SP-15A/402PA

PA bass speaker, 400 W, 8 Ω
  • Of very high power capability
  • 38 cm (15") professional bass speaker of long excursion
  • Diecast basket
  • Cone with water-repellent coating
  • Very neat workmanship with front-facing basket
  • Wide frequency response
  • High efficiency
  • Excellent deep bass reproduction
  • Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation
  • For bass-reflex cabinets of medium size from 80 litres on
  • For all kinds of professional and semiprofessional PA applications
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

PA bass speaker, 400 W, 8 Ω
  • Of very high power capability
  • 38 cm (15") professional bass speaker of long excursion
  • Diecast basket
  • Cone with water-repellent coating
  • Very neat workmanship with front-facing basket
  • Wide frequency response
  • High efficiency
  • Excellent deep bass reproduction
  • Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation
  • For bass-reflex cabinets of medium size from 80 litres on
  • For all kinds of professional and semiprofessional PA applications
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z) 8 Ω
Transmission technology cable

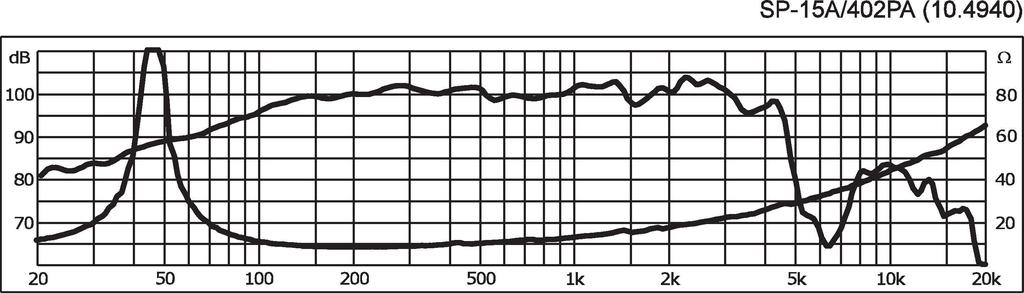

Frequency range f3-3,000 Hz
Resonant frequency (fs) 36 Hz
Power rating (RMS) 400 W
Peak music power output (MAX) 800 W
SPL 100 dB/W/m
Suspension compl. (Cms) 0.22 mm/N
Moving mass (Mms) 87 g
Mech. Q factor (Qms) 7.45
Electr. Q factor (Qes) 0.33
Total Q factor (Qts) 0.31
Equivalent volume (Vas) 235 l
DC resistance (Re) 6.5 Ω
Force factor (BxL) 19.90 Tm
Voice coil induct. (Le) 0.9 mH

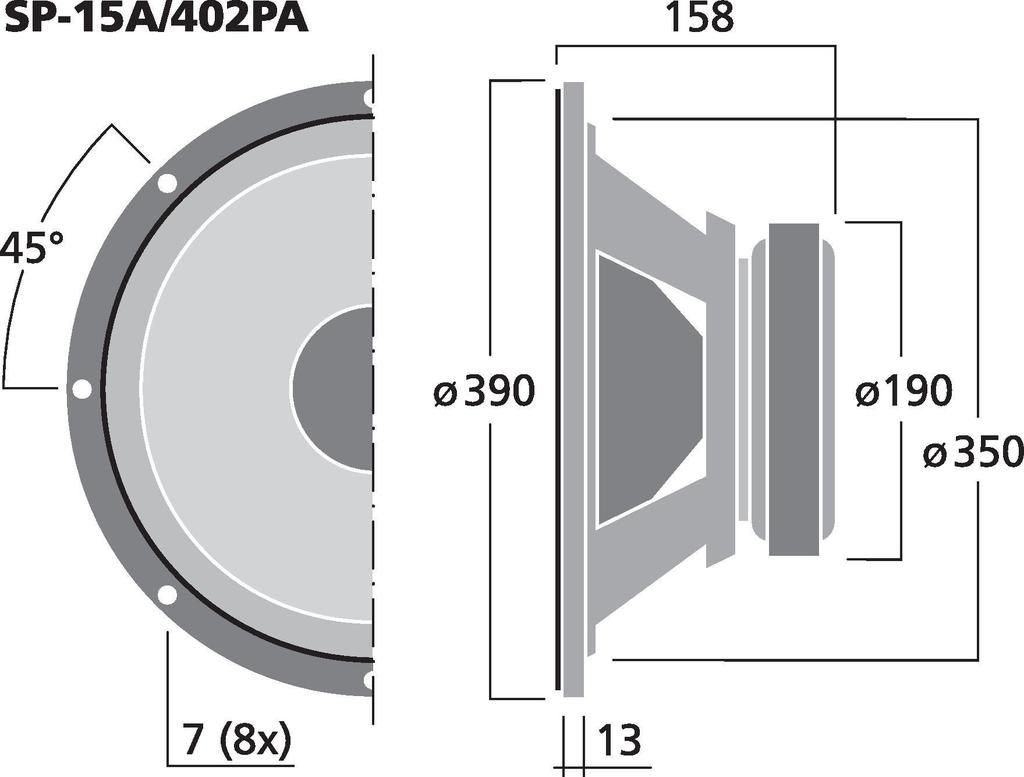

Voice coil diameter Ø 100 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 5 mm
Eff. cone area (Sd) 881 cm2
Magnet weight 2.3 kg
Magnet diameter Ø 190 mm
Mounting cutout Ø 350 mm
Mounting depth 145 mm
Mounting hole diameter Ø 370 mm
Dimensions Ø 390 mm x 158 mm
Outside diameter Ø 390 mm
Width Ø 390 mm
Height Ø 390 mm
Depth 158 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 7.74 kg
Packing unit 1
Type of speaker 15"
Packaging dimensions (W x H x L) 0.415 x 0.21 x 0.415 m
Gross weight 8.78 kg
Net weight 7.74 kg
EAN code 4007754191073
Net weight 7.74 kg
