Order no.: 0103680

SP-17/4

P210

P460

Order no.: 0103680

SP-17/4

Universal speaker, 30 W, 4 Ω

For general applications and replacement purposes
High power capability
To be used in the bass-midrange

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Universal speaker, 30 W, 4 Ω

For general applications and replacement purposes
High power capability
To be used in the bass-midrange

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	4 Ω
Transmission technology	cable
Frequency range	f3-6,000 Hz
Power rating (RMS)	30 W
Peak music power output (MAX)	60 W
SPL	89 dB/W/m

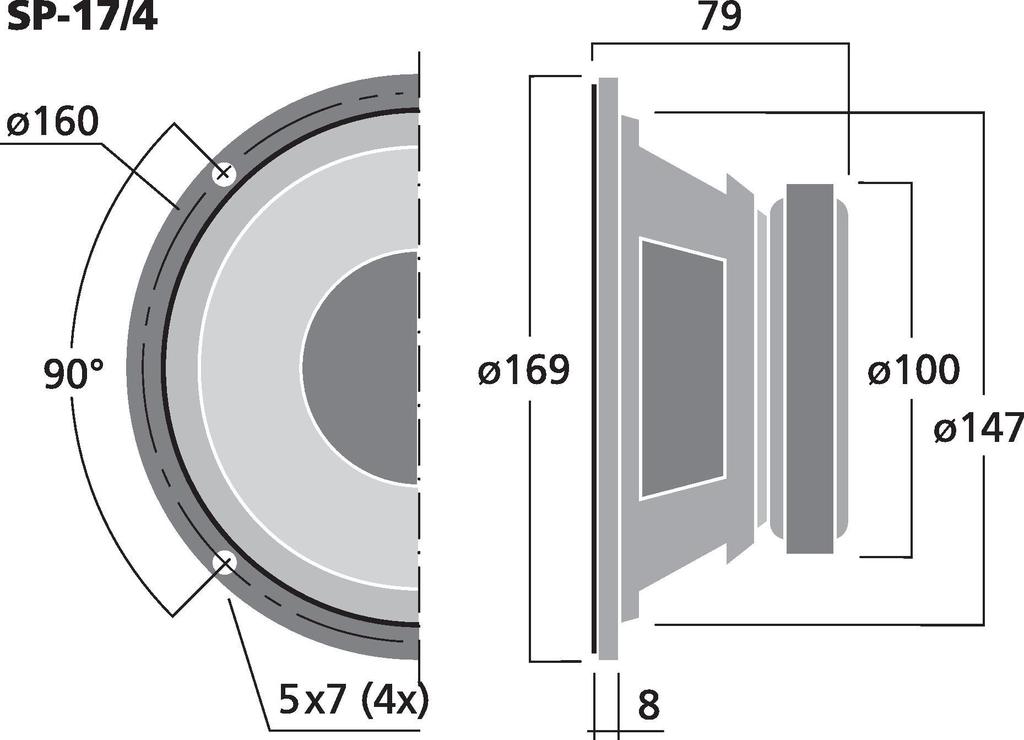

Magnet diameter	Ø 100 mm
Mounting cutout	Ø 147 mm
Mounting depth	71 mm
Mounting hole diameter	Ø 160 mm
Dimensions	Ø 169 mm x 79 mm
Outside diameter	Ø 169 mm
Width	Ø 169 mm
Height	Ø 169 mm
Depth	79 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	1.086 kg
Packing unit	1
Type of speaker	6.5"
Packaging dimensions (W x H x L)	0.17 x 0.085 x 0.17 m
Gross weight	1.13 kg
Net weight	1.086 kg

EAN code	4007754137828
Net weight	1.086 kg

Downloads

Accessories for SP-17/4

Order no.: 0122240

MDM-5

Speaker foam sealing tape, 5 x 150 cm

Description:
speaker foam sealing tape

Type:
self-adhesive

Colour:
black

Order no.: 0122240

MDM-5

Speaker foam sealing tape, 5 x 150 cm

Order no.: 0126430

MZF-8614

Hexagon socket wood screws

Description:
wood screws

Type:
hexagon socket, self-cutting

Colour:
black

Order no.: 0126430

MZF-8614

Hexagon socket wood screws

Order no.: 0121440

ST-930

Spring-loaded speaker terminal

Description:
spring-loaded speaker terminal

Type:
round

Colour:
black

Order no.: 0121440

ST-930

Spring-loaded speaker terminal
