| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

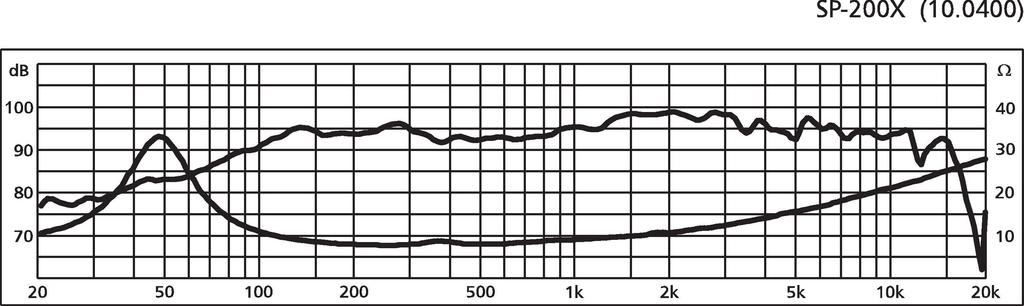

| Frequency range | f3-15,000 Hz |
| Resonant frequency (fs) | 50 Hz |
| Power rating (RMS) | 35 W |
| Peak music power output (MAX) | 70 W |
| SPL | 92 dB/W/m |
| Suspension compl. (Cms) | 0.77 mm/N |
| Moving mass (Mms) | 11.5 g |
| Mech. Q factor (Qms) | 1.96 |
| Electr. Q factor (Qes) | 0.7 |
| Total Q factor (Qts) | 0.52 |
| Equivalent volume (Vas) | 48 l |
| DC resistance (Re) | 7.2 Ω |
| Force factor (BxL) | 6.10 Tm |
| Voice coil induct. (Le) | 0.3 mH |
| Voice coil diameter | Ø 25.5 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 1.6 mm |
| Eff. cone area (Sd) | 210 cm2 |
| Magnet weight | 500 g |
| Magnet diameter | Ø 100 mm |
| Mounting cutout | Ø 188 mm |
| Mounting depth | 72 mm |

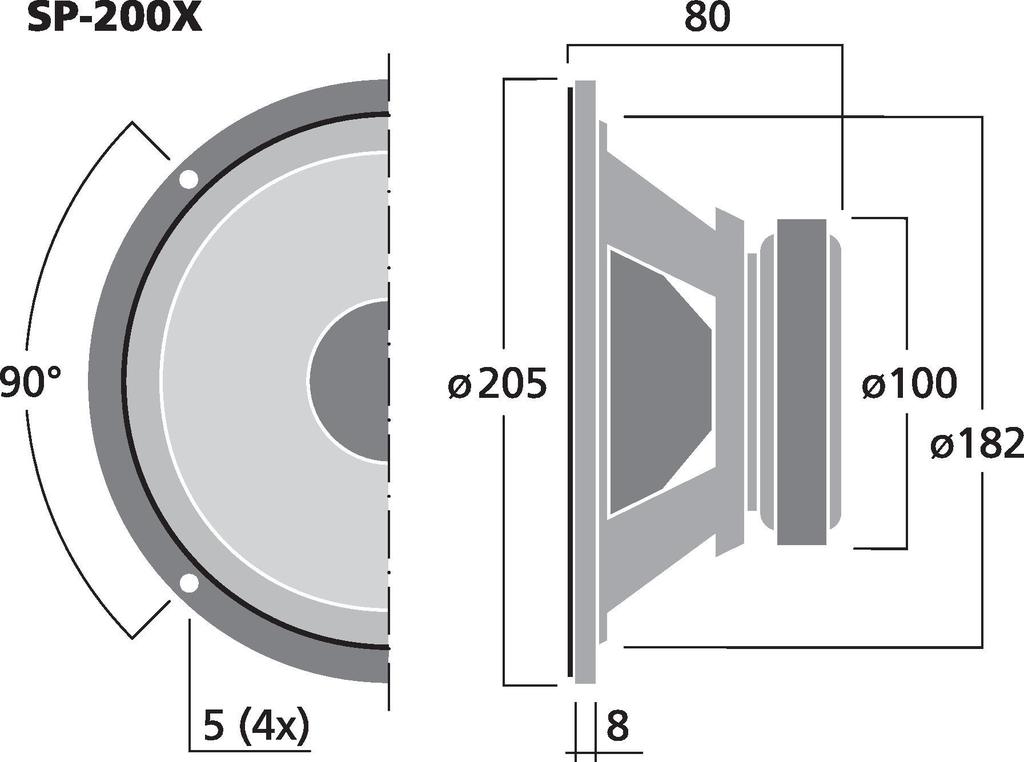

| Dimensions | Ø 205 mm x 80 mm |
| Outside diameter | Ø 205 mm |
| Width | Ø 205 mm |
| Height | Ø 205 mm |
| Depth | 80 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.35 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
| Packaging dimensions (W x H x L) | 0.22 x 0.1 x 0.23 m |
| Gross weight | 1.465 kg |
| Net weight | 1.35 kg |
| EAN code | 4007754024395 |
| Net weight | 1.35 kg |
