Order no.: 0104460

SP-205/8

Order no.: 0104460

SP-205/8

Universal full range speaker, 8 W, 8 Ω
  • Dual cone
  • For PA applications and other purposes
  • Particularly suitable for multiple arrangements in column speakers
  • Excellent sound quality
Klang+Ton 06/2013
“Built into an open cabinet (Cheap Trick 269), this speaker provides features which are clearly above its price class and can clearly be considered high-end. Like all the other full range speakers of this design, it also needs a break-in period to demonstrate its full capability. After about 6 months, you wouldn't give this speaker back, not even for far more than you paid for it.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

Universal full range speaker, 8 W, 8 Ω
  • Dual cone
  • For PA applications and other purposes
  • Particularly suitable for multiple arrangements in column speakers
  • Excellent sound quality
Klang+Ton 06/2013
“Built into an open cabinet (Cheap Trick 269), this speaker provides features which are clearly above its price class and can clearly be considered high-end. Like all the other full range speakers of this design, it also needs a break-in period to demonstrate its full capability. After about 6 months, you wouldn't give this speaker back, not even for far more than you paid for it.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range f3-18,000 Hz
Resonant frequency (fs) 100 Hz
Power rating (RMS) 8 W
Peak music power output (MAX) 10 W
SPL 94 dB/W/m
Magnet weight 79 g

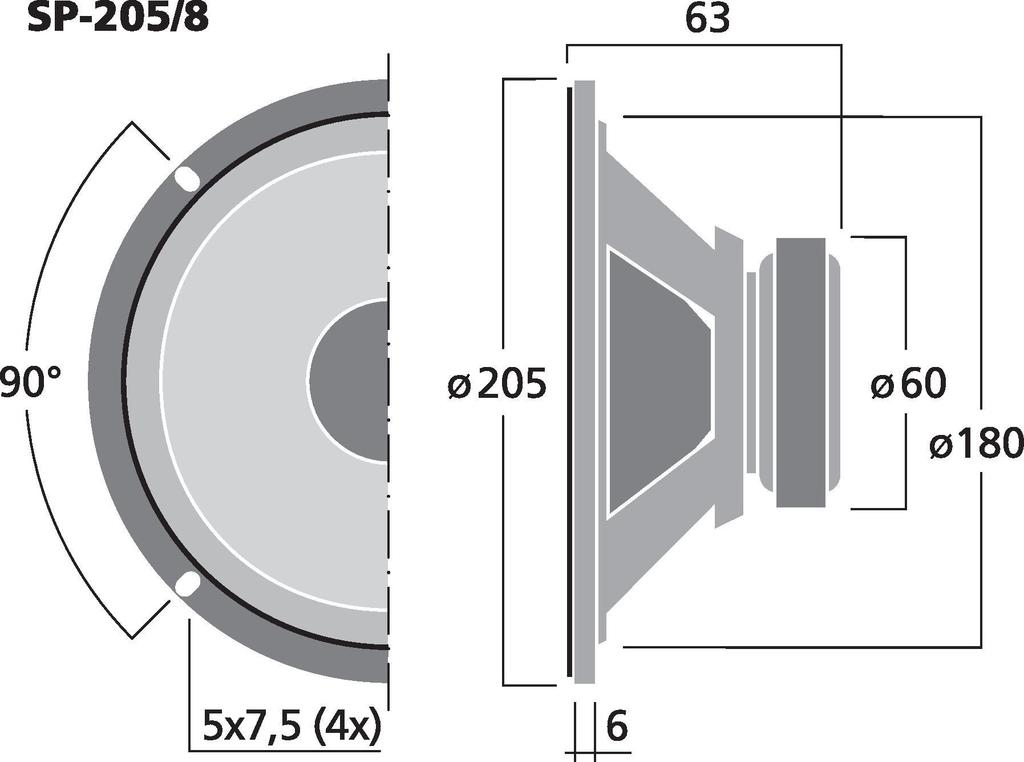

Magnet diameter Ø 60 mm
Mounting cutout Ø 180 mm
Mounting depth 57 mm
Dimensions Ø 205 mm x 63 mm
Outside diameter Ø 205 mm
Width Ø 205 mm
Height Ø 205 mm
Depth 63 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.379 kg
Packing unit 1
Type of speaker 8"
Packaging dimensions (W x H x L) 0.21 x 0.07 x 0.215 m
Gross weight 0.446 kg
Net weight 0.379 kg
EAN code 4007754181791
Net weight 0.379 kg

Accessories for SP-205/8

Description:
speaker foam sealing tape
Type:
self-adhesive
Colour:
black
Order no.: 0122240
Speaker foam sealing tape, 5 x 150 cm
Description:
speaker mounting set
Nominal value:
M4
Type:
with drive-in nut
Order no.: 0121090
Speaker mounting set
Description:
wood screws
Type:
hexagon socket, self-cutting
Colour:
black
Order no.: 0126430
Hexagon socket wood screws
Description:
speaker terminal
Type:
square
Colour:
black
Order no.: 0122080
Speaker terminal
