| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

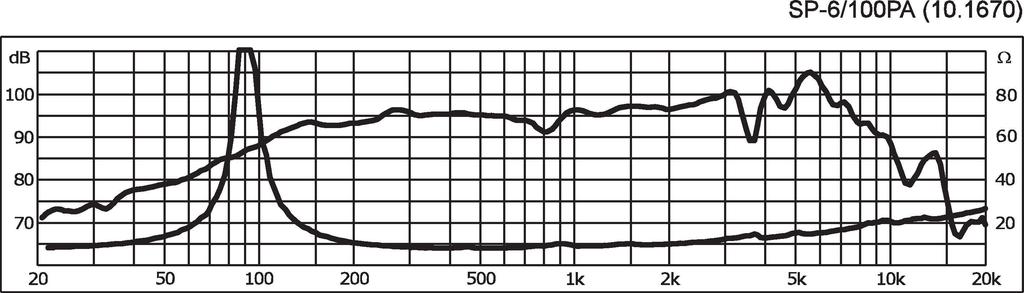

| Frequency range | f3-8,000 Hz |
| Resonant frequency (fs) | 90 Hz |
| Power rating (RMS) | 100 W |
| Peak music power output (MAX) | 200 W |
| SPL | 94 dB/W/m |
| Suspension compl. (Cms) | 0.28 mm/N |
| Moving mass (Mms) | 11.2 g |
| Mech. Q factor (Qms) | 4.24 |
| Electr. Q factor (Qes) | 0.49 |
| Total Q factor (Qts) | 0.44 |
| Equivalent volume (Vas) | 8 l |
| DC resistance (Re) | 6.7 Ω |
| Force factor (BxL) | 9.30 Tm |
| Voice coil induct. (Le) | 0.5 mH |
| Voice coil diameter | Ø 40 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 0.75 mm |
| Eff. cone area (Sd) | 139 cm2 |
| Magnet weight | 850 g |

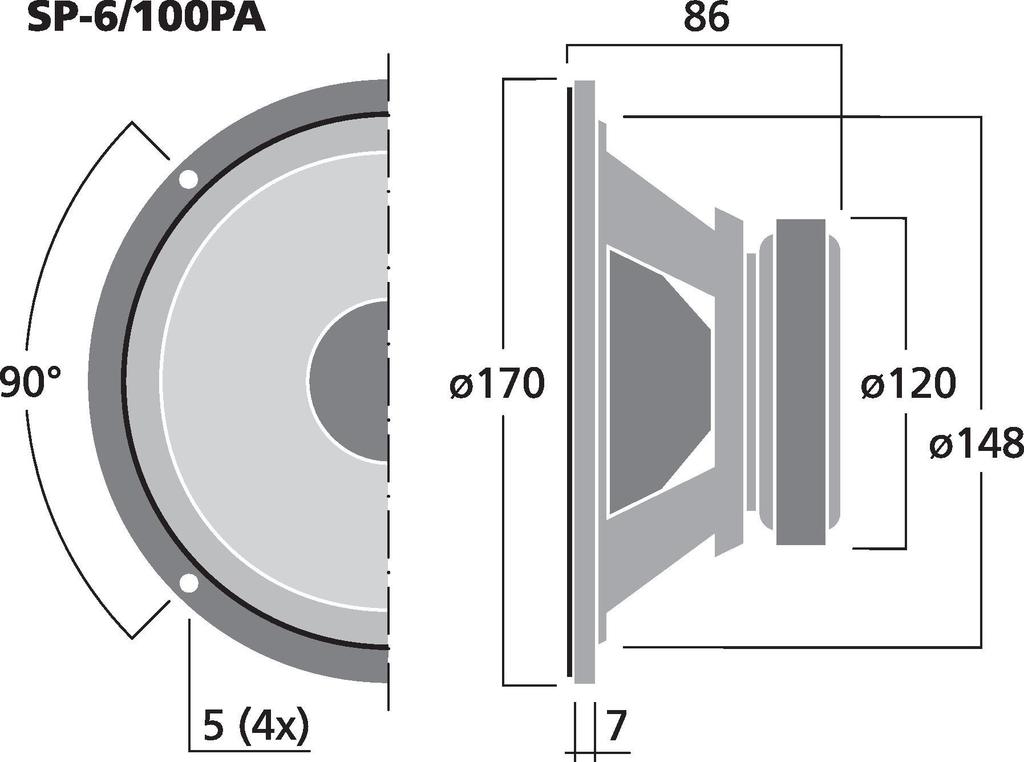

| Magnet diameter | Ø 120 mm |
| Mounting cutout | Ø 148 mm |
| Mounting depth | 79 mm |
| Dimensions | Ø 170 mm x 86 mm |
| Outside diameter | Ø 170 mm |
| Width | Ø 170 mm |
| Height | Ø 170 mm |
| Depth | 86 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2.14 kg |
| Packing unit | 1 |
| Type of speaker | 6" |
| Packaging dimensions (W x H x L) | 0.2 x 0.12 x 0.2 m |
| Gross weight | 2.37 kg |
| Net weight | 2.14 kg |
| EAN code | 4007754073690 |
| Net weight | 2.14 kg |
