| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | f3-6,000 Hz |
| Resonant frequency (fs) | 73 Hz |
| Power rating (RMS) | 150 W |
| Peak music power output (MAX) | 300 W |
| SPL | 93 dB/W/m |
| Suspension compl. (Cms) | 0.31 mm/N |
| Moving mass (Mms) | 15.2 g |
| Mech. Q factor (Qms) | 5.31 |
| Electr. Q factor (Qes) | 0.46 |
| Total Q factor (Qts) | 0.42 |
| Equivalent volume (Vas) | 8.5 l |
| DC resistance (Re) | 6.5 Ω |
| Force factor (BxL) | 9.90 Tm |
| Voice coil induct. (Le) | 0.6 mH |
| Voice coil diameter | Ø 50 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 1 mm |
| Eff. cone area (Sd) | 139 cm2 |
| Magnet weight | 850 g |
| Magnet diameter | Ø 120 mm |
| Mounting cutout | Ø 148 mm |
| Mounting depth | 79 mm |

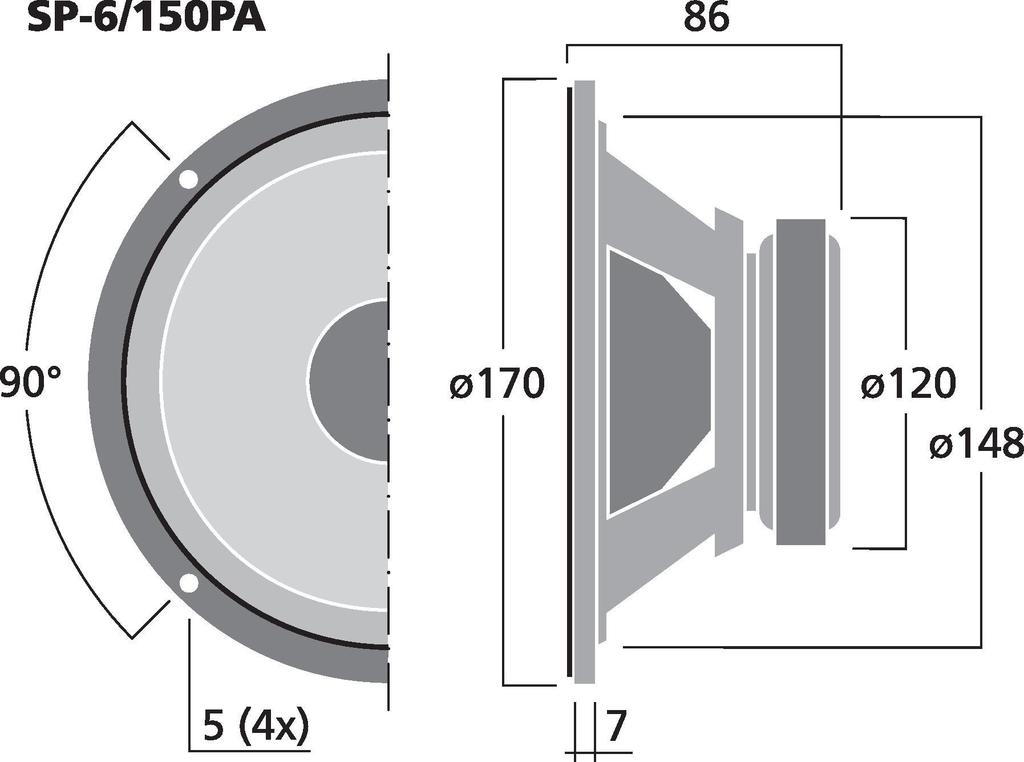

| Dimensions | Ø 170 mm x 86 mm |
| Outside diameter | Ø 170 mm |
| Width | Ø 170 mm |
| Height | Ø 170 mm |
| Depth | 86 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2.16 kg |
| Packing unit | 1 |
| Type of speaker | 6.5" |
| Packaging dimensions (W x H x L) | 0.205 x 0.12 x 0.205 m |
| Gross weight | 2.4 kg |
| Net weight | 2.16 kg |
| EAN code | 4007754125061 |
| Net weight | 2.16 kg |
