Order no.: 0103540

SP-6/4SQ

P272 P360
Order no.: 0103540

SP-6/4SQ

Universal speaker, 3 W, 4 Ω
  • For standard applications in the miniature speaker range
  • Sound pressure from approx. 280 Hz on
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

Universal speaker, 3 W, 4 Ω
  • For standard applications in the miniature speaker range
  • Sound pressure from approx. 280 Hz on
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z) 4 Ω
Transmission technology cable
Frequency range f3-16,000 Hz
Power rating (RMS) 3 W
Peak music power output (MAX) 5 W
SPL 81 dB

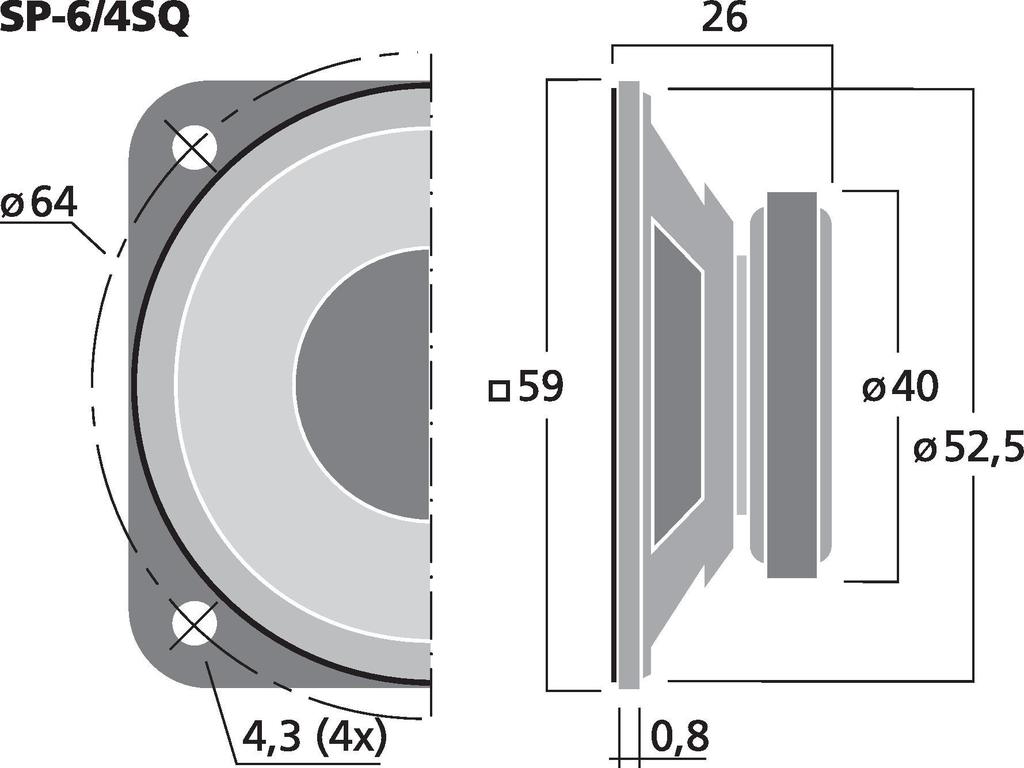

Magnet diameter Ø 40 mm
Mounting cutout Ø 51 mm
Mounting depth 25.2 mm
Mounting hole diameter Ø 64 mm
Dimensions 59 x 59 x 26 mm
Width 59 mm
Height 59 mm
Depth 26 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 83 g
Packing unit 1
Type of speaker 2"
Packaging dimensions (W x H x L) 0.065 x 0.032 x 0.065 m
Gross weight 0.094 kg
Net weight 0.083 kg
EAN code 4007754137682
Net weight 0.083 kg
