Order no.: 0102170

SP-626/8

P270 P350
Order no.: 0102170

SP-626/8

Universal full range speaker, 2 W, 8 Ω
  • For any PA application
  • Particularly suitable for multiple arrangements in column speakers
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

Universal full range speaker, 2 W, 8 Ω
  • For any PA application
  • Particularly suitable for multiple arrangements in column speakers
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range f3-18,000 Hz
Resonant frequency (fs) 200 Hz
Power rating (RMS) 2 W
Peak music power output (MAX) 3 W
SPL 83 dB
Magnet weight 79 g

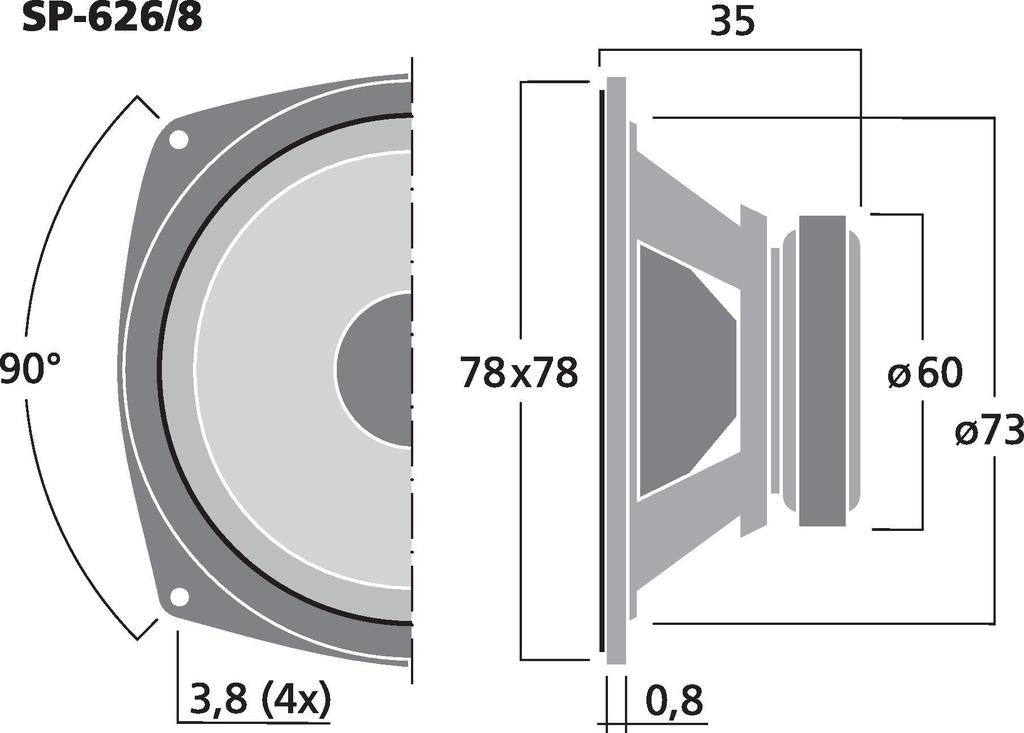

Magnet diameter Ø 60 mm
Mounting cutout Ø 73 mm
Mounting depth 34.2 mm
Dimensions 78 x 78 x 35 mm
Width 78 mm
Height 78 mm
Depth 35 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.225 kg
Packing unit 1
Type of speaker 3
Packaging dimensions (W x H x L) 0.08 x 0.04 x 0.08 m
Gross weight 0.24 kg
Net weight 0.225 kg
EAN code 4007754053951
Net weight 0.225 kg

Downloads

Accessories for SP-626/8

Description:
speaker foam sealing tape
Type:
self-adhesive
Colour:
black
Order no.: 0122240
MDM-5
Speaker foam sealing tape, 5 x 150 cm
Login
Description:
wood screws
Type:
hexagon socket, self-cutting
Colour:
black
Order no.: 0126430
MZF-8614
Hexagon socket wood screws
Login
Description:
speaker terminal
Type:
square
Colour:
black
Order no.: 0122080
ST-955
Speaker terminal
Login
