Order no.: 0103580

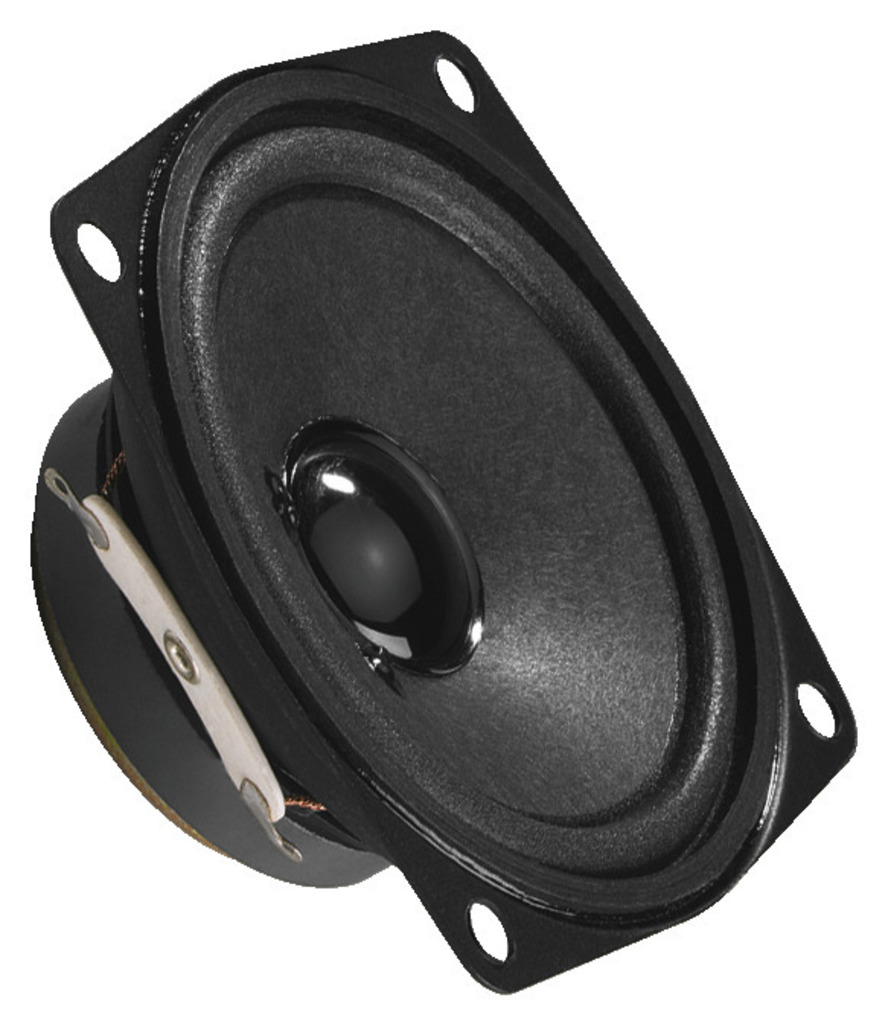

SP-7/4SQ

P375

Order no.: 0103580

SP-7/4SQ

Universal speaker, 4 W, 4 Ω

For standard applications in the miniature speaker range
Sound pressure from approx. 200 Hz on

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Universal speaker, 4 W, 4 Ω

For standard applications in the miniature speaker range
Sound pressure from approx. 200 Hz on

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	4 Ω
Transmission technology	cable
Frequency range	f3-17,000 Hz
Power rating (RMS)	4 W
Peak music power output (MAX)	8 W
SPL	82 dB

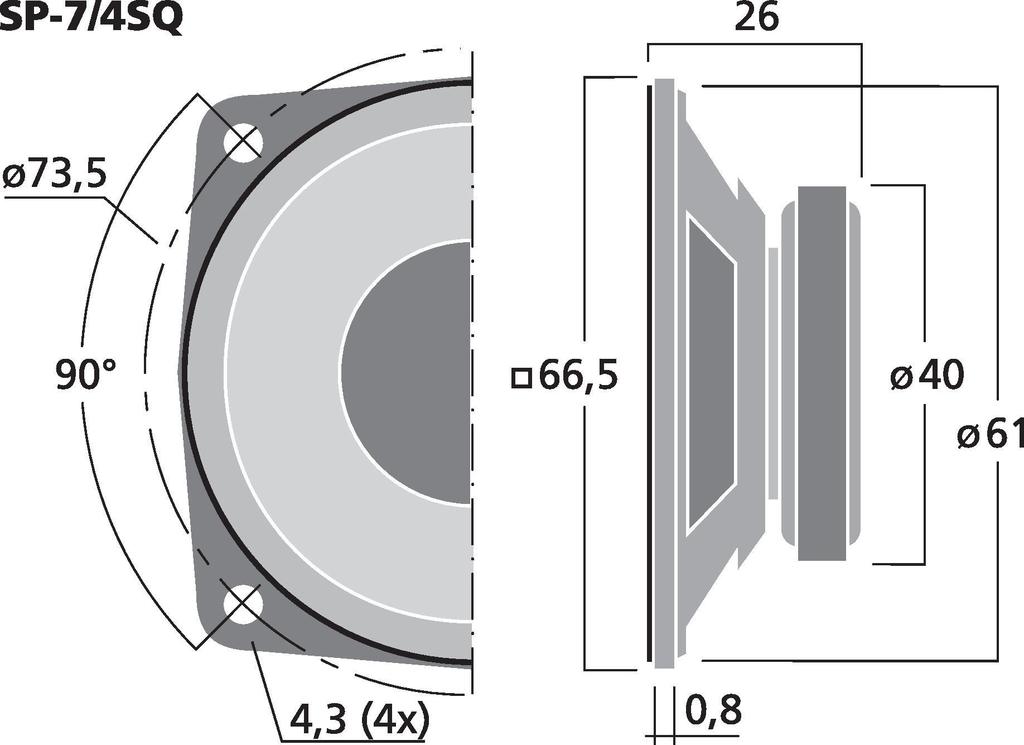

Magnet diameter	Ø 40 mm
Mounting cutout	Ø 61 mm
Mounting depth	25.2 mm
Mounting hole diameter	Ø 73.5 mm
Dimensions	66.5 x 66.5 x 26 mm
Width	66.5 mm
Height	66.5 mm
Depth	26 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	90 g
Packing unit	1
Packaging dimensions (W x H x L)	0.07 x 0.03 x 0.07 m
Gross weight	0.1 kg
Net weight	0.09 kg

EAN code	4007754137729
Net weight	0.09 kg

Downloads

Accessories for SP-7/4SQ

Order no.: 0122240

MDM-5

Speaker foam sealing tape, 5 x 150 cm

Description:
speaker foam sealing tape

Type:
self-adhesive

Colour:
black

Order no.: 0122240

MDM-5

Speaker foam sealing tape, 5 x 150 cm

Order no.: 0126430

MZF-8614

Hexagon socket wood screws

Description:
wood screws

Type:
hexagon socket, self-cutting

Colour:
black

Order no.: 0126430

MZF-8614

Hexagon socket wood screws

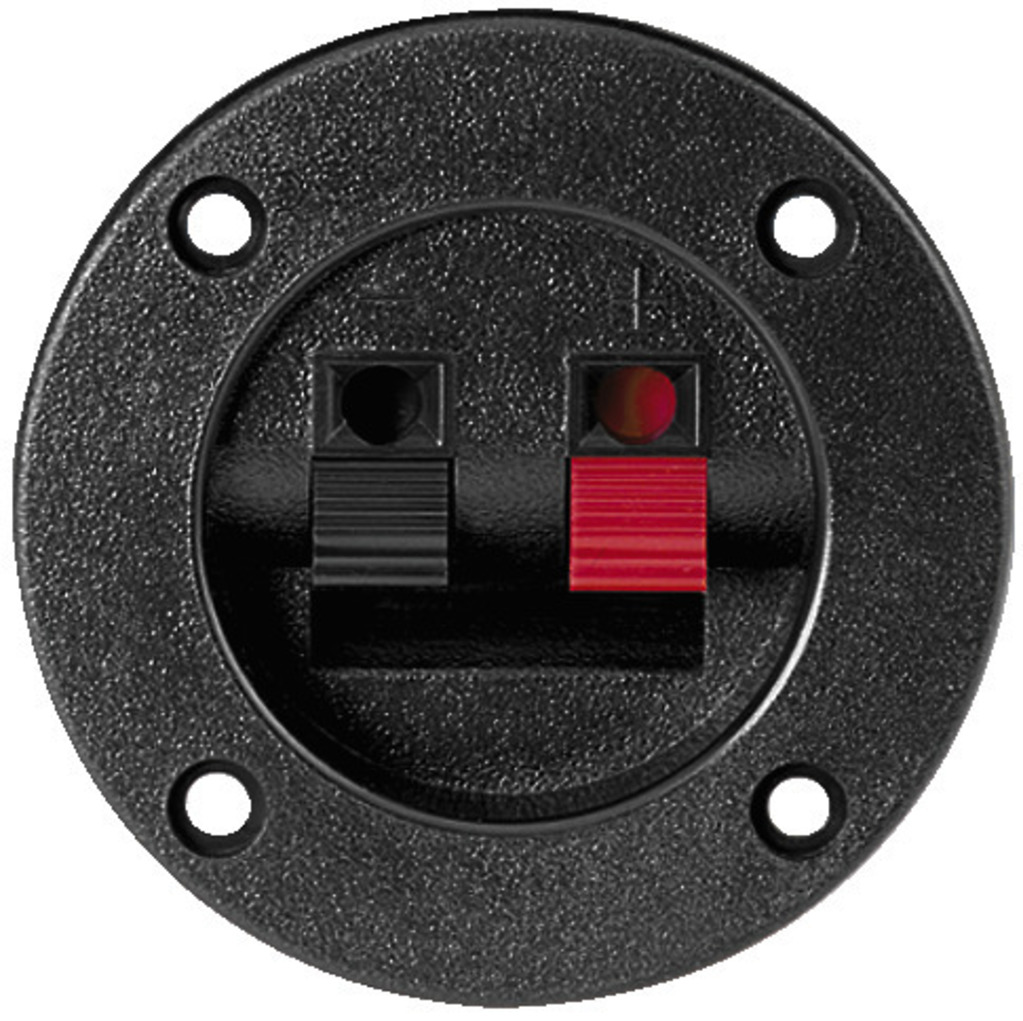

Order no.: 0121440

ST-930

Spring-loaded speaker terminal

Description:
spring-loaded speaker terminal

Type:
round

Colour:
black

Order no.: 0121440

ST-930

Spring-loaded speaker terminal
