About
Universal speaker, 4 W, 8 Ω
- Soft inverse suspension
- Slimline design
Specifications
| Impedance (Z) | 8 Ω |

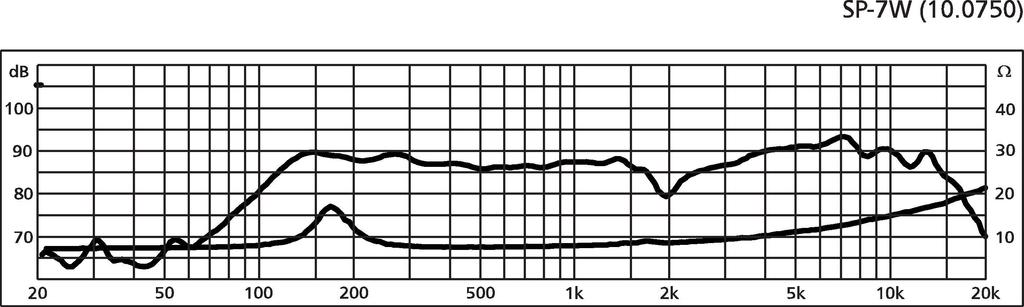

| Frequency range | f3-10,000 Hz |
| Resonant frequency (fs) | 160 Hz |
| Power rating (RMS) | 4 W |
| Peak music power output (MAX) | 7 W |
| SPL | 86 dB/W/m |
| Magnet weight | 85 g |

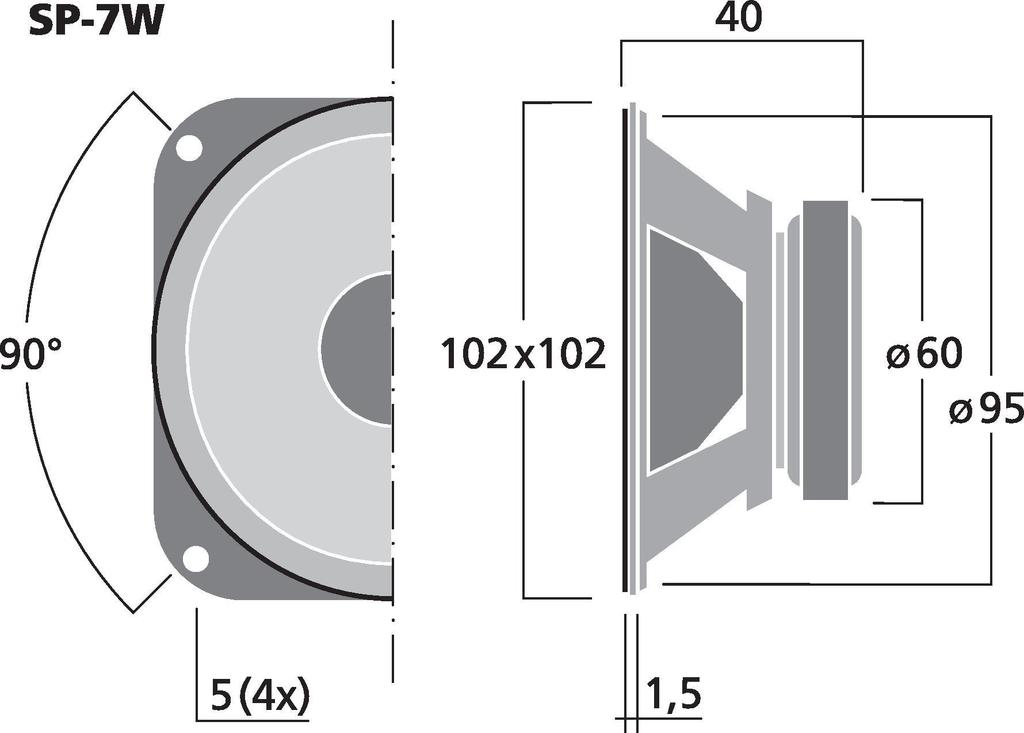

| Magnet diameter | Ø 60 mm |
| Mounting cutout | Ø 95 mm |
| Mounting depth | 38.5 mm |
| Dimensions | 102 x 102 x 40 mm |
| Width | 102 mm |
| Height | 102 mm |
| Depth | 40 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.29 kg |
| Packing unit | 1 |
| Type of speaker | 4" |
| Packing dimensions (W x H x L) | 0.105 x 0.045 x 0.105 m |
| Gross weight | 0.313 kg |
| Net weight | 0.293 kg |
Accessories for SP-7W
Order no.: 0122240
Speaker foam sealing tape, 5 x 150 cm
Order no.: 0121090
Speaker mounting set
Order no.: 0126430
Hexagon socket wood screws
Order no.: 0122080
Speaker terminal
