| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | f3-8,000 Hz |
| Resonant frequency (fs) | 88 Hz |
| Power rating (RMS) | 150 W |
| Peak music power output (MAX) | 300 W |
| SPL | 96 dB/W/m |
| Suspension compl. (Cms) | 0.16 mm/N |
| Moving mass (Mms) | 20 g |
| Mech. Q factor (Qms) | 4.12 |
| Electr. Q factor (Qes) | 0.48 |
| Total Q factor (Qts) | 0.43 |
| Equivalent volume (Vas) | 12 l |
| DC resistance (Re) | 6.9 Ω |
| Force factor (BxL) | 12.60 Tm |
| Voice coil induct. (Le) | 0.6 mH |
| Voice coil diameter | Ø 50 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 1.25 mm |
| Eff. cone area (Sd) | 219 cm2 |
| Magnet weight | 1.1 kg |
| Magnet diameter | Ø 140 mm |

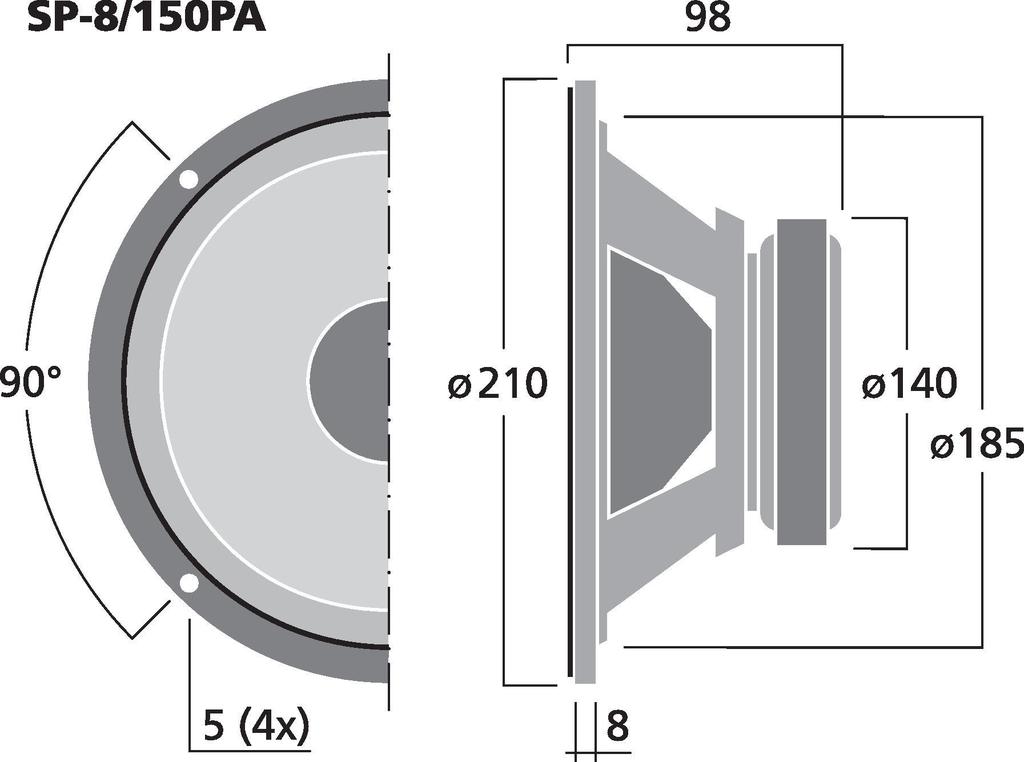

| Mounting cutout | Ø 185 mm |
| Mounting depth | 90 mm |
| Dimensions | Ø 210 mm x 98 mm |
| Outside diameter | Ø 210 mm |
| Width | Ø 210 mm |
| Height | Ø 210 mm |
| Depth | 98 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2.965 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
| Packaging dimensions (W x H x L) | 0.27 x 0.135 x 0.27 m |
| Gross weight | 3.3 kg |
| Net weight | 2.965 kg |
| EAN code | 4007754073706 |
| Net weight | 2.965 kg |
