Order no.: 0161540

SPE-82/WS

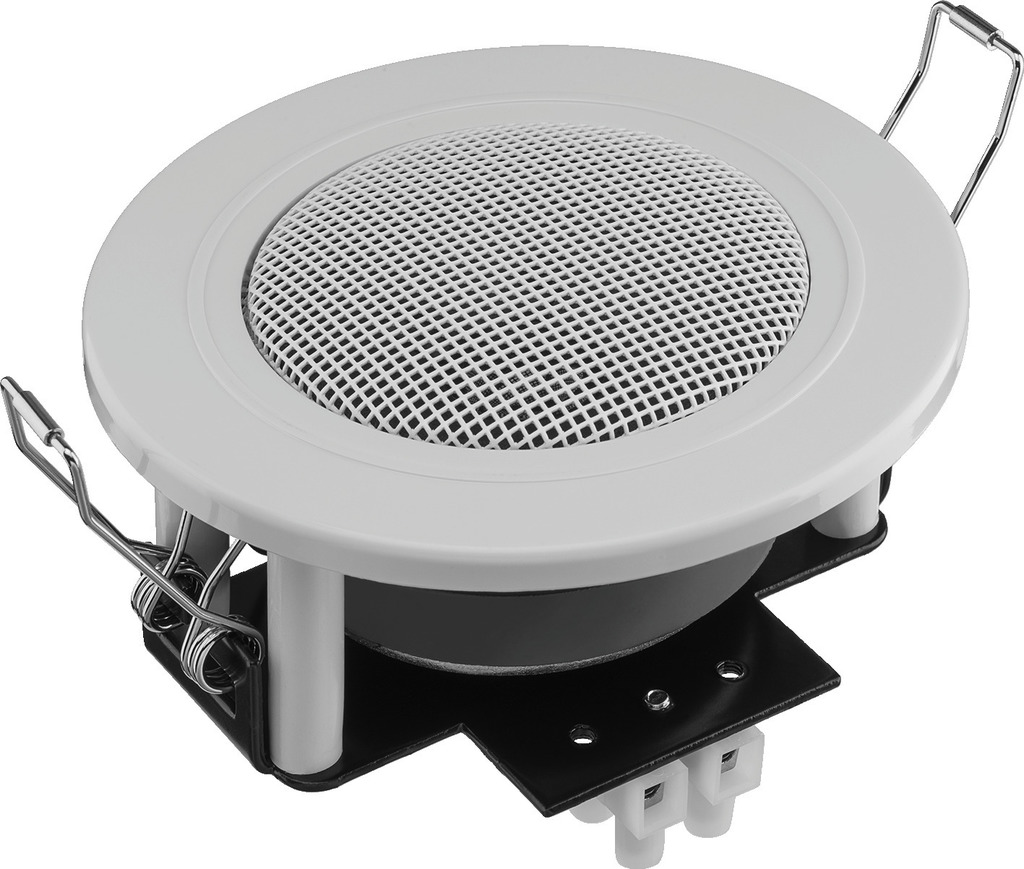

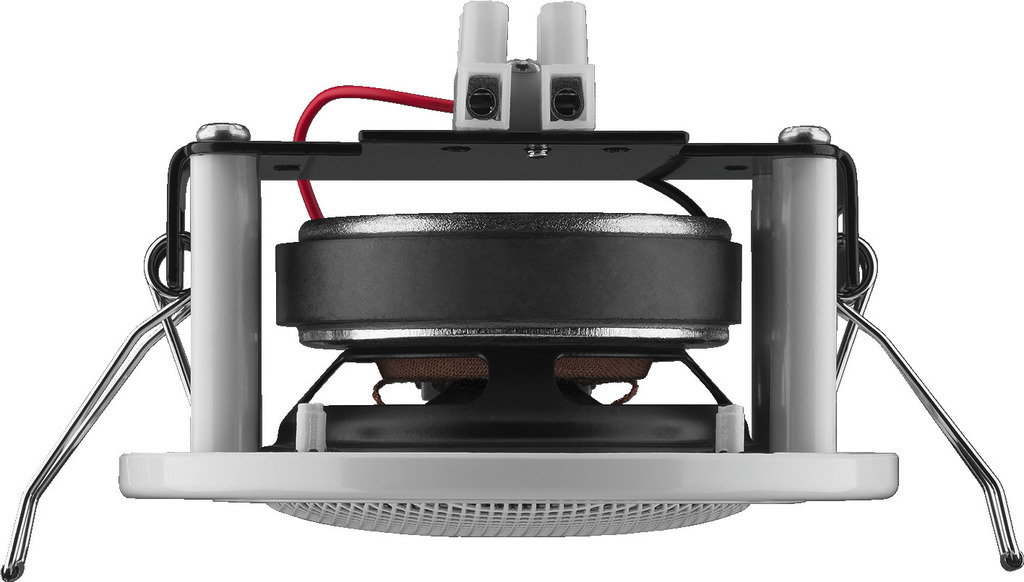

Small flush-mount speaker, 6 W, 4 Ω

White (WS) cover
Similar design to standard flush-mounted halogen lights
Suitable for speech and background music, very consistent frequency response
Quick-mounting facility

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Small flush-mount speaker, 6 W, 4 Ω

White (WS) cover
Similar design to standard flush-mounted halogen lights
Suitable for speech and background music, very consistent frequency response
Quick-mounting facility

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z)	4 Ω
Transmission technology	cable
Frequency range	130-20,000 Hz
Power rating (RMS)	6 W
Peak music power output (MAX)	12 W
SPL	87 dB/W/m

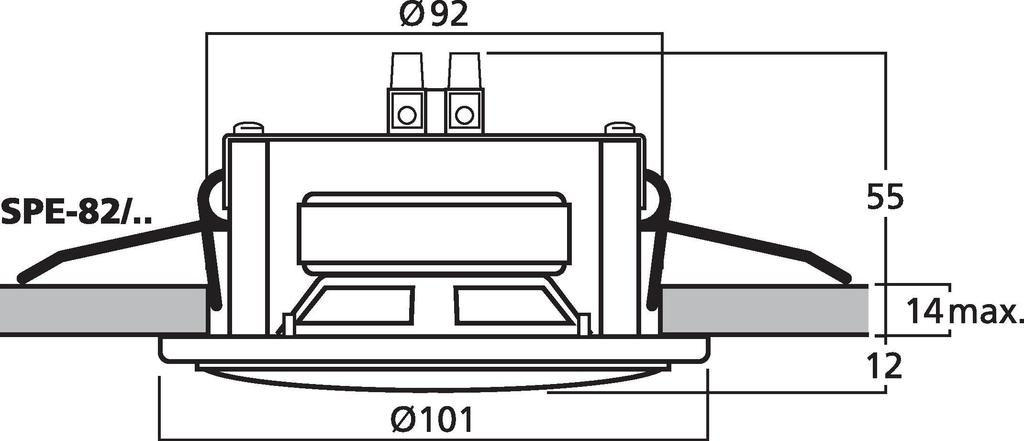

Mounting cutout	Ø 96 mm
Mounting depth	57 mm
Dimensions	Ø 100 mm x 57 mm
Outside diameter	Ø 100 mm
Width	Ø 100 mm
Height	Ø 100 mm
Depth	57 mm
Colour	white/black
Admiss. ambient temp.	0-40 °C
Weight	340 g
Packing unit	1
Type of speaker	75
Packaging dimensions (W x H x L)	0.11 x 0.085 x 0.11 m
Gross weight	0.426 kg
Net weight	0.37 kg

EAN code	4007754157383
Net weight	0.37 kg

Downloads

Accessories for SPE-82/WS

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m

Intended use:
signal, 100 V PA, alarm, communication

Cable specification:
J-Y(ST)Y

Length:
100 m

Order no.: 0111340

JYSTY-2208

Signal line, type J-Y(St)Y, 4 x 0.5 mm2, 100 m
