Order no.: 0105640

SPE-8U

Order no.: 0105640

SPE-8U

Hi-fi wall and ceiling speaker for flush mounting, 8 Ω
  • High-quality 2-way coaxial speaker system with excellent sound characteristics

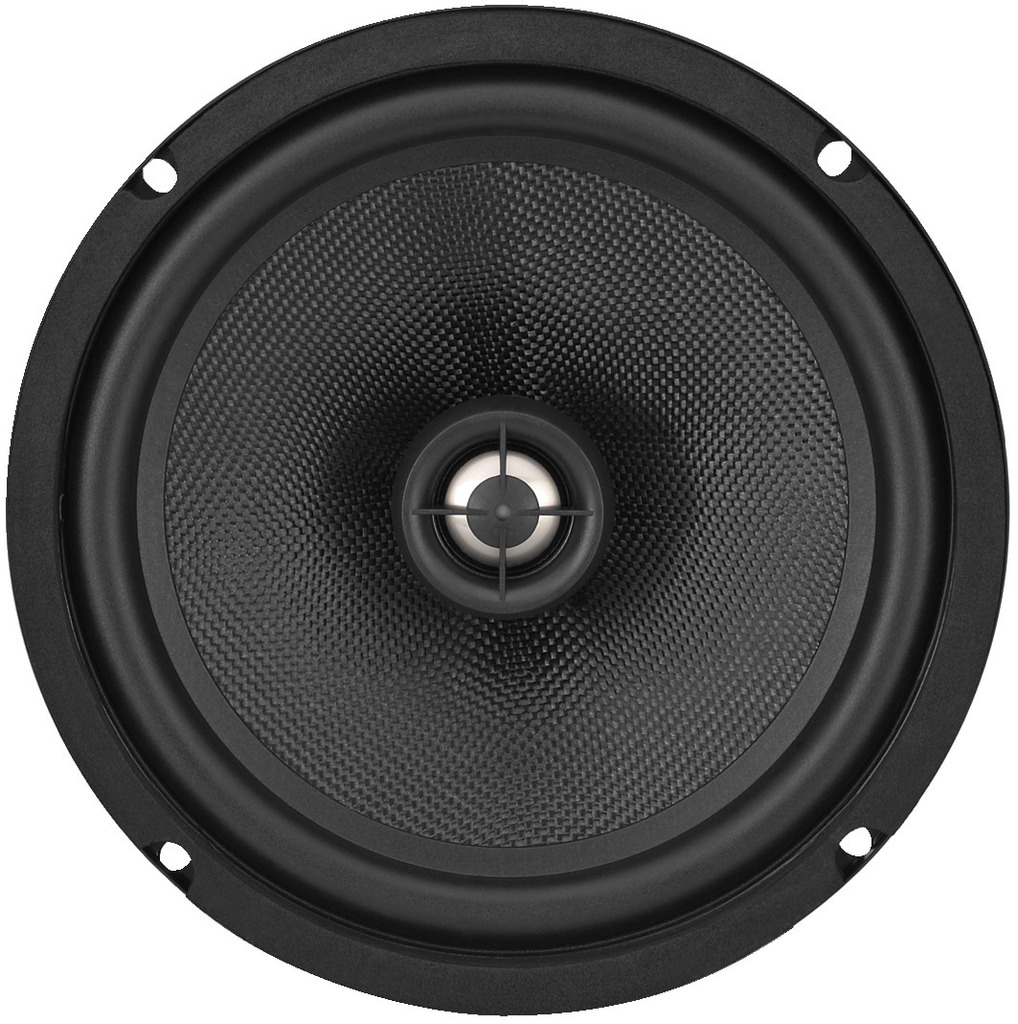

  • 20 cm (8") bass speaker with glass fibre cone, 24 mm (1") dome tweeter with titanium cone

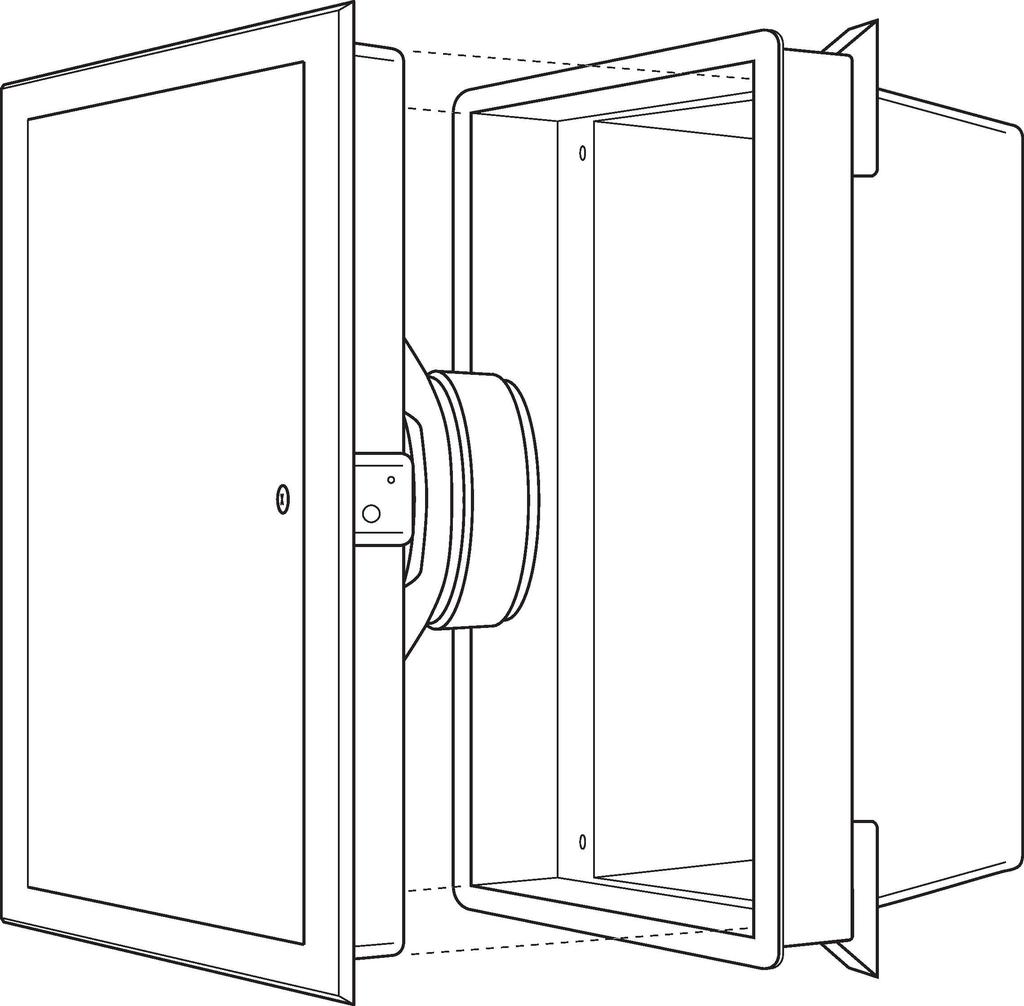

  • Plastic tray for flush mounting in walls or solid ceilings
  • Required hole in wall: approx. 242 x 242 x 100 mm
  • Metal front grille with plastic frame
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

Hi-fi wall and ceiling speaker for flush mounting, 8 Ω
  • High-quality 2-way coaxial speaker system with excellent sound characteristics
  • 20 cm (8") bass speaker with glass fibre cone, 24 mm (1") dome tweeter with titanium cone
  • Plastic tray for flush mounting in walls or solid ceilings
  • Required hole in wall: approx. 242 x 242 x 100 mm
  • Metal front grille with plastic frame
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range 70-20,000 Hz
Resonant frequency (fs) 60 Hz
Power rating (RMS) 30 W
Peak music power output (MAX) 60 W
SPL 89 dB/W/m

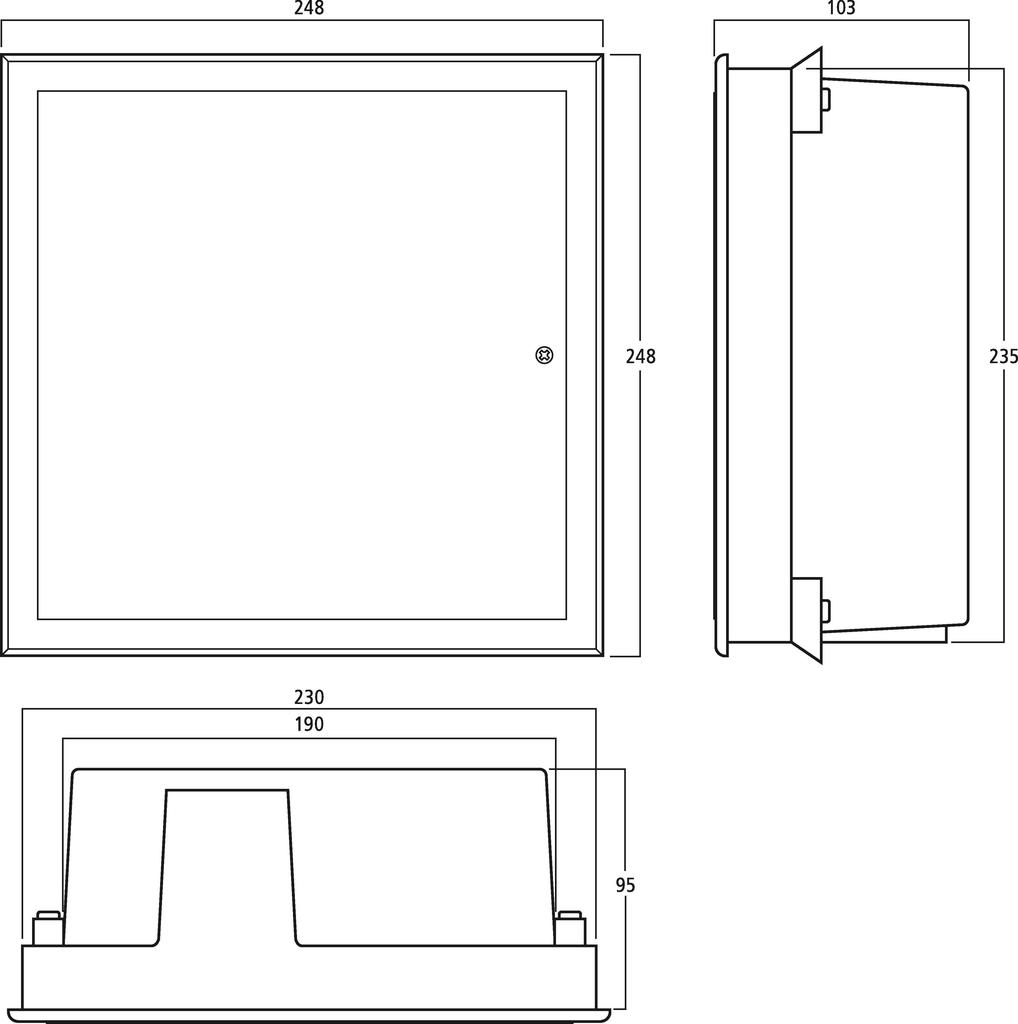

Mounting cutout 242 x 242 mm
Mounting depth 100 mm
Dimensions 248 x 248 x 100 mm
Width 248 mm
Height 248 mm
Depth 100 mm
Colour white
Admiss. ambient temp. 0-40 °C
Weight 1.6 kg
Packing unit 1
Type of speaker 200
Packaging dimensions (W x H x L) 0.265 x 0.12 x 0.265 m
Gross weight 1.78 kg
Net weight 1.62 kg
EAN code 4007754232721
Net weight 1.62 kg
