Order no.: 0103810

SPH-100AL

P260 P490
Order no.: 0103810

SPH-100AL

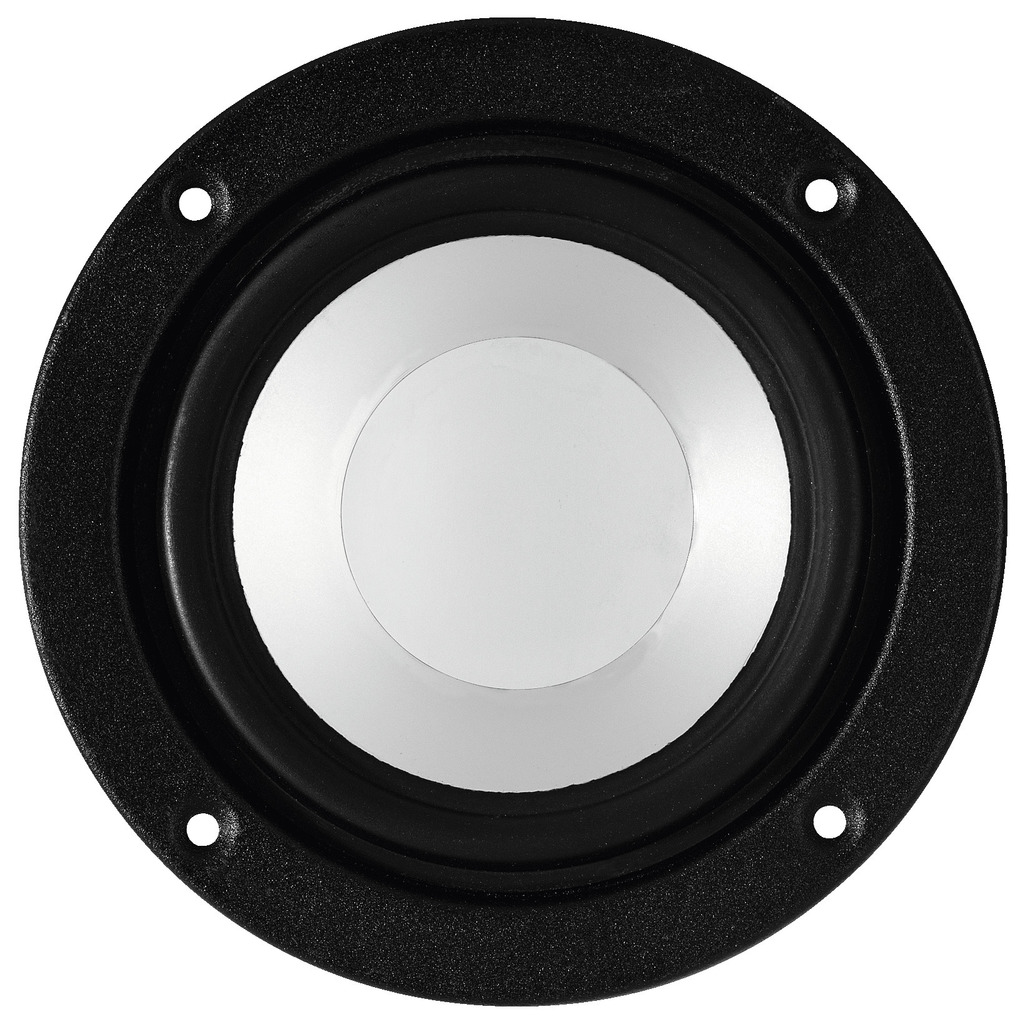

High-tech midrange speaker, 40 W, 8 Ω
  • All-aluminium cone and dustcap
  • Special design for extra reinforcement
  • Extra high cone stability for maximum fine dynamics
  • As a single midrange speaker, an absolutely high-end driver also in D'Appolito arrangements
HOBBY HiFi 06/2019
“Sound and design certainly make this an interesting bass-midrange speaker for compact bookshelf speaker systems.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

High-tech midrange speaker, 40 W, 8 Ω
  • All-aluminium cone and dustcap
  • Special design for extra reinforcement
  • Extra high cone stability for maximum fine dynamics
  • As a single midrange speaker, an absolutely high-end driver also in D'Appolito arrangements
HOBBY HiFi 06/2019
“Sound and design certainly make this an interesting bass-midrange speaker for compact bookshelf speaker systems.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z) 8 Ω
Transmission technology cable

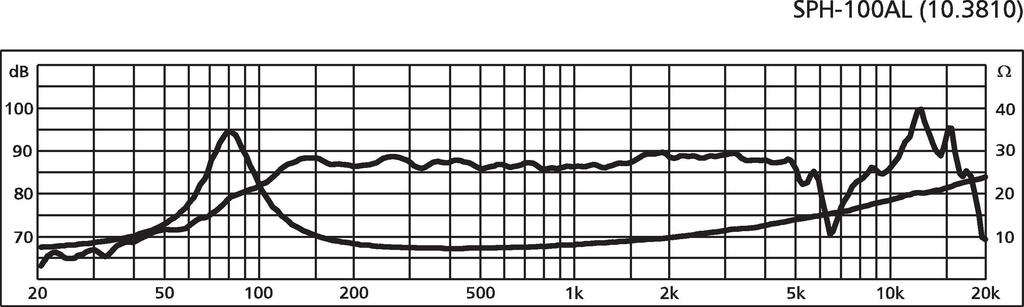

Frequency range fx-5,000 Hz
Resonant frequency (fs) 80 Hz
Power rating (RMS) 40 W
Peak music power output (MAX) 80 W
SPL 87 dB/W/m
Suspension compl. (Cms) 0.79 mm/N
Moving mass (Mms) 4.9 g
Mech. Q factor (Qms) 3.05
Electr. Q factor (Qes) 0.67
Total Q factor (Qts) 0.55
Equivalent volume (Vas) 3.2 l
DC resistance (Re) 6.2 Ω
Force factor (BxL) 4.81 Tm
Voice coil induct. (Le) 0.3 mH
Voice coil diameter Ø 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 1.5 mm
Eff. cone area (Sd) 55 cm2
Magnet weight 250 g

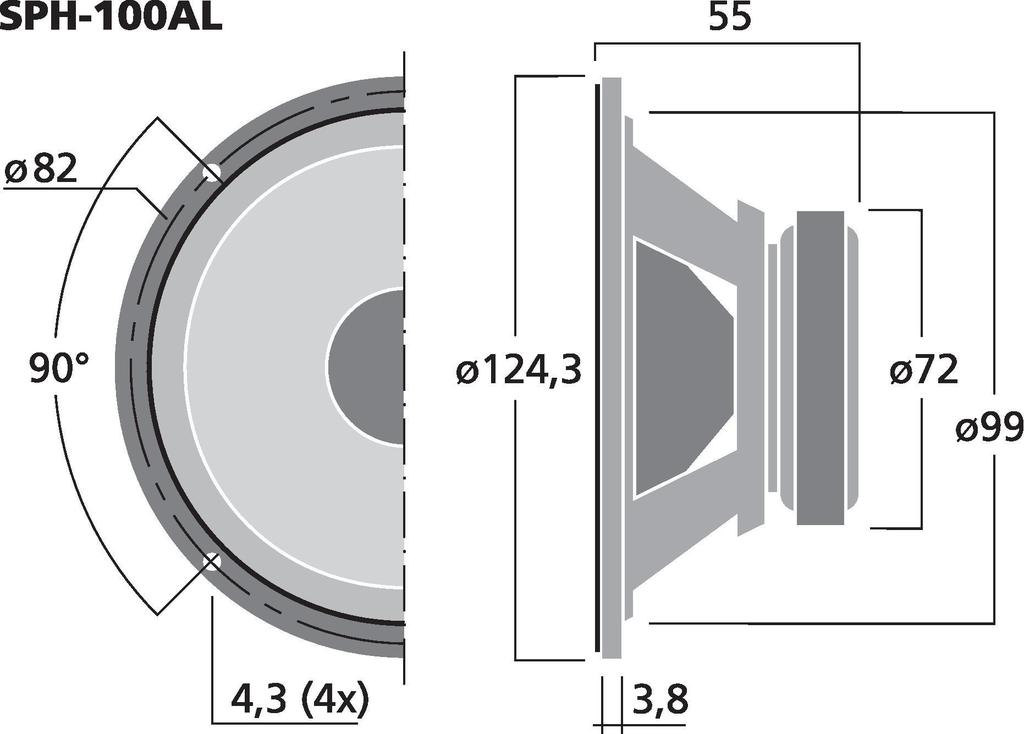

Magnet diameter Ø 72 mm
Mounting cutout Ø 99 mm
Mounting depth 51.2 mm
Mounting hole diameter Ø 82 mm
Dimensions Ø 124.3 mm x 55 mm
Outside diameter Ø 124.3 mm
Width Ø 124.3 mm
Height Ø 124.3 mm
Depth 55 mm
Colour black/white
Admiss. ambient temp. 0-40 °C
Weight 0.63 kg
Packing unit 1
Type of speaker 4"
Packaging dimensions (W x H x L) 0.13 x 0.085 x 0.13 m
Gross weight 0.715 kg
Net weight 0.63 kg
EAN code 4007754143843
Net weight 0.63 kg
