Order no.: 0100110

SPH-170

P200 P490
Order no.: 0100110

SPH-170

Hi-fi bass-midrange speaker, 50 W, 8 Ω
  • Speaker of very high quality with extensive equipment
  • Round aluminium diecast basket with recessed screw head holes
  • Inverse rubber surround
  • Drilled pole core
  • Cone with excellent damping
  • Exceptionally deep bass reproduction for any bass and bass-midrange application
HOBBY HiFi 04/2017
“Incredibly linear and wideband sound pressure frequency response. The ideal speaker for high-quality 2-way systems.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

Hi-fi bass-midrange speaker, 50 W, 8 Ω
  • Speaker of very high quality with extensive equipment
  • Round aluminium diecast basket with recessed screw head holes
  • Inverse rubber surround
  • Drilled pole core
  • Cone with excellent damping
  • Exceptionally deep bass reproduction for any bass and bass-midrange application
HOBBY HiFi 04/2017
“Incredibly linear and wideband sound pressure frequency response. The ideal speaker for high-quality 2-way systems.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z) 8 Ω
Transmission technology cable

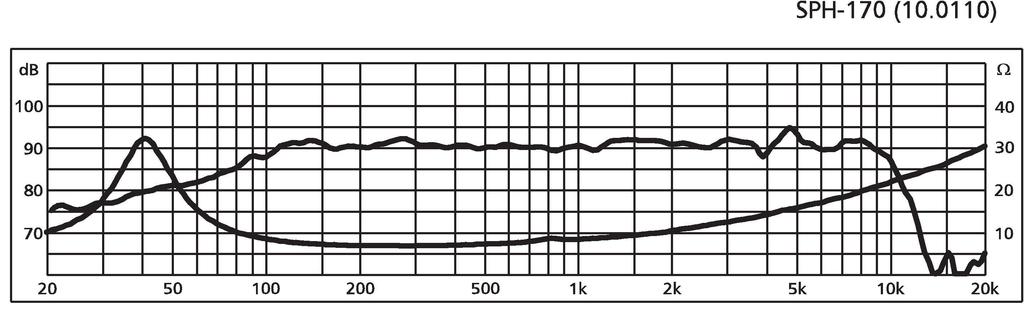

Frequency range f3-5,000 Hz
Resonant frequency (fs) 38 Hz
Power rating (RMS) 50 W
Peak music power output (MAX) 80 W
SPL 90 dB/W/m
Suspension compl. (Cms) 1.43 mm/N
Moving mass (Mms) 12.5 g
Mech. Q factor (Qms) 2.38
Electr. Q factor (Qes) 0.55
Total Q factor (Qts) 0.44
Equivalent volume (Vas) 37 l
DC resistance (Re) 6.2 Ω
Force factor (BxL) 5.90 Tm
Voice coil induct. (Le) 0.45 mH
Voice coil diameter Ø 25 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 3 mm
Eff. cone area (Sd) 137 cm2
Magnet weight 370 g

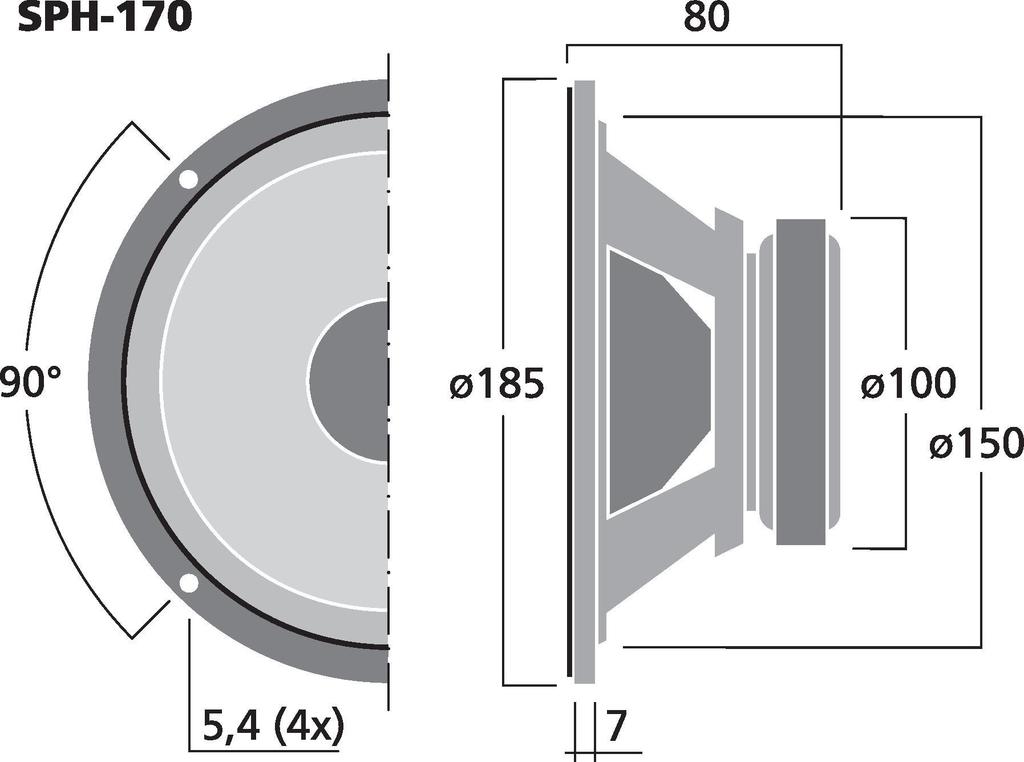

Magnet diameter Ø 100 mm
Mounting cutout Ø 150 mm
Mounting depth 73 mm
Dimensions Ø 185 mm x 80 mm
Outside diameter Ø 185 mm
Width Ø 185 mm
Height Ø 185 mm
Depth 80 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.3 kg
Packing unit 1
Type of speaker 6.75"
Packaging dimensions (W x H x L) 0.195 x 0.09 x 0.195 m
Gross weight 1.42 kg
Net weight 1.3 kg
EAN code 4007754073744
Net weight 1.3 kg
