Order no.: 0101580

SPH-220HQ

Order no.: 0101580

SPH-220HQ

High-quality hi-fi bass speaker, 100 W, 8 Ω
  • 200 mm (8") bass speaker
  • Further development of the classic speaker SPH-212

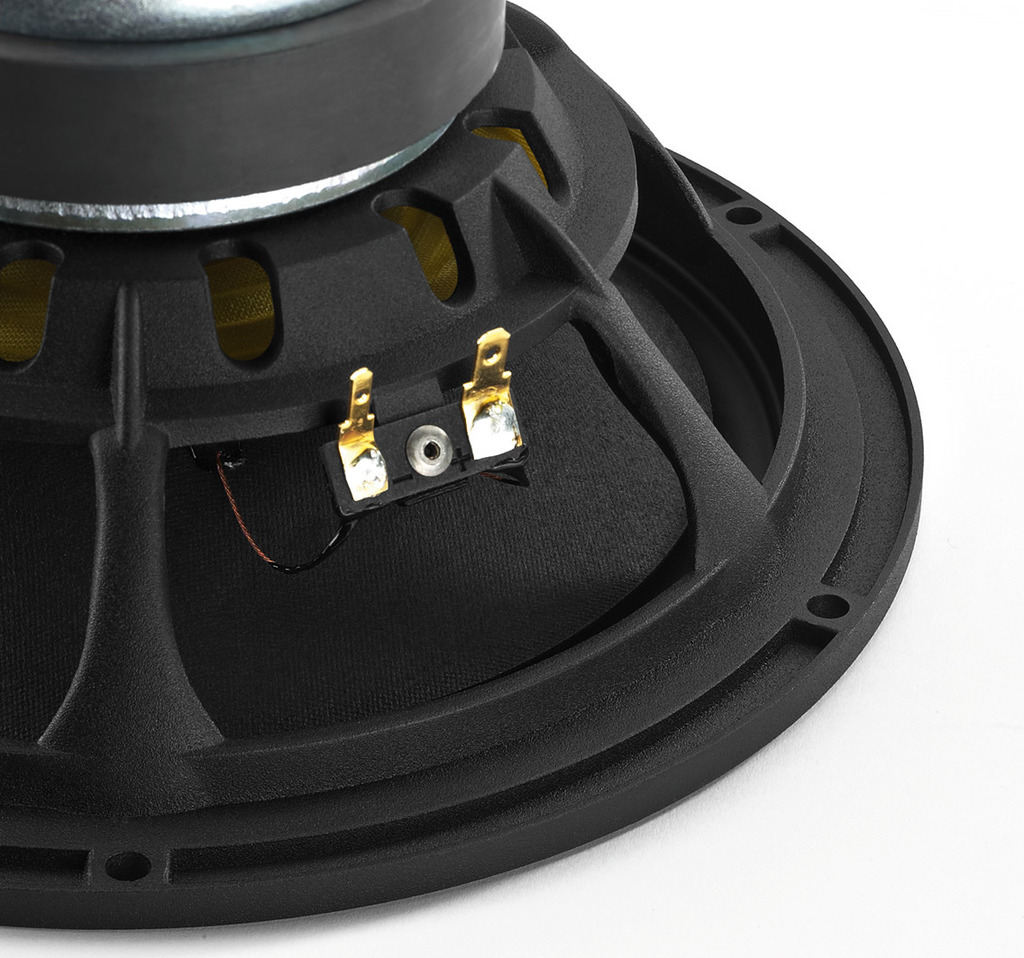

  • Diecast basket
  • Rear-ventilated centering spider and drilled pole core for minimum mechanical loss
  • High-quality coated paper cone of low resonance
  • Low-loss rubber surround
  • Wide and linear radiation range
  • Ideally suited for 3-way systems and also suitable for traditional 2-way systems in an application range of up to 2,000 Hz and beyond
HOBBY HIFI 04/2013
“Excellent sound, powerful bass reproduction and good level stability. It features an outstanding frequency response with perfect linearity. The SPH-220HQ allows for an exceptionally efficient radiation and even the use of a first-order crossover network for an ideal sound.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

About

High-quality hi-fi bass speaker, 100 W, 8 Ω
  • 200 mm (8") bass speaker
  • Further development of the classic speaker SPH-212
  • Diecast basket
  • Rear-ventilated centering spider and drilled pole core for minimum mechanical loss
  • High-quality coated paper cone of low resonance
  • Low-loss rubber surround
  • Wide and linear radiation range
  • Ideally suited for 3-way systems and also suitable for traditional 2-way systems in an application range of up to 2,000 Hz and beyond
HOBBY HIFI 04/2013
“Excellent sound, powerful bass reproduction and good level stability. It features an outstanding frequency response with perfect linearity. The SPH-220HQ allows for an exceptionally efficient radiation and even the use of a first-order crossover network for an ideal sound.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z) 8 Ω
Transmission technology cable

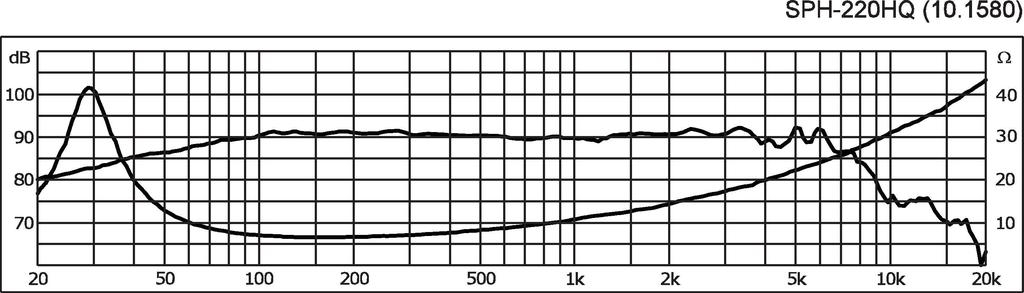

Frequency range f3-4,000 Hz
Resonant frequency (fs) 30 Hz
Power rating (RMS) 100 W
Peak music power output (MAX) 180 W
SPL 90 dB/W/m
Suspension compl. (Cms) 1.06 mm/N
Moving mass (Mms) 24.7 g
Mech. Q factor (Qms) 3.06
Electr. Q factor (Qes) 0.46
Total Q factor (Qts) 0.40
Equivalent volume (Vas) 80 l
DC resistance (Re) 6.1 Ω
Force factor (BxL) 7.63 Tm
Voice coil induct. (Le) 0.9 mH
Voice coil diameter Ø 37 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 5.5 mm
Eff. cone area (Sd) 232 cm2
Magnet weight 550 g
Magnet diameter Ø 100 mm

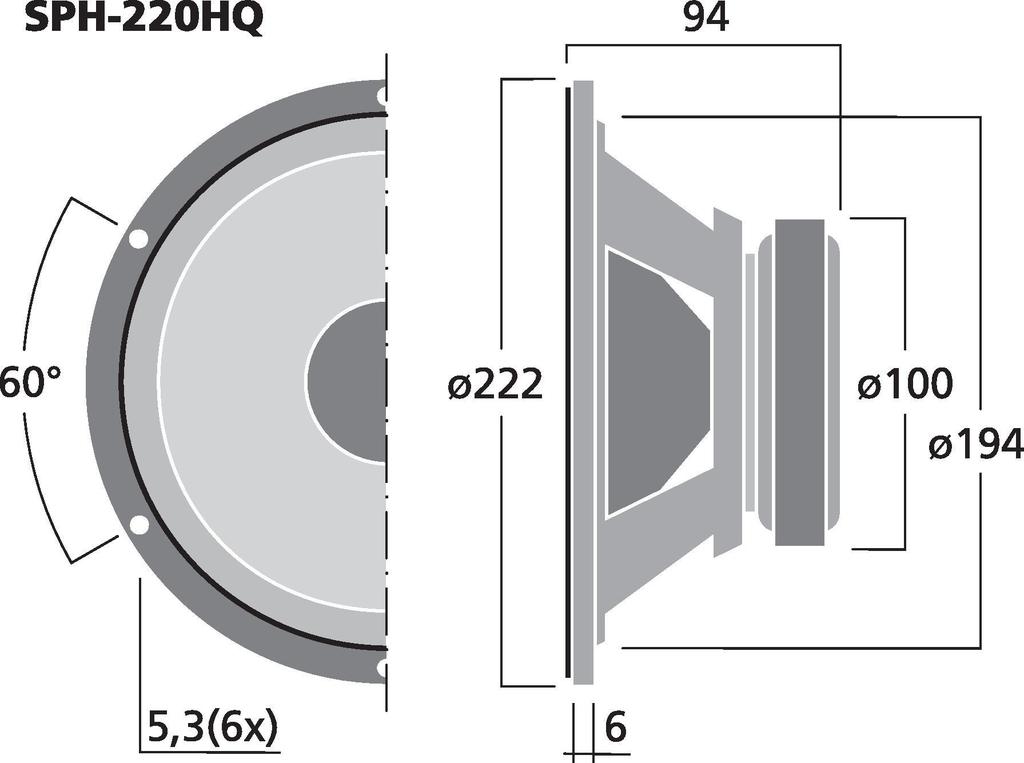

Mounting cutout Ø 194 mm
Mounting depth 88 mm
Mounting hole diameter Ø 212 mm
Dimensions Ø 222 mm x 94 mm
Outside diameter Ø 222 mm
Width Ø 222 mm
Height Ø 222 mm
Depth 94 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.83 kg
Packing unit 1
Type of speaker 8"
Packaging dimensions (W x H x L) 0.25 x 0.18 x 0.25 m
Gross weight 2.25 kg
Net weight 1.834 kg
EAN code 4007754229141
Net weight 1.834 kg
