About
Full range speaker, 30 W, 4 Ω
- Sheet steel basket
- Paper cone with dual cone
- Wide frequency response
- High efficiency
- For PA and hi-fi applications
- Subwoofer support required for hi-fi applications
Specifications
| Impedance (Z) | 4 Ω |

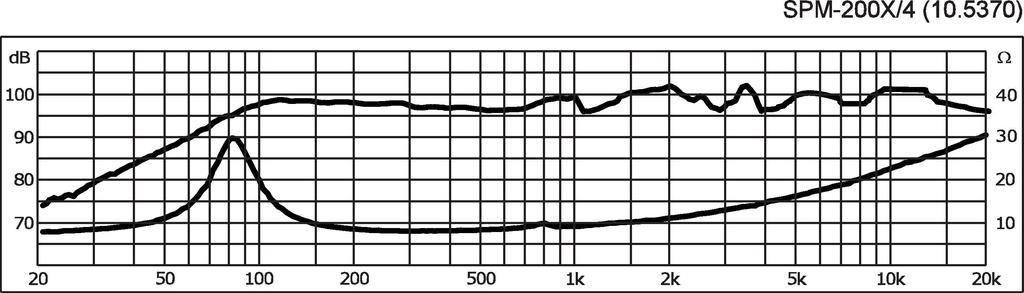

| Frequency range | f3-15,000 Hz |
| Resonant frequency (fs) | 89 Hz |
| Power rating (RMS) | 30 W |
| Peak music power output (MAX) | 60 W |
| SPL | 94 dB/W/m |
| Suspension compl. (Cms) | 0.27 mm/N |
| Moving mass (Mms) | 9.9 g |
| Mech. Q factor (Qms) | 2.69 |
| Electr. Q factor (Qes) | 1.52 |
| Total Q factor (Qts) | 0.97 |
| Equivalent volume (Vas) | 14.9 l |
| DC resistance (Re) | 3.7 Ω |
| Force factor (BxL) | 3.90 Tm |
| Voice coil induct. (Le) | 0.2 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 1 mm |
| Eff. cone area (Sd) | 201 cm2 |
| Magnet weight | 229 g |

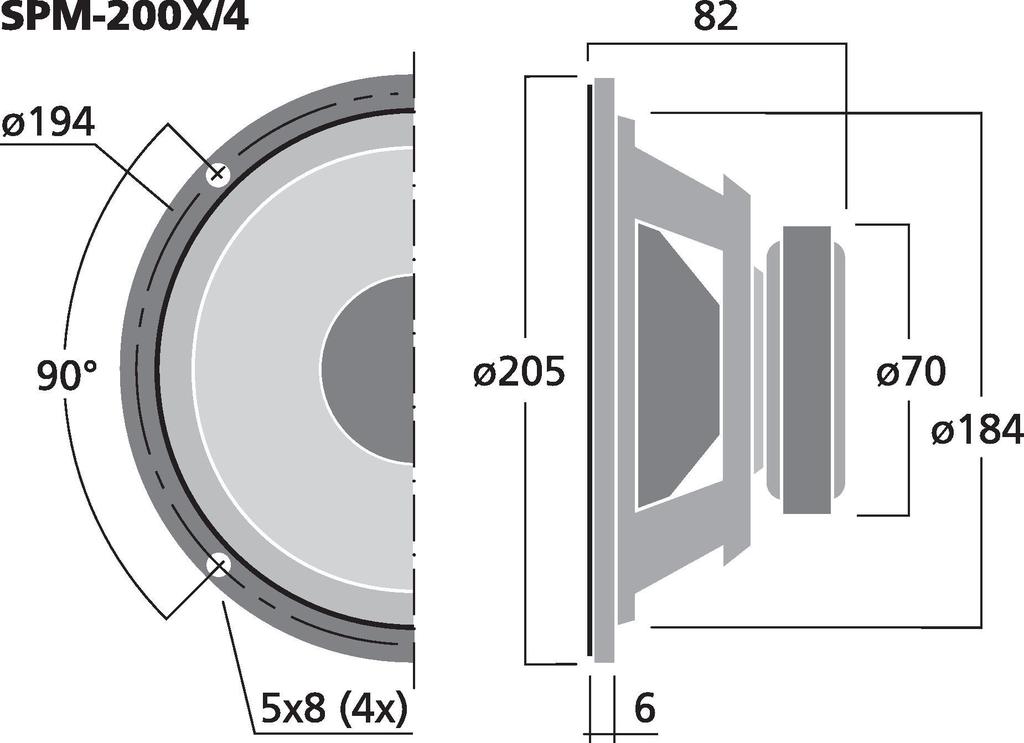

| Magnet diameter | Ø 70 mm |
| Mounting cutout | Ø 184 mm |
| Mounting depth | 76 mm |
| Mounting hole diameter | Ø 194 mm |
| Dimensions | Ø 205 mm x 82 mm |
| Outside diameter | Ø 205 mm |
| Width | Ø 205 mm |
| Depth | 82 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.734 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
| Packing dimensions (W x H x L) | 0.22 x 0.11 x 0.22 m |
| Gross weight | 0.9 kg |
| Net weight | 0.734 kg |
