| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | f3-5,000 Hz |
| Resonant frequency (fs) | 37 Hz |
| Power rating (RMS) | 70 W |
| Peak music power output (MAX) | 150 W |
| SPL | 89 dB/W/m |
| Suspension compl. (Cms) | 0.75 mm/N |
| Moving mass (Mms) | 22 g |
| Mech. Q factor (Qms) | 2.95 |
| Electr. Q factor (Qes) | 0.92 |
| Total Q factor (Qts) | 0.7 |
| Equivalent volume (Vas) | 54 l |
| DC resistance (Re) | 7.2 Ω |
| Force factor (BxL) | 6.50 Tm |
| Voice coil induct. (Le) | 0.7 mH |
| Voice coil diameter | Ø 25.5 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 3 mm |
| Eff. cone area (Sd) | 210 cm2 |
| Magnet weight | 380 g |
| Magnet diameter | Ø 80 mm |

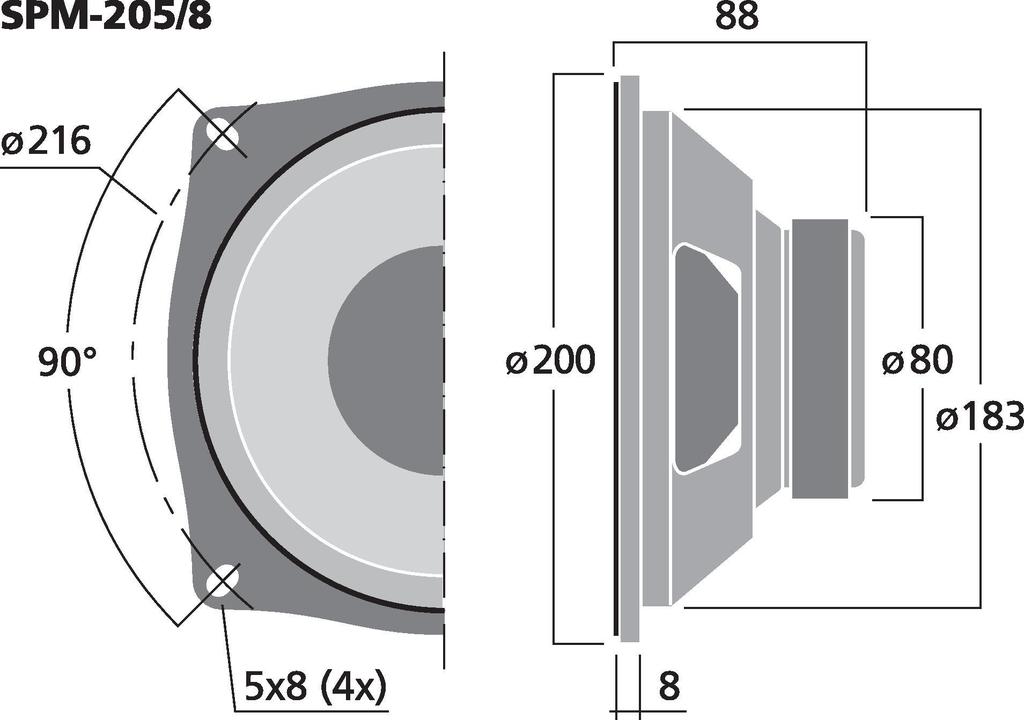

| Mounting cutout | Ø 183 mm |
| Mounting depth | 80 mm |
| Mounting hole diameter | Ø 216 mm |
| Dimensions | Ø 200 mm x 88 mm |
| Outside diameter | Ø 200 mm |
| Width | Ø 200 mm |
| Height | Ø 200 mm |
| Depth | 88 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.4 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
| Packaging dimensions (W x H x L) | 0.215 x 0.125 x 0.215 m |
| Gross weight | 1.5 kg |
| Net weight | 1.4 kg |
| EAN code | 4007754221008 |
| Net weight | 1.4 kg |
