Order no.: 0105560

SPX-200WP

P190 P500 P1410
Order no.: 0105560

SPX-200WP

Hi-fi full range speaker, 50 W, 8 Ω
  • Excellent sound quality
  • Very wide frequency range, slightly rising towards the high frequencies
  • Low-resonance and weatherproof polypropylene cone with rubber surround
  • Very good bass reproduction
  • Ideally suited for application in closed cabinets
Klang+Ton 02/2013
“Classical results in a modern design - an exciting full range speaker. WP actually stands for waterproof. Thus, a speaker suitable for outdoor applications. In the measuring section, the SPX-200WP astonishingly provides a performance exactly like some of my favourite full range speakers.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

Hi-fi full range speaker, 50 W, 8 Ω
  • Excellent sound quality
  • Very wide frequency range, slightly rising towards the high frequencies
  • Low-resonance and weatherproof polypropylene cone with rubber surround
  • Very good bass reproduction
  • Ideally suited for application in closed cabinets
Klang+Ton 02/2013
“Classical results in a modern design - an exciting full range speaker. WP actually stands for waterproof. Thus, a speaker suitable for outdoor applications. In the measuring section, the SPX-200WP astonishingly provides a performance exactly like some of my favourite full range speakers.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Impedance (Z) 8 Ω
Transmission technology cable

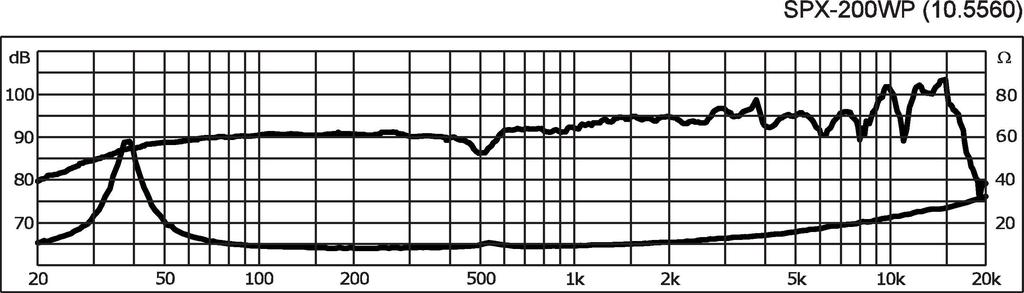

Frequency range f3-18,000 Hz
Resonant frequency (fs) 36 Hz
Power rating (RMS) 50 W
Peak music power output (MAX) 100 W
SPL 89 dB/W/m
Suspension compl. (Cms) 0.95 mm/N
Moving mass (Mms) 19.7 g
Mech. Q factor (Qms) 4.18
Electr. Q factor (Qes) 0.69
Total Q factor (Qts) 0.59
Equivalent volume (Vas) 60.5 l
DC resistance (Re) 7.6 Ω
Force factor (BxL) 6.79 Tm
Voice coil induct. (Le) 0.35 mH
Voice coil diameter Ø 25 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 2 mm
Eff. cone area (Sd) 213 cm2
Magnet weight 564 g
Magnet diameter Ø 96 mm

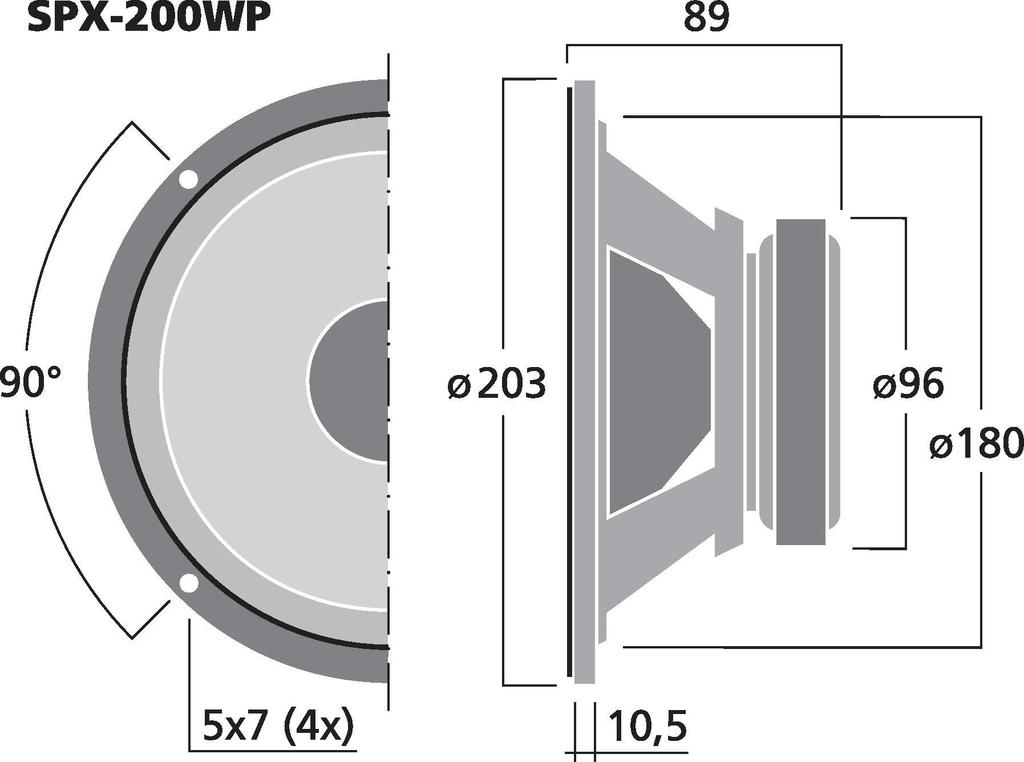

Mounting cutout Ø 180 mm
Mounting depth 78.5 mm
Dimensions Ø 203 mm x 89 mm
Outside diameter Ø 203 mm
Width Ø 203 mm
Height Ø 203 mm
Depth 99 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.32 kg
Packing unit 1
Type of speaker 8"
Packaging dimensions (W x H x L) 0.215 x 0.115 x 0.215 m
Gross weight 1.45 kg
Net weight 1.32 kg
EAN code 4007754230840
Net weight 1.32 kg

Downloads

Accessories for SPX-200WP

Description:
speaker foam sealing tape
Type:
self-adhesive
Colour:
black
Order no.: 0122240
MDM-5
Speaker foam sealing tape, 5 x 150 cm
Login
Description:
speaker mounting set
Nominal value:
M4
Type:
with drive-in nut
Order no.: 0121090
MZF-8604
Speaker mounting set
Login
Description:
wood screws
Type:
hexagon socket, self-cutting
Colour:
black
Order no.: 0126430
MZF-8614
Hexagon socket wood screws
Login
Description:
speaker terminal
Type:
round
Colour:
black
Order no.: 0125400
ST-960GM
Speaker terminal
Login
