Order no.: 0244120

STA-700

Order no.: 0244120

STA-700

Stereo PA amplifier,

for general applications.

Fan cooling
2 level controls
Ground lift switch
Speaker switch-on delay
Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs
1 LED per channel for indicating overload (clip)

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Warning and Safety Instructions

The device is supplied with dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Risk of electric shock!
Do not use this device and disconnect it immediately from the power supply if the device or the power supply cable is visibly damaged, if a defect might have occurred after the device was dropped or suffered a similar accident, if malfunctions occur. Any repairs must be carried out by specialists.
The product is suitable for indoor use only. Protect it against dripping water, splash water and high air humidity (admissible ambient temperature range is 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
The heat generated in the device must be dissipated by air circulation. Never cover the air vents of the housing.
If the device is to be put out of operation definitely, dispose of the product in accordance with local regulations.

continue

About

Stereo PA amplifier,

for general applications.

Fan cooling
2 level controls
Ground lift switch
Speaker switch-on delay
Protective circuit with LED indication for protection against short circuit, overheating and DC voltage overlay at the outputs
1 LED per channel for indicating overload (clip)

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Warning and Safety Instructions

Specifications

Peak output power	800 W
Power rating	400 W
Power rating at 4 Ω	2 x 275 W
Power rating at 8 Ω	2 x 200 W
Channels	2
Inputs	0.85 V/55 kΩ
Frequency range	10-20,000 Hz
Integrated limiter	yes
S/N ratio	85 dB
Crosstalk attenuation	> 43 dB
THD	< 0.05%
Power supply	˜ 230 V/50 Hz/1,100 VA
Mains voltage	230 V
Mains frequency	50 Hz
Power consumption, operation	1,100 VA
Admiss. ambient temp.	0-40 °C
Width	482 mm
Height	96 mm
Depth	296 mm
Rack units, RU	2
Weight	9.4 kg

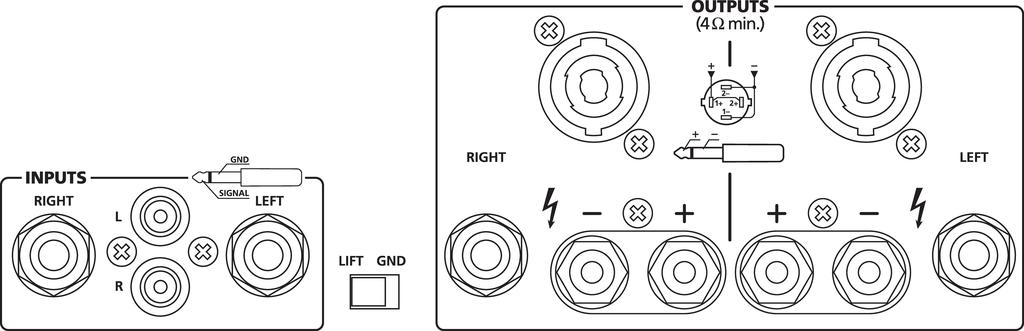

Connections	1 x 6.3 mm jack L/R 1 x RCA L/R 2 x SPEAKER 1 x 6.3 mm jack L/R 2 x pair of screw terminals
Packaging dimensions (W x H x L)	0.37 x 0.14 x 0.51 m
Gross weight	10.28 kg
Net weight	9.7 kg
