Order no.: 1001088

TF0510MR/8

Order no.: 1001088

TF0510MR/8

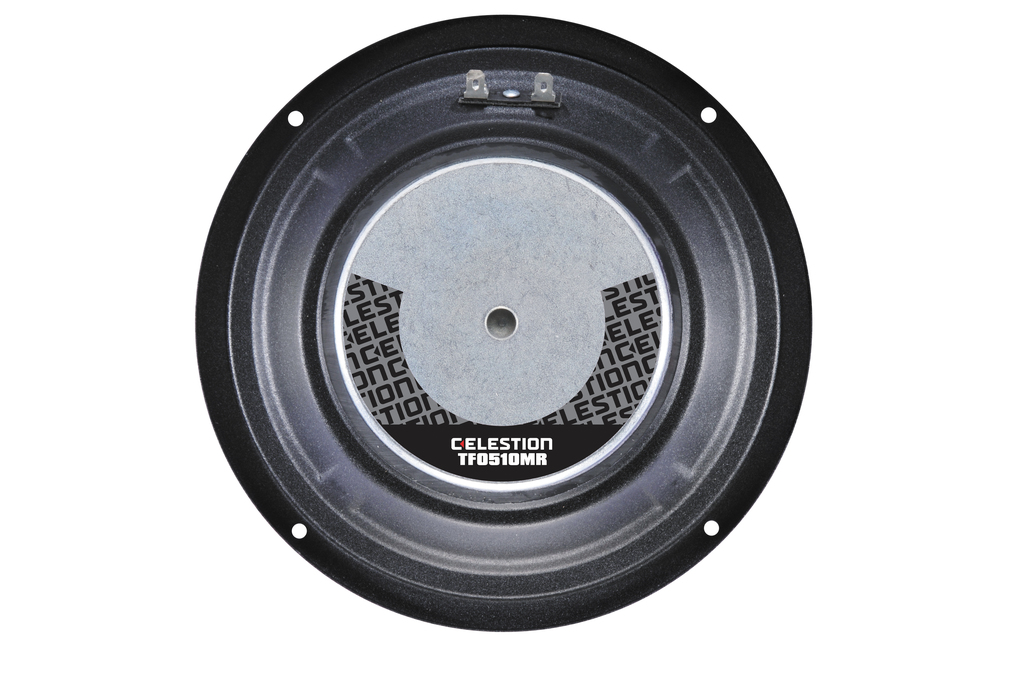

PA midrange speaker, 30 W, 8 Ω

The speakers of the TF series feature an excellent price-performance ratio and at the same time provide excellent sound characteristics. Thus, they are ideally suited for an application in high-performance PA speaker systems which provide a powerful sound.

12.7 cm (5") speaker made of extruded steel
Midrange speaker with ferrite magnet
Closed midrange unit

Manufacturer information:

Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

continue

About

PA midrange speaker, 30 W, 8 Ω

12.7 cm (5") speaker made of extruded steel
Midrange speaker with ferrite magnet
Closed midrange unit

Manufacturer information:

Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Specifications

Impedance (Z)	8 Ω
Transmission technology	cable

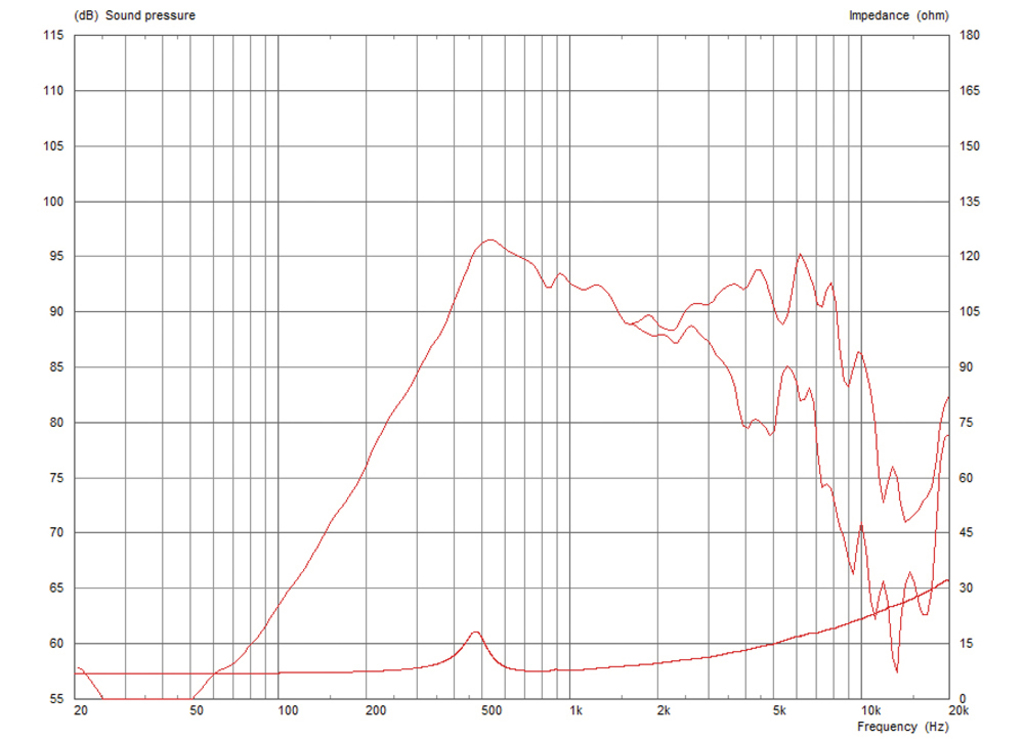

Frequency range	400-8,000 Hz
Resonant frequency (fs)	482 Hz
Power rating (RMS)	30 W
Peak music power output (MAX)	60 W
SPL	93 dB/W/m
DC resistance (Re)	7.87 Ω
Voice coil induct. (Le)	0.2 mH
Voice coil diameter	Ø 25 mm
Voice coil material	copper wire
Voice coil former	polyimide
Magnet weight	370 g
Mounting cutout	Ø 117 mm
Mounting depth	68 mm
Mounting hole diameter	Ø 140 mm
Dimensions	136 x 151 x 68 mm
Width	136 mm
Height	151 mm
Depth	68 mm
Colour	black
Admiss. ambient temp.	0-40 °C
Weight	0.95 kg
Packing unit	1
Type of speaker	5"
Packaging dimensions (W x H x L)	0.152 x 0.102 x 0.152 m
Gross weight	1.07 kg
Net weight	0.95 kg
