Order no.: 0163470

TS-C50-1000/T

P2000 P1516 P1330 P1240 P1544
Order no.: 0163470

TS-C50-1000/T

Weatherproof PA column speaker,
with EN 54-24 certification.
  • 100 V transmission technology
  • 8 x 7.7 cm (3") waterproof full range speaker
  • 4 power taps: 50/30/15/7.5 W
  • Connection via ceramic terminals with thermal fuse in the cabinet
  • 2 x PG9 cable gland
  • Robust, plastic-coated aluminium cabinet with front protective grille
  • The speaker complies with British Standard BS 5839, part 8
  • Supplied with plastic wall bracket for pivoting and tilting
Manufacturer information
ic audio GmbH
Boehringerstr. 14a
68307 Mannheim
Germany
info@ic-audio.com
continue

About

Weatherproof PA column speaker,
with EN 54-24 certification.
  • 100 V transmission technology
  • 8 x 7.7 cm (3") waterproof full range speaker
  • 4 power taps: 50/30/15/7.5 W
  • Connection via ceramic terminals with thermal fuse in the cabinet
  • 2 x PG9 cable gland
  • Robust, plastic-coated aluminium cabinet with front protective grille
  • The speaker complies with British Standard BS 5839, part 8
  • Supplied with plastic wall bracket for pivoting and tilting
Manufacturer information
ic audio GmbH
Boehringerstr. 14a
68307 Mannheim
Germany
info@ic-audio.com

Specifications

Active/passive passive
Transmission technology 100 V
Total power rating 50 W
Power rating (RMS) 50/30/15/7.5 W

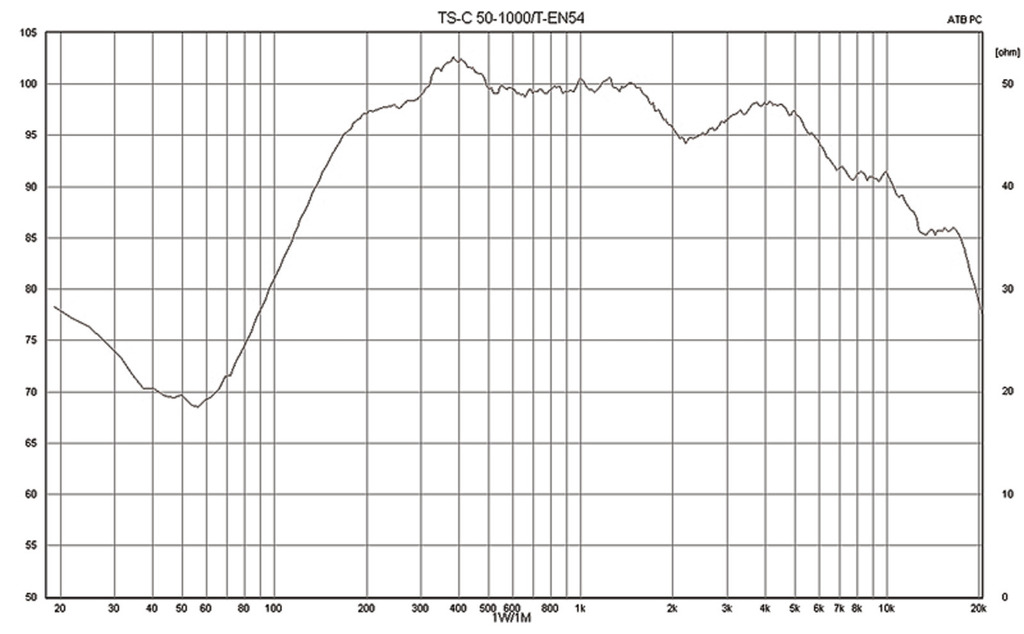

Frequency range 200-20,000 Hz
Full range speaker 8 x 77 mm
Number of speakers 8
Speaker size 7.5 cm (3")
SPL 100 dB/W/m
Max. rated SPL 117 dB

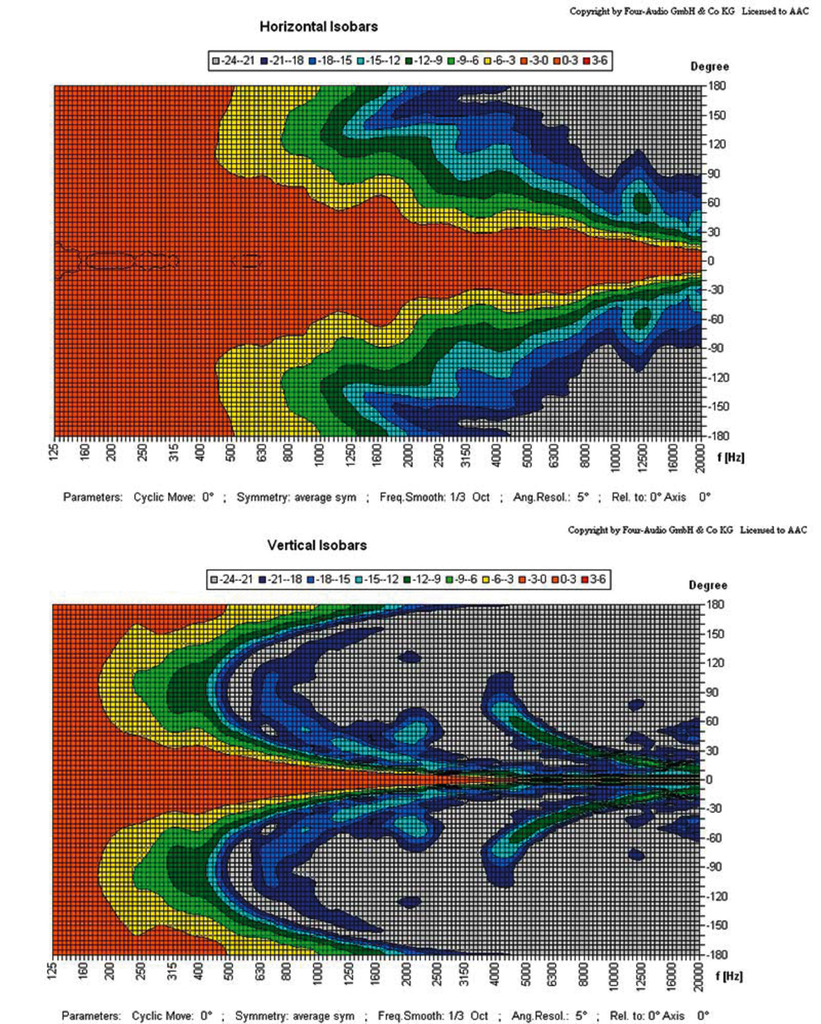

Radiation angle/beam angle H173°/V17°
Radiation angle, horizontal 173°
Radiation angle, vertical 17°
Housing material aluminium
Colour white aluminium, RAL 9006
Mounting device wall bracket
Protection class IP66
Admiss. ambient temp. -20 °C to +90 °C
Dimensions 100 x 971 x 92 mm
Width 100 mm
Height 971 mm
Depth 92 mm
Weight 5.1 kg
Inputs ceramic screw terminals
Packaging dimensions (W x H x L) 0.18 x 0.19 x 1.05 m
Gross weight 5.83 kg
Net weight 5.21 kg
EAN code 4007754258172
Net weight 5.21 kg
