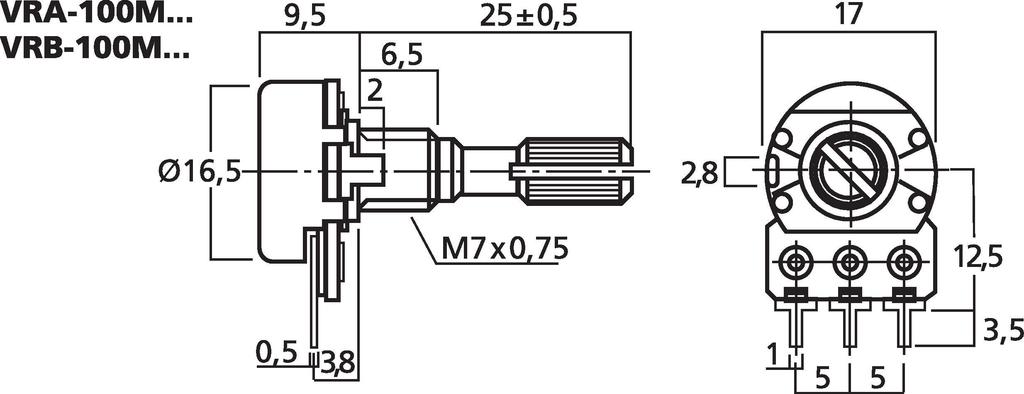

Homepage Products Accessories Energy, Measuring, DIY DIY Order no.: 0012210 VRA-100M20 Order no.: 0012210 VRA-100M20 Potentiometer, mono, 20 kΩ Logarithmic Slotted 6 mm shaft For 18-tooth push-on buttons Nut fixing and PCB solder contacts continue Login Register About Specifications Downloads About Potentiometer, mono, 20 kΩ Logarithmic Slotted 6 mm shaft For 18-tooth push-on buttons Nut fixing and PCB solder contacts Specifications Resistance 20 kΩ Characteristic log. Power rating 0.1 W Insulating resistance < 100 MΩ/ DC 500 V Test voltage ˜ 500 V/1 min. Tracking error ±3 dB, 0/-40 dB Rotation angle 300° ±5° Downloads Datasheet D012180Z Services Product & Purchasing Advice +49 421 4865 512 export@monacor.com Technical project management +49 421 4865 512 export@monacor.com Repair Service +49 40 853 999-717 support.monacor@sertronics.de Training at the MONACOR Academy +49 421 4865 701 academy@monacor.com
