Order no.: 0150290

VSC-100/WS

Order no.: 0150290

VSC-100/WS

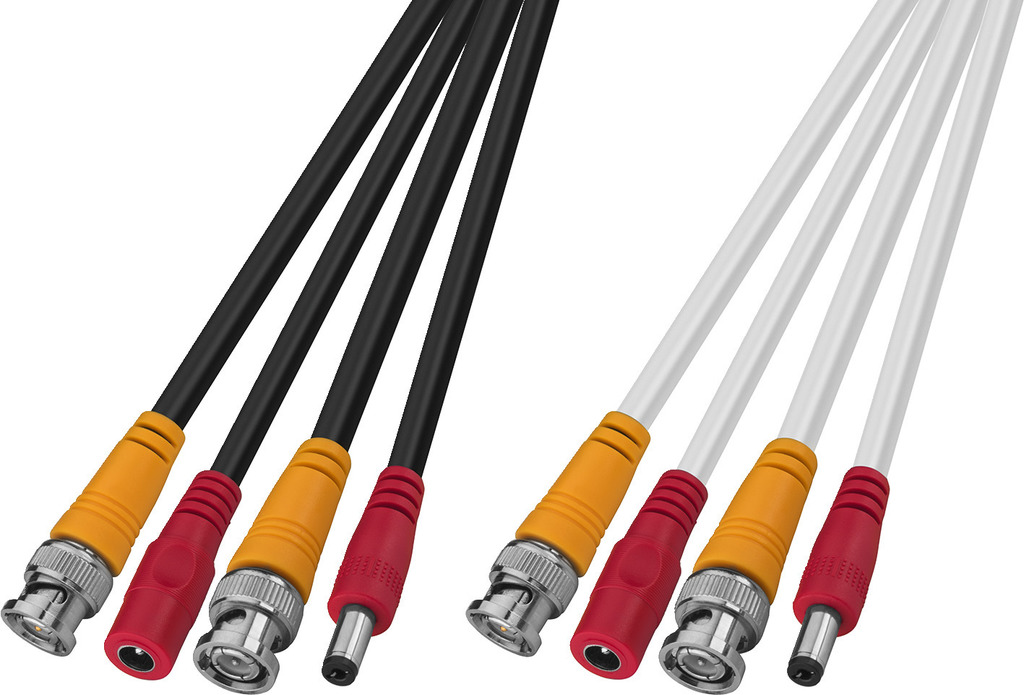

Video combination cable

Particularly suitable for simultaneously connecting video signals and power supply to HD cameras
1 x BNC plug on both ends for video connection, cable material: 75 Ω RG-59/U
1 x low-voltage plug/low-voltage inline jack Ø 5.5/2.1 mm each for connecting a power supply
Length: 10 m

Particularly suitable for connecting HD-SDI cameras to the HD-SDI digital recorders as well as all-in-one digital recorders and for extending video surveillance sets with additional cameras.

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Video combination cable

Particularly suitable for simultaneously connecting video signals and power supply to HD cameras
1 x BNC plug on both ends for video connection, cable material: 75 Ω RG-59/U
1 x low-voltage plug/low-voltage inline jack Ø 5.5/2.1 mm each for connecting a power supply
Length: 10 m

Particularly suitable for connecting HD-SDI cameras to the HD-SDI digital recorders as well as all-in-one digital recorders and for extending video surveillance sets with additional cameras.

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Intended use	video, CCTV, power supply
Connectors	2 x BNC plug, 1 x low-voltage inline jack, 1 x low-voltage plug
Cable specification	RG59/U
Length	10 m
Colour	white
No. of cores	2
Shielding	yes
Impedance	75 Ω
Weight	617 g
