Order no.: 0163590

WALL-05T/WS

P2000

P1980

P490

P990

P1250

Order no.: 0163590

WALL-05T/WS

Pair of 2-way PA speaker systems

Wall speaker with plastic cabinet in white
4 power taps as well as switchable to 8 Ω operation
13 cm (5") bass-midrange speaker and 12 mm (½") dome tweeter
High sound quality and speech intelligibility
Mounting bracket for pivoting and tilting
Connecting terminal with cover

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Pair of 2-way PA speaker systems

Wall speaker with plastic cabinet in white
4 power taps as well as switchable to 8 Ω operation
13 cm (5") bass-midrange speaker and 12 mm (½") dome tweeter
High sound quality and speech intelligibility
Mounting bracket for pivoting and tilting
Connecting terminal with cover

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive	passive
Transmission technology	100 V or low-impedance
Total power rating	80 W
Power rating (RMS)	16/8/4/2 W (100 V) 40 W (8 Ω)
Impedance	8 Ω
Frequency range	80-20,000 Hz
System	2-way
Bass speaker	13 cm (5") bass-midrange speaker
Tweeter	12 mm (½") dome tweeter
Number of speakers	2
Speaker size	13 cm (5")
SPL	89 dB/W/m
Max. rated SPL	104 dB
Radiation angle/beam angle	H: 110°/V: 90°
Radiation angle, horizontal	110°
Radiation angle, vertical	90°
Housing material	plastic
Colour	white
Mounting device	mounting bracket
Protection class	IP65
Admiss. ambient temp.	0-40 °C

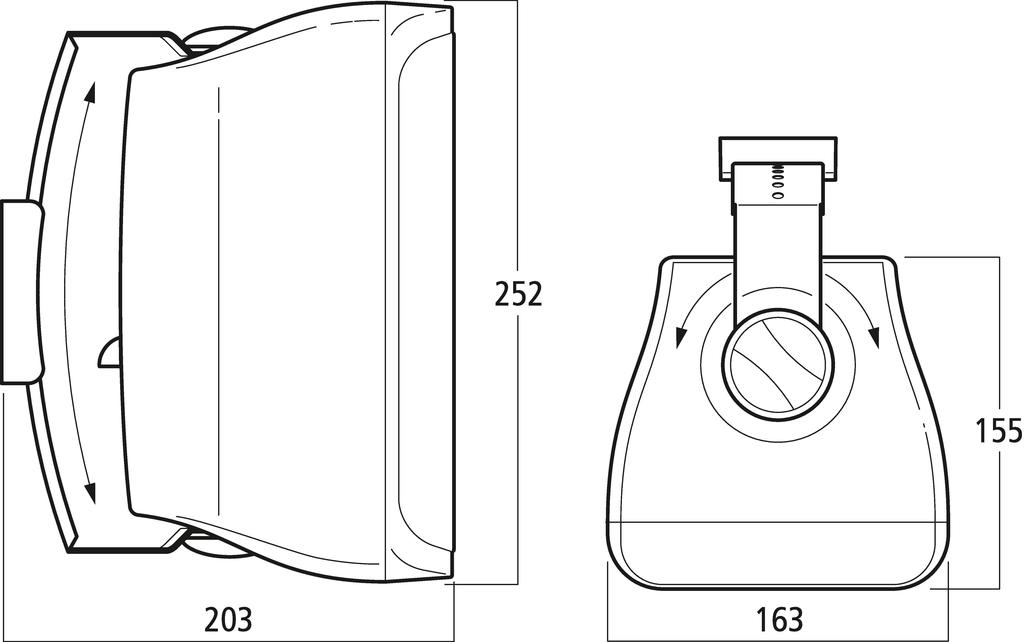

Dimensions	163 x 252 x 203 mm (with bracket)
Width	163 mm
Height	252 mm
Depth	203 mm
Weight	2.6 kg
Inputs	spring-load. speaker term.
Other features	for pivoting and tilting
Packaging dimensions (W x H x L)	0.2 x 0.28 x 0.425 m
Gross weight	5.73 kg
Net weight	5.24 kg

EAN code	4007754261264
Net weight	5.24 kg
