Order no.: 0163600

WALL-06T/SW

Pair of 2-way PA speaker systems

100 V wall speaker with plastic cabinet in black
4 power taps as well as switchable to 8 Ω operation
16 cm (6") bass-midrange speaker and 25 mm (1") dome tweeter
High sound quality and speech intelligibility
Mounting bracket for pivoting and tilting
Connecting terminal with cover

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

Pair of 2-way PA speaker systems

100 V wall speaker with plastic cabinet in black
4 power taps as well as switchable to 8 Ω operation
16 cm (6") bass-midrange speaker and 25 mm (1") dome tweeter
High sound quality and speech intelligibility
Mounting bracket for pivoting and tilting
Connecting terminal with cover

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive	passive
Transmission technology	100 V or low-impedance
Total power rating	100 W
Power rating (RMS)	32/16/8/4 W (100 V) 50 W (8 Ω)
Impedance	8 Ω
Frequency range	70-20,000 Hz
System	2-way
Bass speaker	16 cm (6") bass-midrange speaker
Tweeter	25 mm (1") dome tweeter
Number of speakers	2
Speaker size	16 cm (6")
SPL	90 dB/W/m
Max. rated SPL	106 dB
Radiation angle/beam angle	H: 110°/V: 90°
Radiation angle, horizontal	110°
Radiation angle, vertical	90°
Housing material	plastic
Colour	black
Mounting device	mounting bracket
Protection class	IP65
Admiss. ambient temp.	0-40 °C

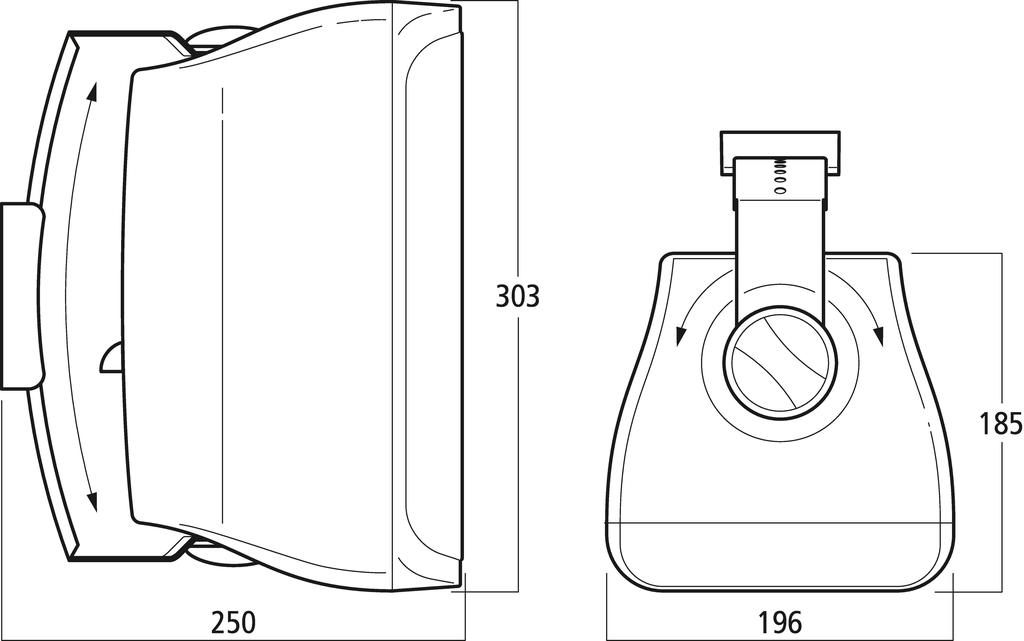

Dimensions	196 x 303 x 250 mm (with bracket)
Width	196 mm
Height	303 mm
Depth	250 mm
Weight	3.5 kg
Inputs	spring-load. speaker term.
Other features	for pivoting and tilting
Packaging dimensions (W x H x L)	0.235 x 0.33 x 0.505 m
Gross weight	7.63 kg
Net weight	6.97 kg

EAN code	4007754261271
Net weight	6.97 kg
