Order no.: 0259014

WAVE-10P

P181 P560
Order no.: 0259014

WAVE-10P

Pure Entertainment!
The PA speaker systems of the WAVE series impress with a great sound and an attractive price. They are suitable for smaller to medium-sized function rooms and are the perfect starting equipment for entry-level DJs. The plastic cabinets of contemporary design are also lightweight and easy to use. Thus, they are ideally suited for mobile applications.
Passive full range speaker system, 300 W, 8 Ω
  • Full range bass-reflex system
  • Robust plastic cabinet
  • 25 cm (10") bass speaker with steel basket
  • 25 mm (1") horn tweeter, 25 mm (1") voice coil diameter
  • PTC tweeter protection
  • M8 threaded inserts at the top and bottom

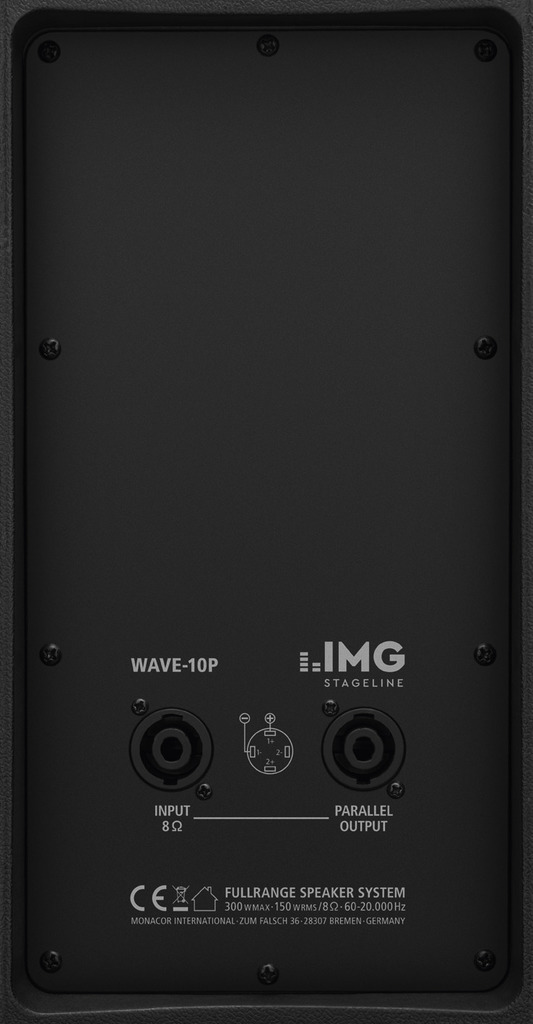

  • 2 x SPEAKER jack, in/out
  • Stand sleeve
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com
continue

About

Pure Entertainment!
The PA speaker systems of the WAVE series impress with a great sound and an attractive price. They are suitable for smaller to medium-sized function rooms and are the perfect starting equipment for entry-level DJs. The plastic cabinets of contemporary design are also lightweight and easy to use. Thus, they are ideally suited for mobile applications.
Passive full range speaker system, 300 W, 8 Ω
  • Full range bass-reflex system
  • Robust plastic cabinet
  • 25 cm (10") bass speaker with steel basket
  • 25 mm (1") horn tweeter, 25 mm (1") voice coil diameter
  • PTC tweeter protection
  • M8 threaded inserts at the top and bottom
  • 2 x SPEAKER jack, in/out
  • Stand sleeve
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Active/passive passive
Transmission technology cable
Total power rating 300 W
Power rating (RMS) 150 W
Impedance 8 Ω
Frequency range 60-20,000 Hz
System 10/2 full range bass-reflex
Bass speaker 25 cm (10") bass speaker
Tweeter 25 mm (1") horn tweeter
Number of speakers 2
Speaker size 25 cm (10")
SPL 95 dB/W/m
Max. rated SPL 117 dB
Radiation angle/beam angle H: 90°/V: 60°
Radiation angle, horizontal 90°
Radiation angle, vertical 60°
Housing material plastic
Colour black
Mounting device M8 threaded inserts, stand sleeve
Admiss. ambient temp. 0-40 °C
Dimensions 300 x 510 x 210 mm
Width 300 mm
Height 510 mm
Depth 250 mm
Weight 7.5 kg
Inputs 1 x SPEAKER
Outputs 1 x SPEAKER, par. out
Packaging dimensions (W x H x L) 0.31 x 0.35 x 0.565 m
Gross weight 8.43 kg
Net weight 7.54 kg
EAN code 4007754274028
Net weight 7.54 kg
