Order no.: 1001153

H1SC-9040

P278 P_CELESTION P10
Order no.: 1001153

H1SC-9040

PA mid-high range horn
  • Durable reinforced ABS plastic horn
  • Driver connection via 35 mm standard thread
  • Recommended crossover frequency: 1.5 kHz
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com
continue

About

PA mid-high range horn
  • Durable reinforced ABS plastic horn
  • Driver connection via 35 mm standard thread
  • Recommended crossover frequency: 1.5 kHz
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Specifications

Description exponential horn
Material ABS
Frequency range 700-20,000 Hz
Crossover frequency 1.5 kHz

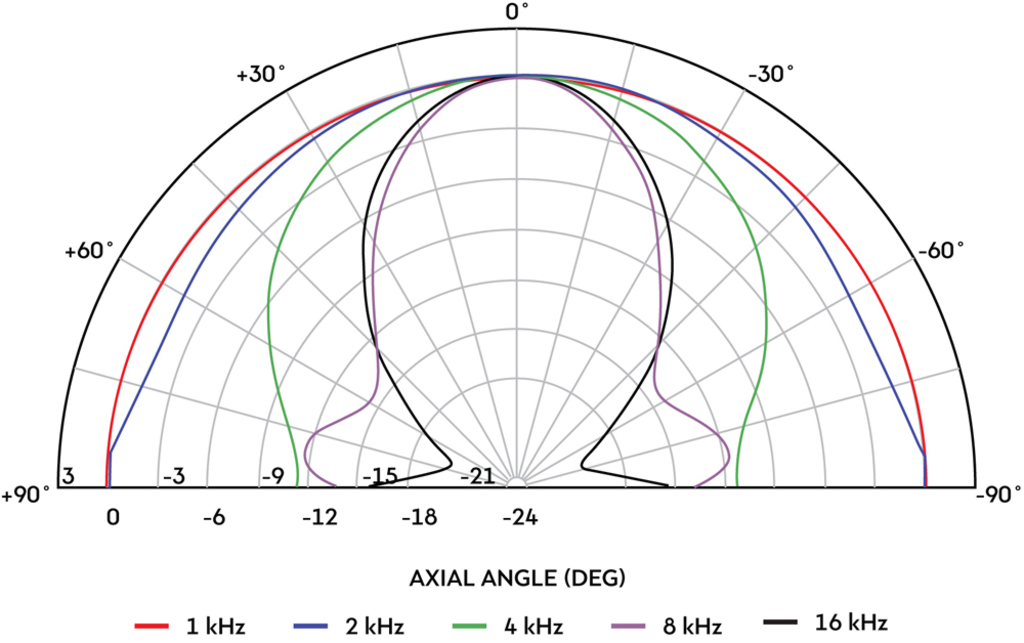

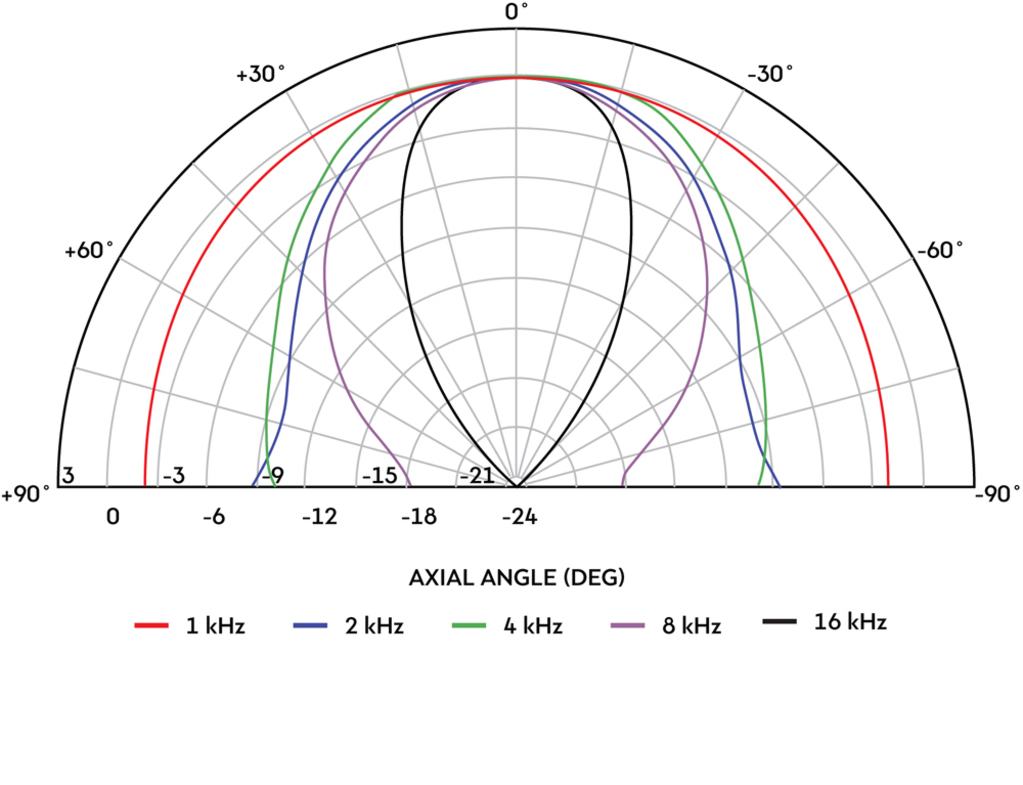

Radiation angle (vert./hor.) 90°/40°
Radiation angle, vertical 40°
Radiation angle, horizontal 90°
Suitable outlet Ø 25.1 mm
Mounting cutout 248 x 74 mm
Mounting depth 145 mm
Dimensions 296 x 104 x 145 mm
Height 296 mm
Width 104 mm
Depth 145 mm
Weight 0.23 kg
EAN code 739894595162
Net weight 0.236 kg
