Order no.: 1001392

MRH-202

P278

P10

Order no.: 1001392

MRH-202

PA mid-high range horn

Horn made of reinforced ABS plastic
Low-resonance due to robust design with a wall thickness of 8 mm
25 mm (1") flange connection with standard 2-hole, 3-hole and 4-hole screw connection
Consistent radiation pattern
Recommended minimum crossover frequency: 1 kHz

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA mid-high range horn

Horn made of reinforced ABS plastic
Low-resonance due to robust design with a wall thickness of 8 mm
25 mm (1") flange connection with standard 2-hole, 3-hole and 4-hole screw connection
Consistent radiation pattern
Recommended minimum crossover frequency: 1 kHz

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description	mid-high range horn
Material	ABS plastic
Frequency range	700-20,000 Hz
Crossover frequency	1,000 Hz
Radiation angle (vert./hor.)	60°/100°
Radiation angle, vertical	60°
Radiation angle, horizontal	100°
Suitable outlet	25 mm

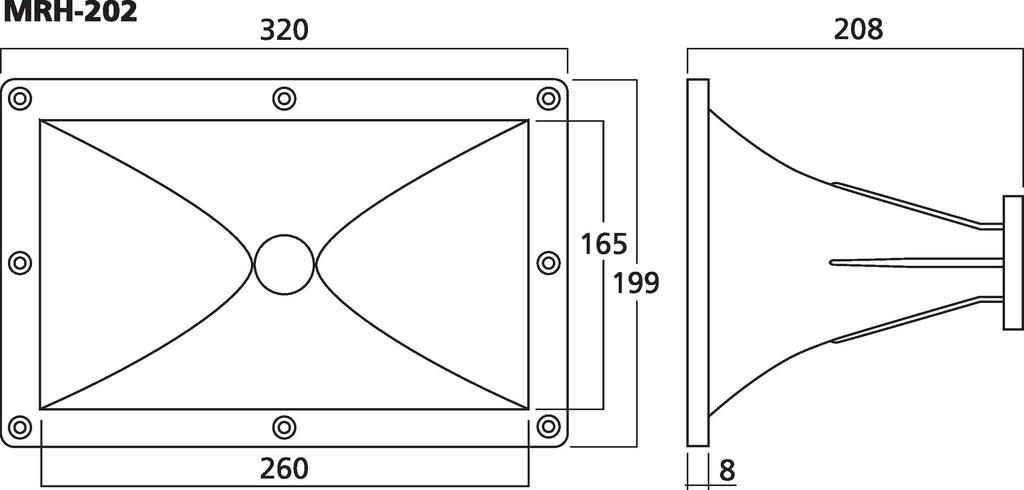

Mounting cutout	260 x 165 mm
Mounting depth	200 mm
Dimensions	318 x 199 x 208 mm
Height	199 mm
Width	318 mm
Depth	208 mm
Weight	0.62 kg

EAN code	4007754428728
Net weight	0.62 kg

Downloads

Accessories for MRH-202

Order no.: 1001069

CDX1-1425/8

PA horn driver, 25 W, 8 Ω

New

Impedance (Z):
8 Ω

Transmission technology:
cable

Frequency range:
2,000-20,000 Hz

Order no.: 1001069

CDX1-1425/8

PA horn driver, 25 W, 8 Ω

Order no.: 1001070

CDX1-1430/8

PA horn driver, 50 W, 8 Ω

New

Impedance (Z):
8 Ω

Transmission technology:
cable

Frequency range:
20-20,000 Hz

Order no.: 1001070

CDX1-1430/8

PA horn driver, 50 W, 8 Ω

Order no.: 1001102

CDX1-1447/8

PA horn driver, 35 W, 8 Ω

New

Impedance (Z):
8 Ω

Transmission technology:
cable

Frequency range:
1,500-20,000 Hz

Order no.: 1001102

CDX1-1447/8

PA horn driver, 35 W, 8 Ω

Order no.: 1001071

CDX1-1720/8

PA horn driver, 50 W, 8 Ω

New

Impedance (Z):
8 Ω

Transmission technology:
cable

Frequency range:
800-20,000 Hz

Order no.: 1001071

CDX1-1720/8

PA horn driver, 50 W, 8 Ω

Order no.: 1001076

CDX1-1730/8

PA horn driver, 40 W, 8 Ω

New

Impedance (Z):
8 Ω

Transmission technology:
cable

Frequency range:
1,200-20,000 Hz

Order no.: 1001076

CDX1-1730/8

PA horn driver, 40 W, 8 Ω

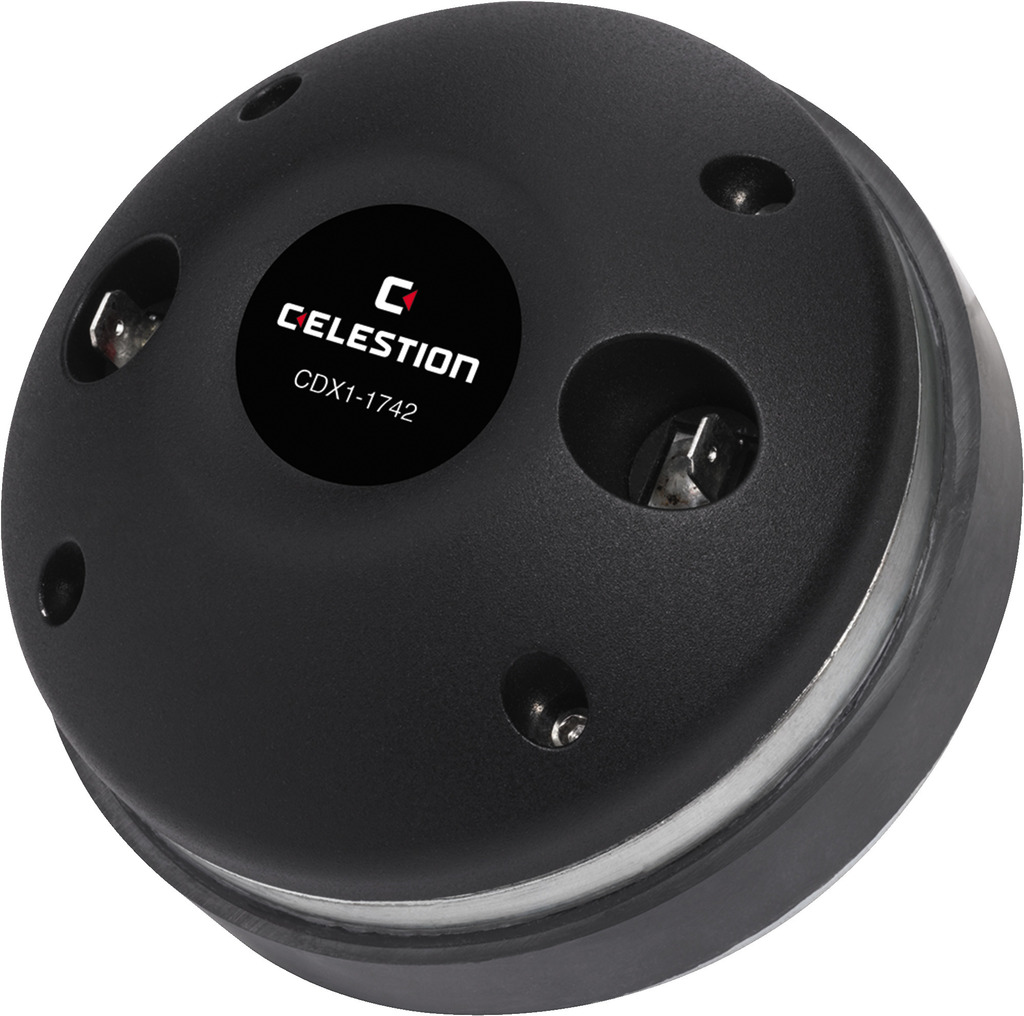

Order no.: 1001103

CDX1-1742/8

PA horn driver, 50 W, 8 Ω

New

Impedance (Z):
8 Ω

Transmission technology:
cable

Frequency range:
1,200-20,000 Hz

Order no.: 1001103

CDX1-1742/8

PA horn driver, 50 W, 8 Ω

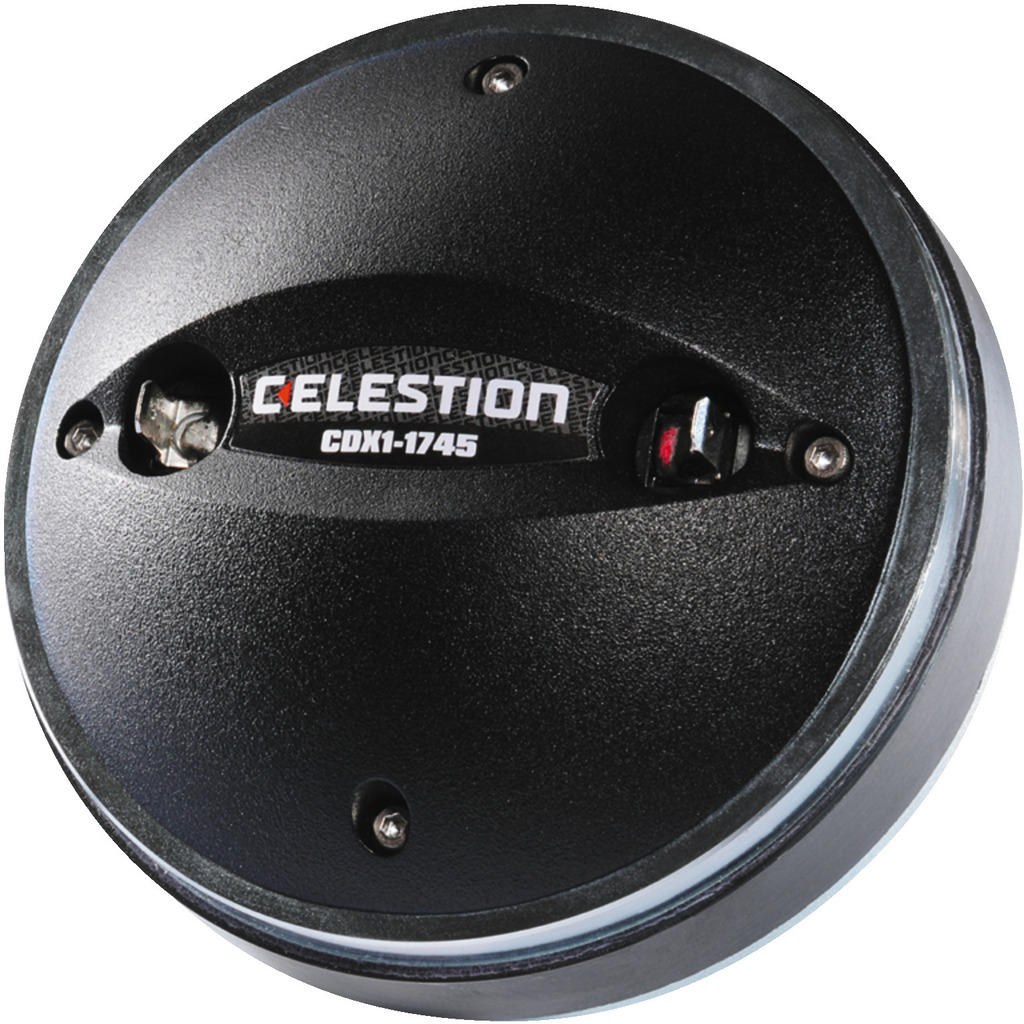

Order no.: 1001105

CDX1-1745/16

PA horn driver, 40 W, 16 Ω

New

Impedance (Z):
16 Ω

Transmission technology:
cable

Frequency range:
1,200-20,000 Hz

Order no.: 1001105

CDX1-1745/16

PA horn driver, 40 W, 16 Ω

Order no.: 1001104

CDX1-1745/8

PA horn driver, 40 W, 8 Ω

New

Impedance (Z):
8 Ω

Transmission technology:
cable

Frequency range:
1,200-20,000 Hz

Order no.: 1001104

CDX1-1745/8

PA horn driver, 40 W, 8 Ω

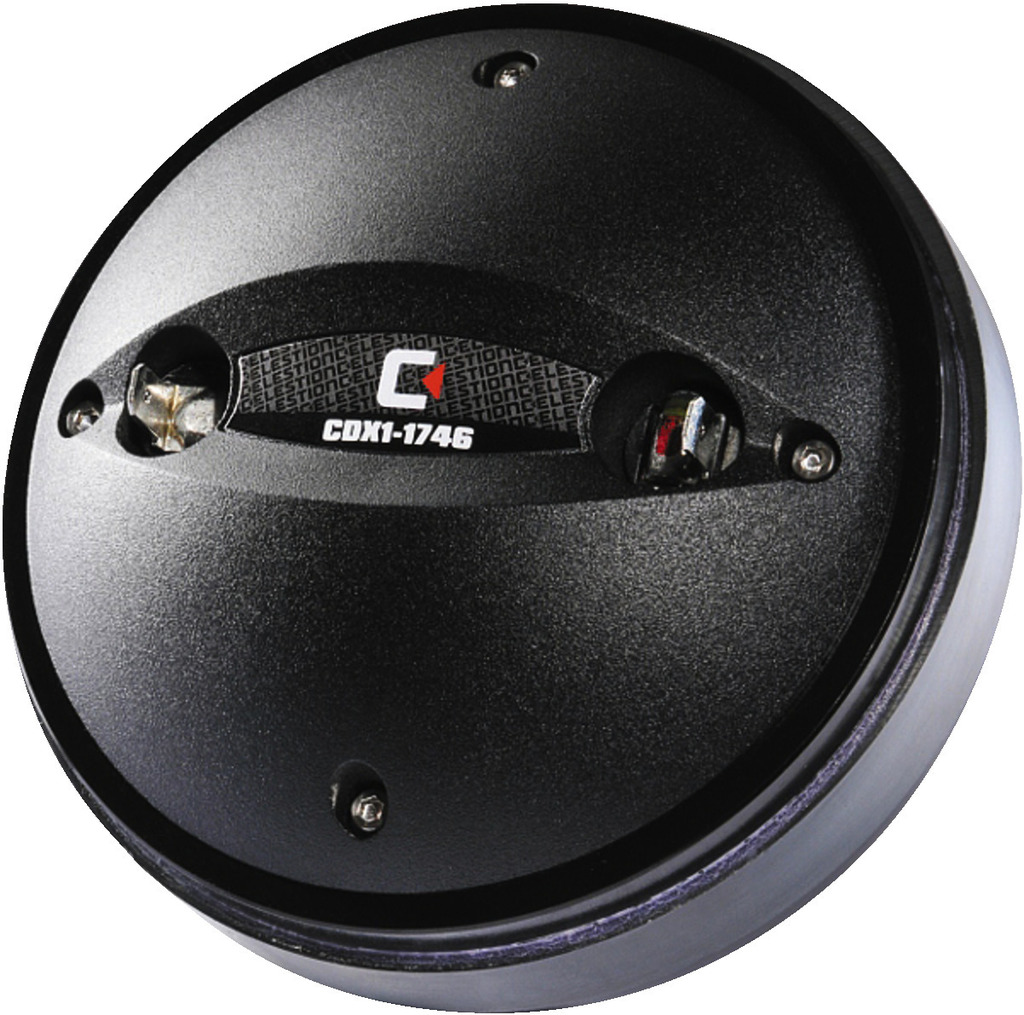

Order no.: 1001077

CDX1-1746/8

PA horn driver, 40 W, 8 Ω

New

Impedance (Z):
8 Ω

Transmission technology:
cable

Frequency range:
1,200-20,000 Hz

Order no.: 1001077

CDX1-1746/8

PA horn driver, 40 W, 8 Ω

Order no.: 1001078

CDX1-1747/8

PA horn driver, 60 W, 8 Ω

New

Impedance (Z):
8 Ω

Transmission technology:
cable

Frequency range:
1,000-20,000 Hz

Order no.: 1001078

CDX1-1747/8

PA horn driver, 60 W, 8 Ω
