Order no.: 0120470

MRH-83

P278

Order no.: 0120470

MRH-83

PA mid-high range horn for MRD-80

35 mm (1⅜") standard thread
Plastic
CD design (constant directivity)
Effective throat: 25 mm (1")

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

continue

About

PA mid-high range horn for MRD-80

35 mm (1⅜") standard thread
Plastic
CD design (constant directivity)
Effective throat: 25 mm (1")

Manufacturer information:

MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Germany
info@monacor.com

Specifications

Description	mid-high range horn
Material	plastic
Frequency range	1,800-18,000 Hz
Crossover frequency	1,800 Hz
Radiation angle (vert./hor.)	60°/90°
Radiation angle, vertical	60°
Radiation angle, horizontal	90°

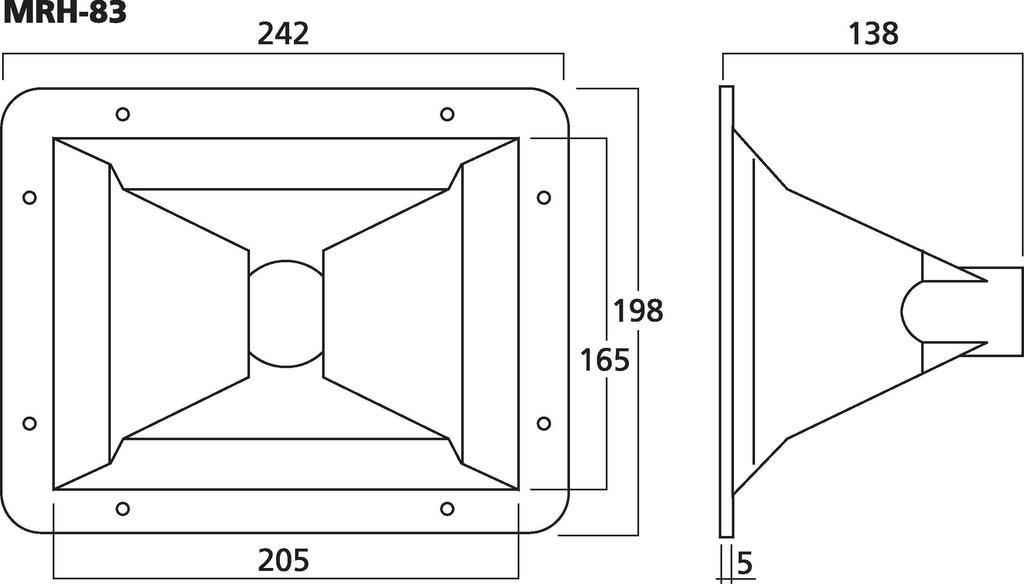

Mounting cutout	205 x 165 mm
Mounting depth	135 mm
Dimensions	242 x 198 x 138 mm
Height	198 mm
Width	242 mm
Depth	138 mm
Weight	270 g

EAN code	4007754172027
Net weight	0.27 kg

Downloads

Accessories for MRH-83

Order no.: 0105300

MRD-34PA

PA horn driver, 35 W, 8 Ω

Impedance (Z):
8 Ω

Transmission technology:
cable

Frequency range:
fx-20,000 Hz

Order no.: 0105300

MRD-34PA

PA horn driver, 35 W, 8 Ω

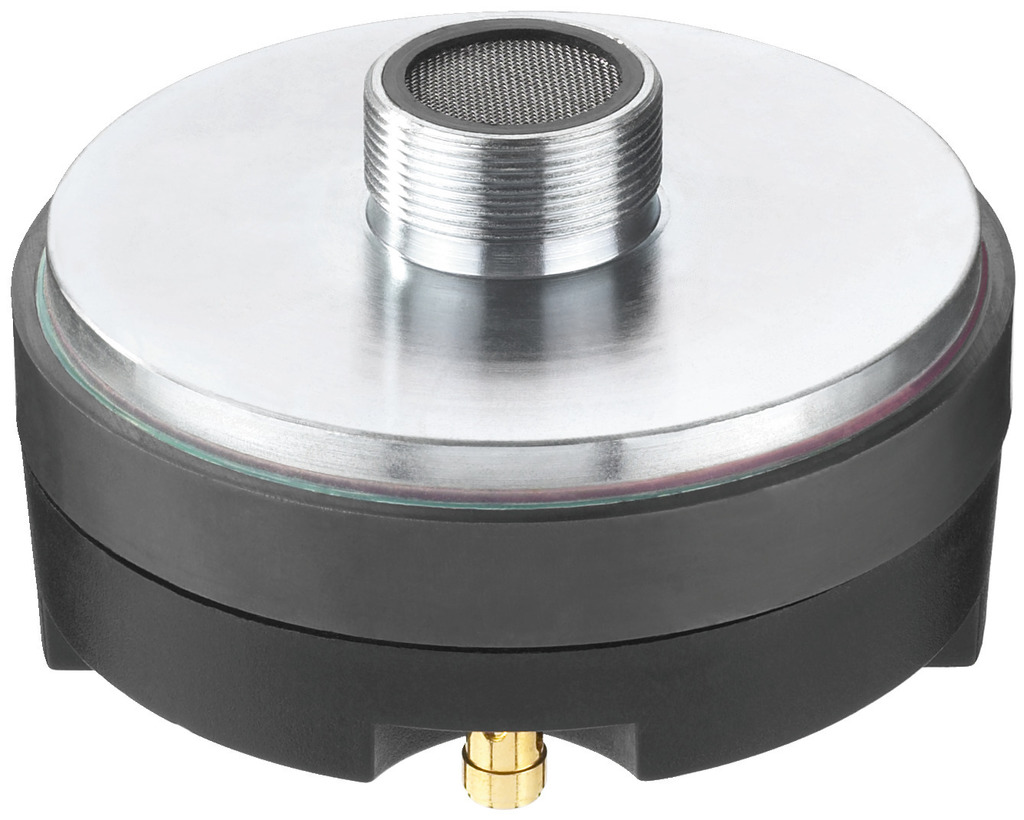

Order no.: 0105310

MRD-44PA

PA horn driver, 45 W, 8 Ω

Impedance (Z):
8 Ω

Transmission technology:
cable

Frequency range:
fx-20,000 Hz

Order no.: 0105310

MRD-44PA

PA horn driver, 45 W, 8 Ω
